BEP CZone 80-911-0031-00 NMEA 2000 Male Resistor

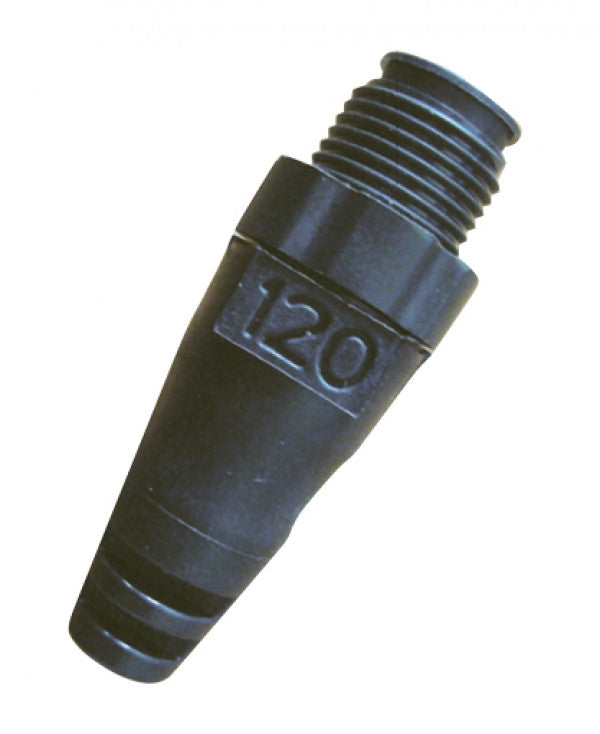

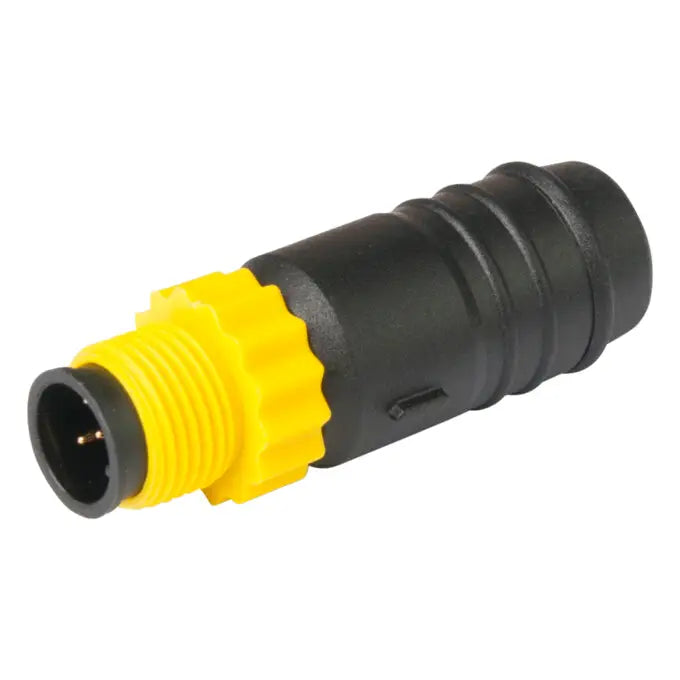

BEP / CZone NMEA 2000 Male Terminating Resistor

The BEP / CZone 80-911-0031-00 is an essential 120 Ω NMEA 2000 male terminating resistor engineered to complete the physical layer of an NMEA 2000 (IEC 61162-3 / DeviceNet Micro-C) marine CAN bus network backbone. Every NMEA 2000 network requires exactly two 120 Ω" terminators—one male and one female—installed at the extreme physical ends of the backbone trunk to absorb signal reflections, prevent standing wave interference, and maintain system-wide 60 Ω nominal bus impedance.

Housed in a rugged, overmolded polymer shell with an integrated metal coupling nut, the 80-911-0031-00 provides IP67 waterproof protection against continuous salt spray, bilge moisture, and high-vibration marine environments. Its standard 5-pin Micro-C male connector plug mates seamlessly with standard NMEA 2000 T-connectors, backbone drop tees, and multi-port drop boxes across BEP, CZone, Lowrance, Simrad, Garmin, and Raymarine marine electronics networks.

Use at either end of the NMEA backbone to complete the network. Each network must have a male and female terminator.
