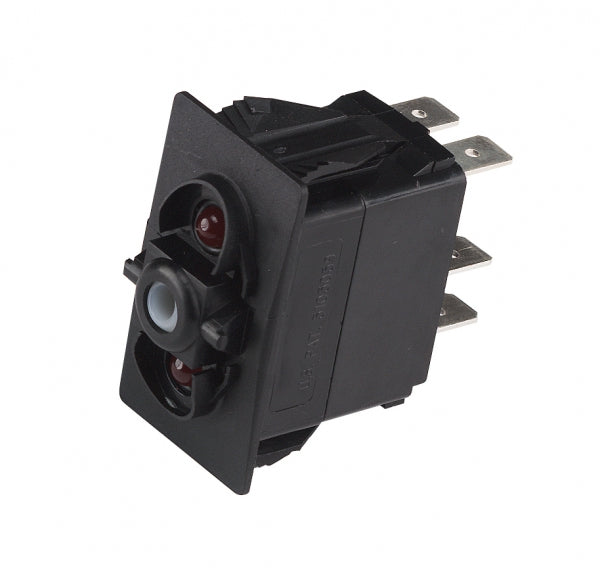

CZone 80-911-0039-00 Carling ON/OFF/ON Red LED Switch

CZone / Carling-Style ON/OFF/ON Custom Rocker Switch (Red LED Illumination)

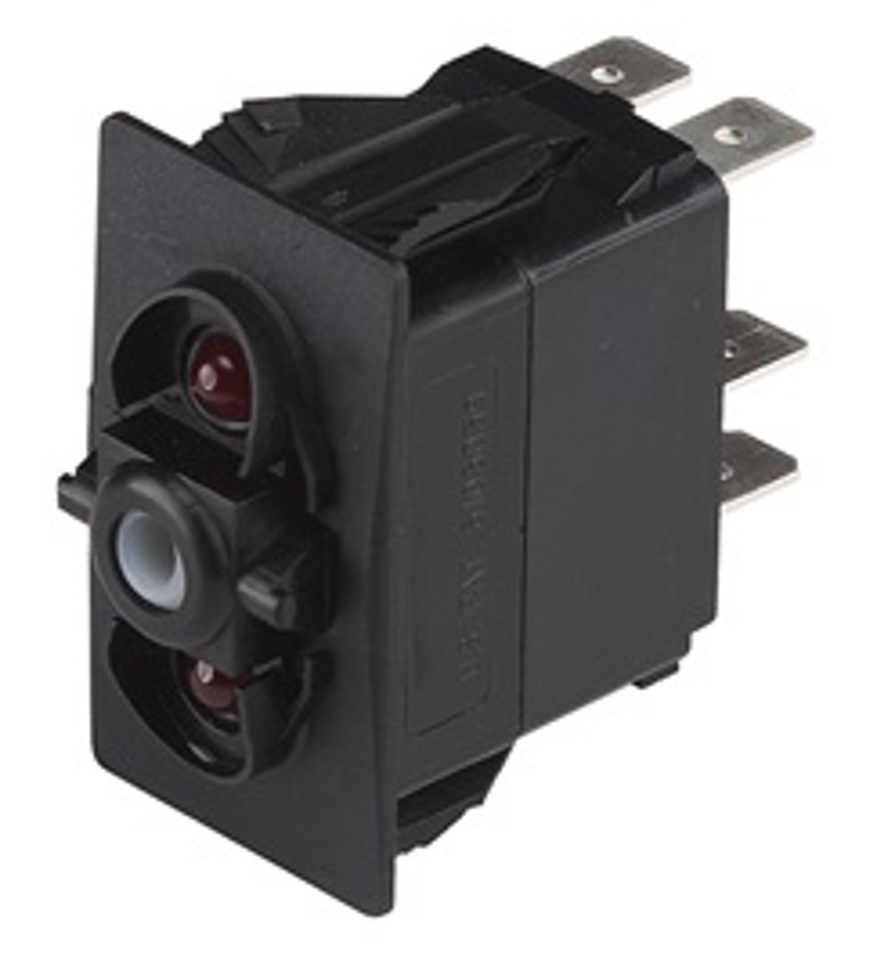

The CZone 80-911-0039-00 is a marine-grade Carling V-Series style ON/OFF/ON 3-position double-throw rocker switch featuring integrated Red LED backlighting and system-in-operation status lighting. Engineered specifically for direct connection into CZone digital switching hardware—such as the Switch Control Interface (SCI) or Combination Output Interface (COI)—it functions as a physical input actuator for dual-mode circuit switching (e.g., NAV/OFF/ANC light modes, MANUAL/OFF/AUTO pump controls, or dual-speed blowers).

Built upon Carling Technologies' Contura V-Series switch body platform, the 80-911-0039-00 incorporates internal low-power LED circuit drivers configured for low-voltage signal logic. It fits standard industry rectangular cutout dimensions and features IP66/IP67 front-panel splash-proof sealing, protecting internal contacts against sea spray, washdowns, and UV degradation.

Key Features

• Dual-State ON/OFF/ON Actuation: Provides three-position (SPDT/DPDT logic) control to toggle between two distinct active circuit modes or a central OFF state.

• Integrated Red LED Illumination: Red LED provides night backlighting and visual confirmation of system-in-operation status.

• Industry-Standard Carling V-Series Cutout: Fits standard rectangular panel cutouts (1.45 in * 0.83 in / 36.8 mm * 21.1 mm) for easy retrofits.

• IP66/IP67 Front-Panel Water Resistance: Multi-gasket internal seal protects against direct water jets, humidity, and salt spray exposure.

• Plug-and-Play Digital Harness Mating: Plugs directly into standard CZone SCI input harnesses without requiring external drop resistors.
