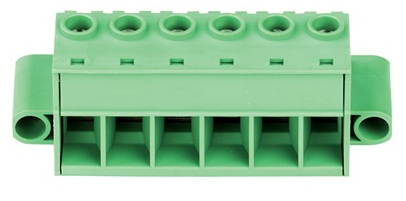

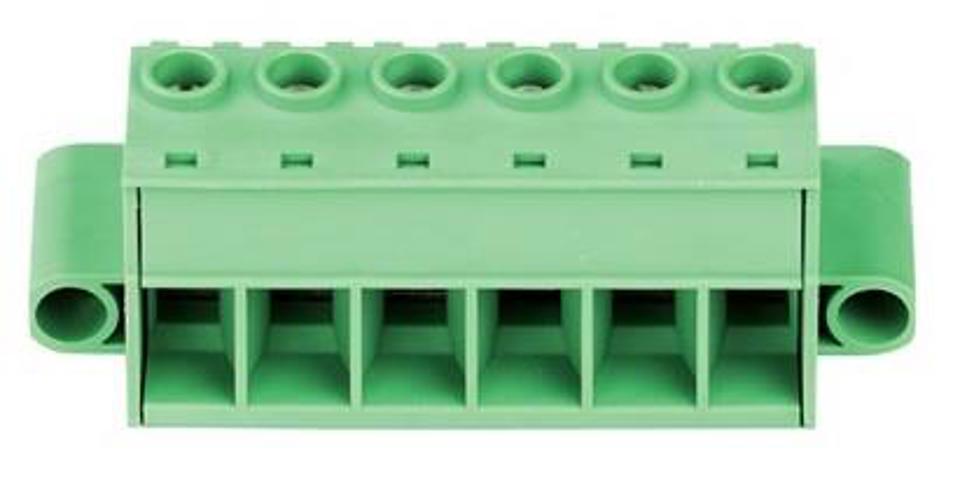

BEP 80-911-0041-00 CZone 6W Output Interface Plug Terminal Block

BEP / CZone 6-Way Output Interface Plug Terminal Block (10.16mm Pitch)

The BEP / CZone 80-911-0041-00 is a commercial-grade 6-way heavy-duty pluggable screw terminal block connector designed specifically as a replacement or installation connection plug for CZone Output Interface (OI) digital switching modules. Featuring a heavy-duty 10.16 mm pin-to-pin pitch, this terminal block is engineered to safely handle high DC loads across six discrete output channels.

Constructed from flame-retardant green polyamide (PA66) with tin-plated copper alloy contact cages and stainless steel wire strain screws, the plug provides solid wire retention and vibration-proof performance aboard marine vessels and commercial vehicles. Its pluggable mating architecture allows pre-wiring of the output harness and quick module replacement without disconnecting individual load wires.

Key Features

• Direct CZone Output Interface Fitment: Engineered to mate cleanly with the high-current output header pins on CZone OI modules.

• Heavy-Duty 10.16mm Pin Pitch: Wide spacing between conductor channels prevents voltage bridging and shorting under high amperage draws.

• Pluggable Screw-Clamp Design: Wire leads screw down securely into internal rising cage clamps, allowing simple disconnect of the entire 6-channel block.

• High Vibration Resistance: Steel strain-relief screws resist backing out under continuous hull slamming and engine vibration.

• Marine-Grade Tin-Plated Contacts: Tin-plated copper contacts prevent pin oxidation and maintain low electrical resistance.
