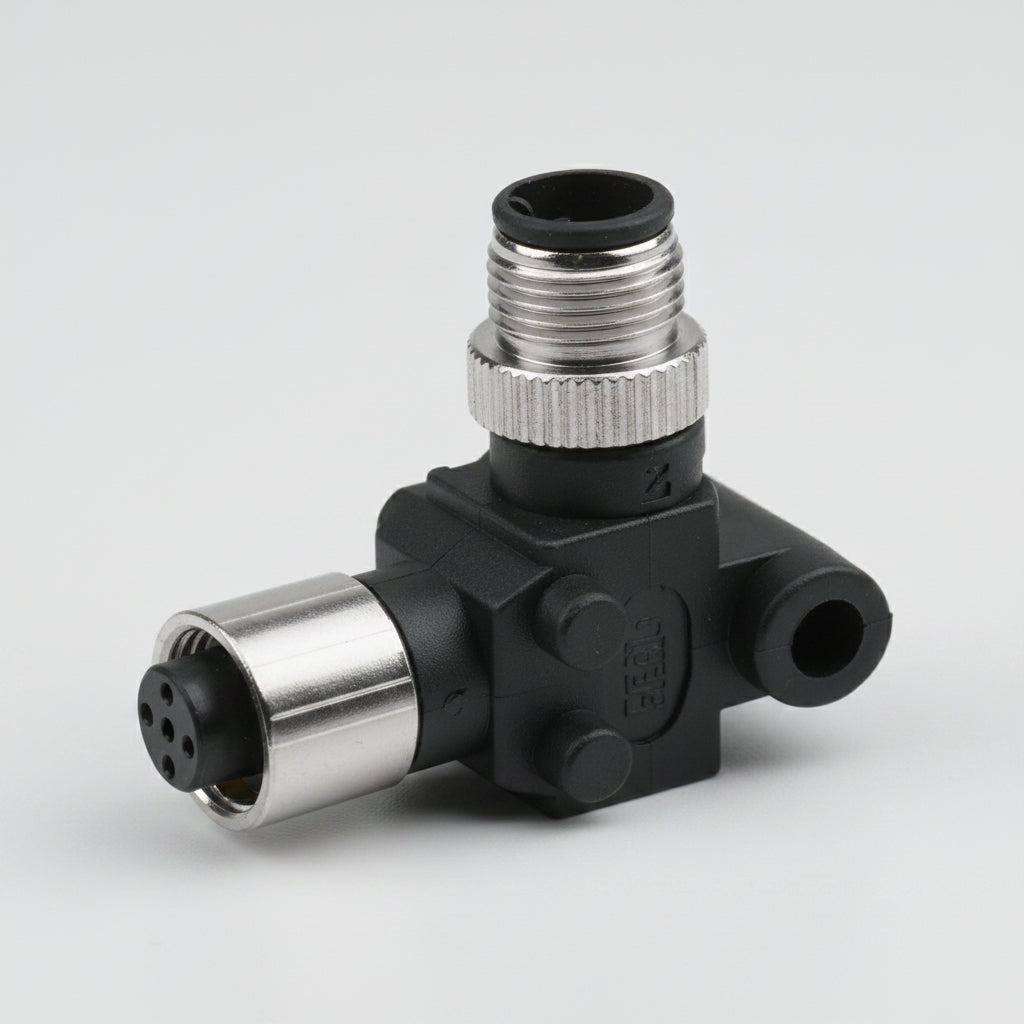

BEP CZone 80-911-0046-00 NMEA 2000 90 Degree Elbow

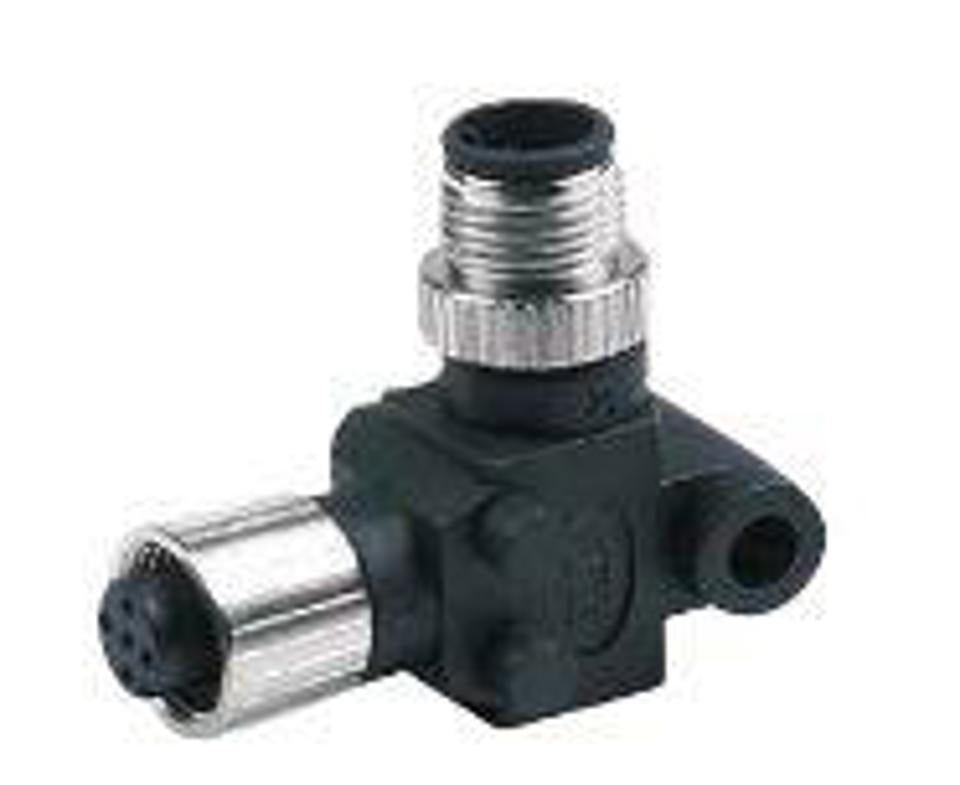

BEP / CZone NMEA 2000 90° Right-Angle Elbow Connector

The BEP / CZone 80-911-0046-00 (also cross-cataloged under Ancor / Navico Group networking lines) is an essential 90° right-angle Micro-C elbow connector engineered for NMEA 2000 and CZone CAN-bus backbones. Designed to relieve cable strain and solve routing bottlenecks in tight space constraints—such as behind shallow helm MFD displays, inside compact console trunks, or within digital switching enclosures—it changes the cable drop or backbone direction by 90° without exceeding minimum bend radiuses.

Constructed from rugged, UV-resistant glass-filled nylon with gold-plated brass contact pins and nickel-plated brass coupling nuts, the 80-911-0046-00 maintains an IP67 waterproof rating when fully mated and torqued. Featuring a male Micro-C plug on one end and a female Micro-C socket on the other, it provides a universal, low-resistance 50 Ω connection across all standard NMEA 2000 Micro-C tee connectors, backbone cables, and CZone module interface ports.

Key Features

• Strain-Relief Right-Angle Profile: Routes NMEA 2000 cables at a 90° angle to prevent sharp bend radiuses and wire fatigue behind displays.

• Universal Micro-C Standard: Fully compliant with all NMEA 2000 Micro-C marine networks, CZone backbones, and MFD drop lines.

• Gold-Plated Brass Contacts: Ensures maximum electrical conductivity and signal integrity across differential CAN-bus lines.

• IP67 Environmental Sealing: Internal O-ring seals protect pin contacts against saltwater ingress and corrosion when mated.

• Ruggedized Metal Coupling Rings: Heavy-duty threaded collars secure the connection against engine vibration and mechanical shock.
