BEP CZone 80-911-0060-00 Push Button Momentary 3.3V Red LED

BEP / CZone Stainless Steel Momentary Push-Button Switch (Red LED Ring)

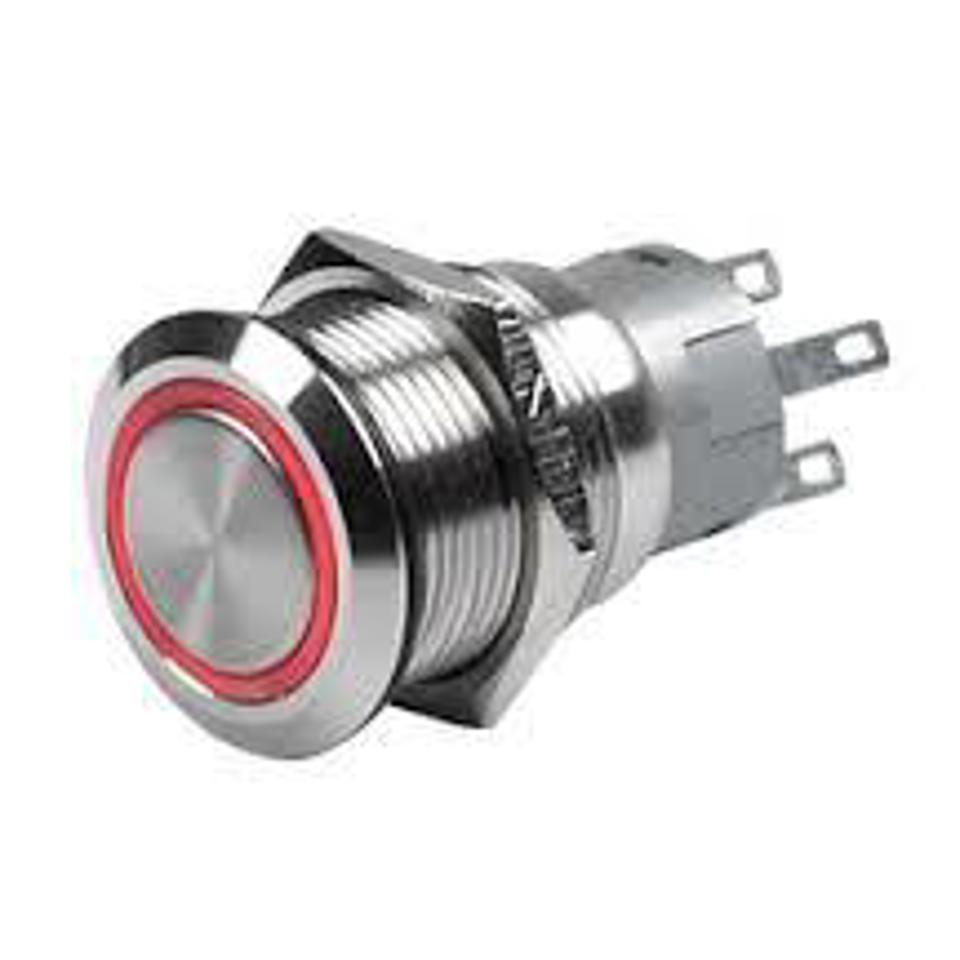

The BEP / CZone 80-911-0060-00 is a marine-grade momentary (ON)/OFF stainless steel push-button switch featuring an integrated 3.3V DC Red LED halo ring. Specifically engineered for interface with CZone digital switching modules (such as the Contact 6 PLUS, Combination Output Interface, and Switch Control Modules), it delivers a crisp tactile feedback signal to trigger programmed digital switching modes, horn functions, engine start/stop circuits, or temporary pump overrides.

Housed in a precision-machined 316 stainless steel body with an IP67 waterproof face rating, the 80-911-0060-00 withstands continuous exposure to marine salt spray, UV radiation, and deck washdowns. Its 3.3V DC LED illumination circuit operates directly off logic-level voltage outputs provided by CZone control modules, eliminating the need for external voltage-dropping resistors when connected to digital control networks.

Key Features

• CZone Digital Switching Native Compatibility: 3.3V LED drive matches standard CZone digital module output pins without external resistors.

• 316 Marine-Grade Stainless Steel: High-polish 316 stainless steel actuator and bezel resist pitting and atmospheric marine corrosion.

• IP67 Waterproof Face Seal: Front-panel sealing gasket keeps water out when mounted on open dashboards, flybridges, or helm consoles.

• Tactile Momentary Action: Provides clear physical feedback upon actuation for reliable system triggering.

• Vibrant Red Ring Illumination: Red LED halo ring delivers night-vision-friendly status feedback and switch location in low-light conditions.

Specifications
