CZone 80-911-0062-00 3.3V Blue LED Momentary Push Button

CZone 3.3V Stainless Steel Momentary Push-Button Switch (Blue LED Ring)

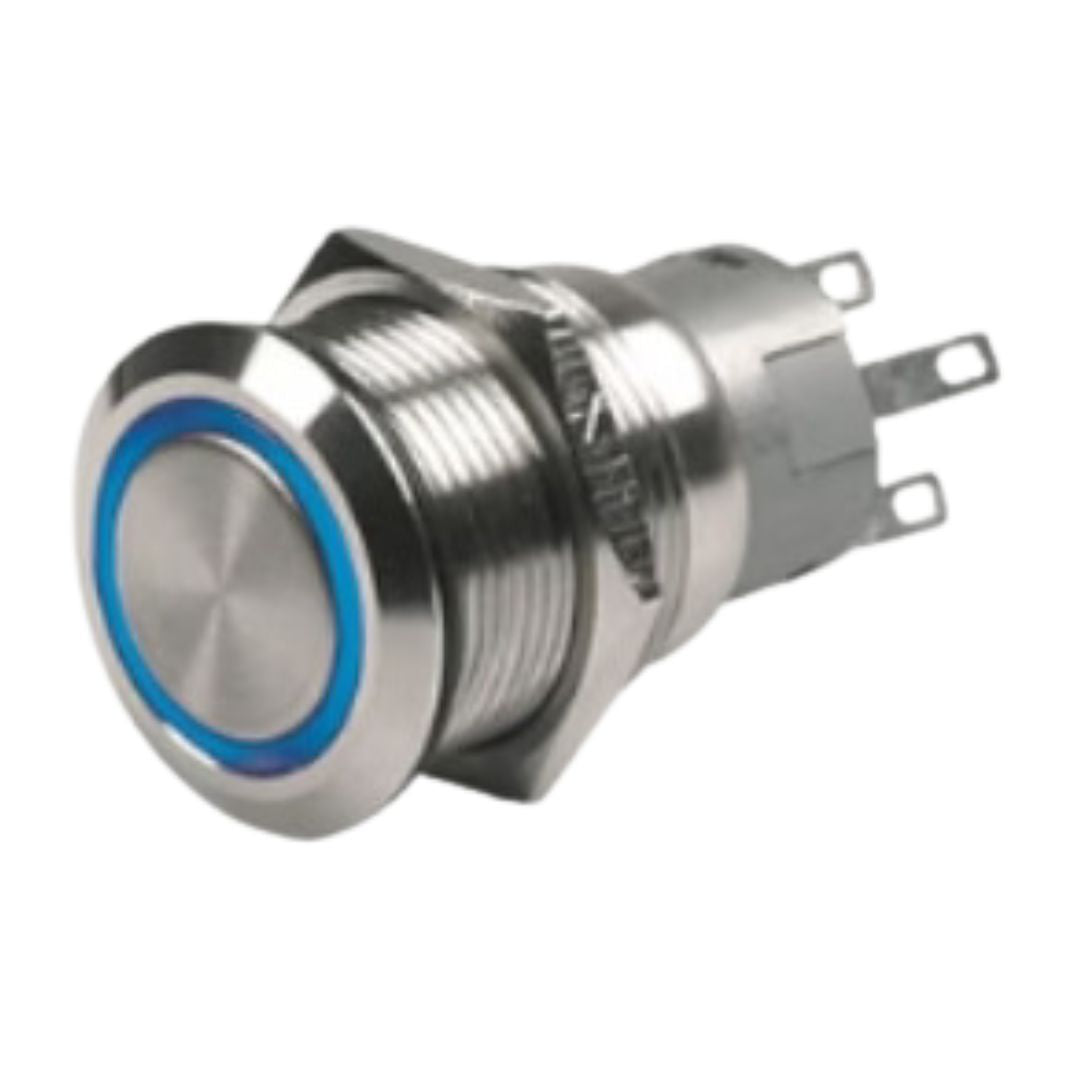

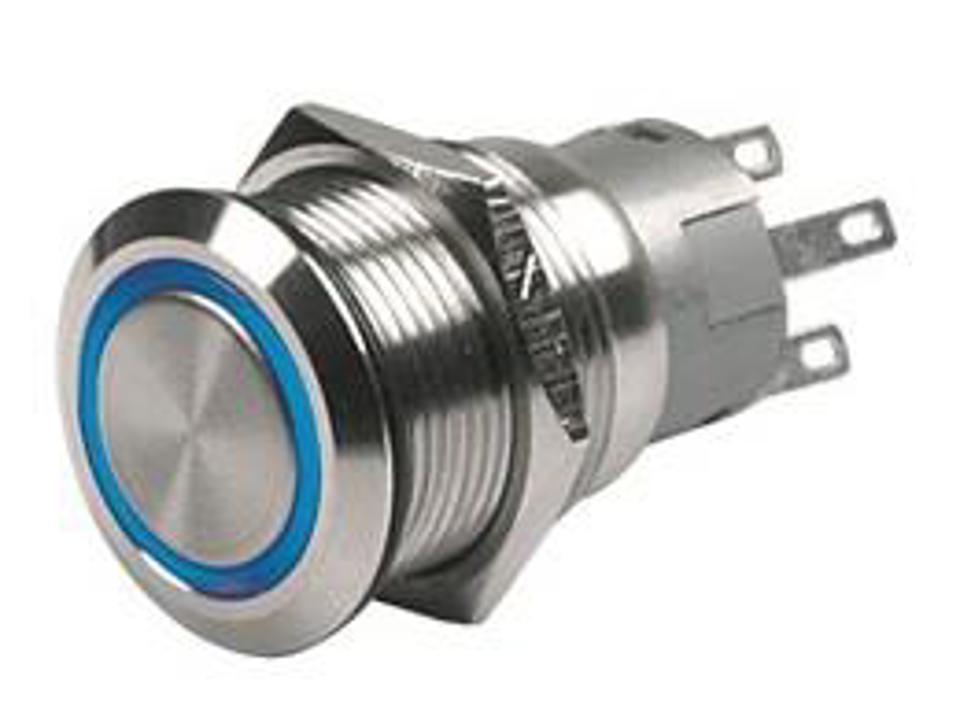

The BEP / CZone 80-911-0062-00 is a specialized, 3.3V DC low-voltage momentary (ON)/OFF stainless steel push-button switch featuring an integrated Blue LED halo ring. Designed exclusively for integration into CZone digital switching networks—such as the Switch Control Interface (SCI) or Combination Output Interface (COI)—it provides a clean, tactile control input for triggering digital modes, horns, or logic-level circuit states.

Constructed with 316-grade stainless steel components and rated at IP67 for total waterproof ingress protection, this switch is built to withstand harsh marine exposure on dashboards, flybridges, and open helm consoles. Operating specifically on CZone's 3.3V logic supply voltage, the integrated Blue LED ring serves as a direct status indicator to signal active mode states or circuit engagement without requiring external dropping resistors.

Key Features

• Dedicated 3.3V CZone Logic Interface: Operating voltage directly matches CZone Switch Control Interface (SCI) signal inputs without external resistors.

• IP67 Sealed Stainless Steel Body: 316 stainless steel housing with front rubber gasket provides complete protection against water spray, salt vapor, and washdowns.

• Integrated Blue LED Halo Ring: Provides clean visual feedback for circuit status or system state confirmation in low-light environments.

• Standard 19 mm Panel Cutout: Mounts cleanly into standard helm panels and dash cutouts via rear securing locknut.

• Plug-and-Play Digital Integration: Connects seamlessly into CZone switch interface wire harnesses to trigger pre-programmed digital control modes.

Specifications
