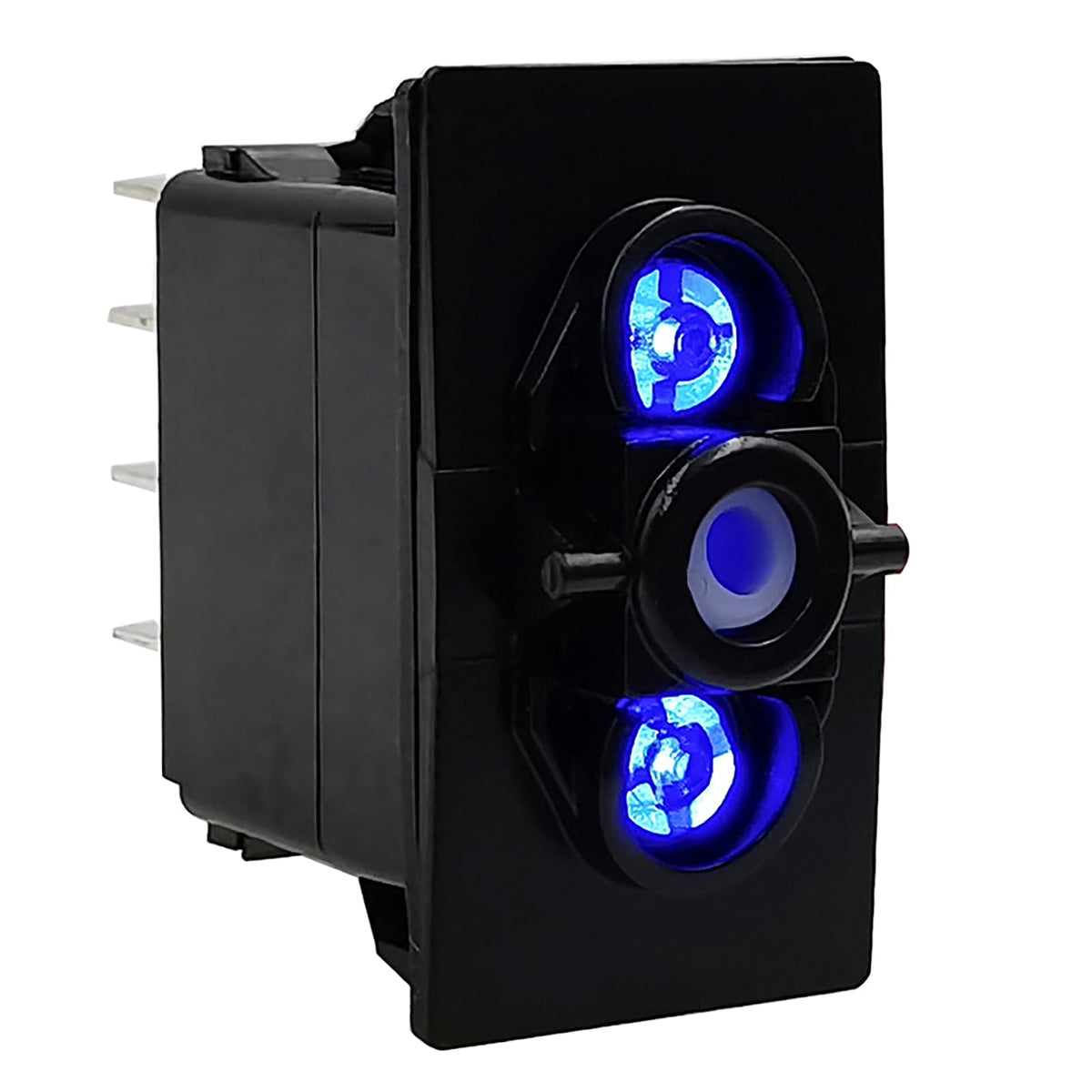

BEP CZone 80-911-0071-00 Momentary Rocker Switch

BEP CZone Carling Rocker Switch — Momentary (ON) / OFF / (ON) Blue LED

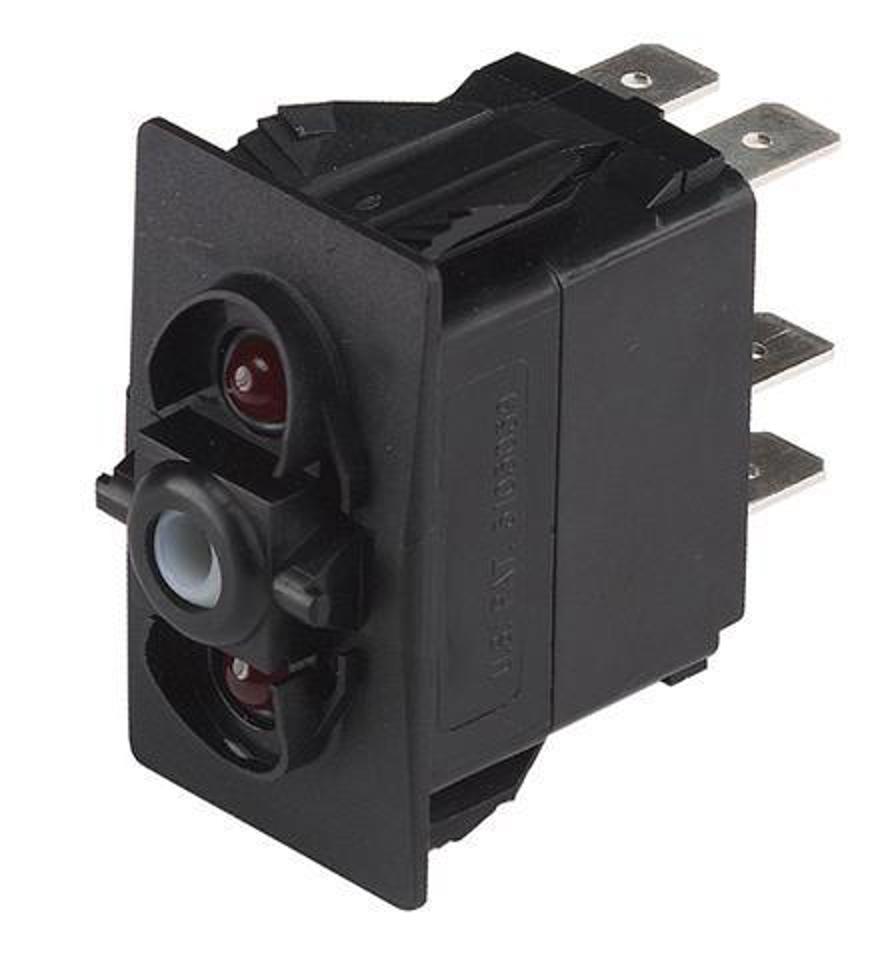

The BEP / CZone 80-911-0071-00 is an industrial-grade Carling V-Series Contura style rocker switch designed for direct integration into CZone digital switching modules (such as the Signal Interface, Output Interface, and Switch Control modules) or standard hardwired DC control circuits. Configured with a double-momentary (ON) / OFF / (ON) contact arrangement, the switch automatically springs back to the central OFF position when released, making it ideal for trim tabs, engine tilt/trim, hatch lifters, windlasses, and digital switching step-up/step-down overrides.

Engineered specifically for harsh marine and mobile environments, the switch features integrated blue LED status backlighting to ensure high visibility during night operations. Constructed with nickel-plated brass contacts and a weather-sealed thermoplastic housing, it delivers an IP66 ingress protection rating when front-panel mounted with standard sealing gaskets.

Key Features

• Dual Momentary Action: Spring-return (ON)/OFF/(ON) configuration prevents accidental continuous energization of electric motors or trim actuators.

• Blue LED Backlighting: Low-draw LED illumination provides clear visual feedback and circuit legend backlighting in low-light helms.

• CZone Interface Compatible: Designed to wire directly into CZone Digital Switch Breakout/Input modules or operate as a standalone DC control switch.

• IP66 Weatherproof Seal: Front-panel sealing protects internal contacts against dust, heavy seas, and direct pressure washdown.

• Standard Carling Cutout: Drops directly into standard 1.45" * 0.83" (36.8 mm * 21.0 mm) marine panel cutouts.
