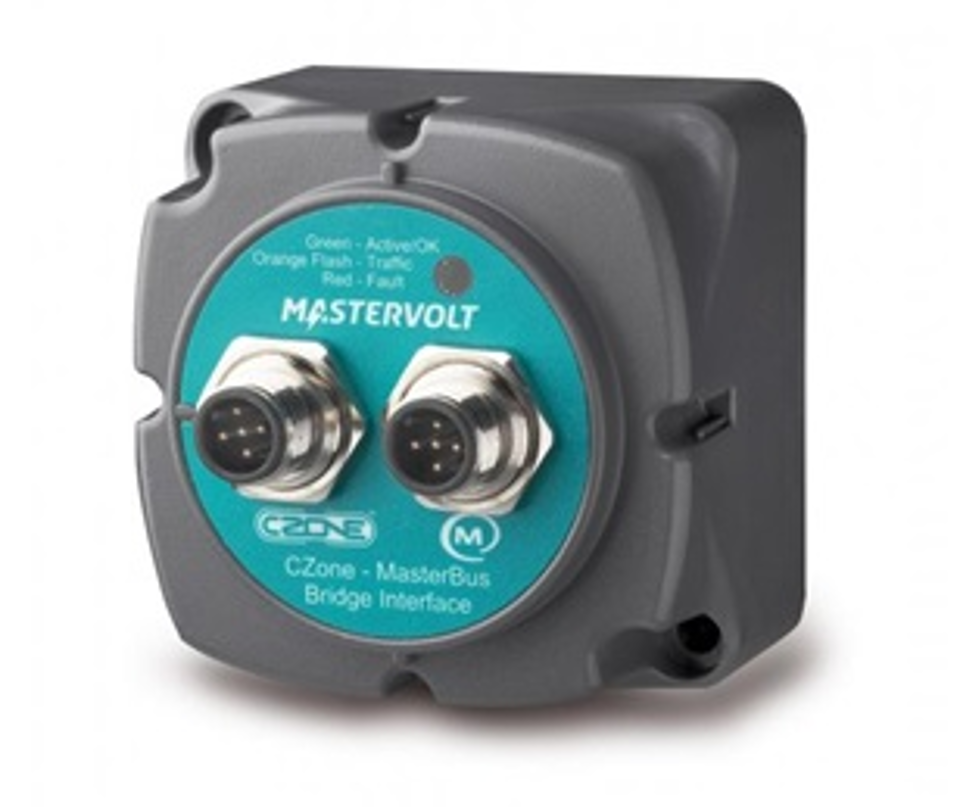

CZone 80-911-0072-00 MasterBus Bridge Interface

CZone / BEP MasterBus Bridge Interface Module

The CZone 80-911-0072-00 is an intelligent protocol conversion bridge designed to integrate Mastervolt power systems with CZone and NMEA 2000 digital switching networks. By establishing a seamless bidirectional gateway between the proprietary MasterBus CAN-bus protocol and the CZone network, this module allows power management hardware—including Mastervolt ChargeMaster chargers, CombiMaster inverter/chargers, and MasterShunts—to share full telemetry, operational status, and control logic with CZone displays and compatible Multi-Function Displays (MFDs).

Housed in a compact, water-resistant IPX5 enclosure, the bridge translates complex power data into standard CZone / NMEA 2000 network PGNs. This enables automated system behavior, such as triggering CZone load-shedding modes or generator start sequences based on real-time MasterBus battery state-of-charge (SOC) or AC input thresholds. The module simplifies system architecture by requiring no external setup software for basic operation, deriving its logic directly from the CZone network configuration file.

• Control Mastervolt inverters and chargers from CZone displays and switches
• Control of MasterBus output devices (turn lights, pumps,etc. on/off)
• Control of CZone output devices (turn lights, pumps, etc. on/off) via MasterBus displays and switches
• Display CZone acquired systems information such as tank and power levels on Masterbus displays
• Display MasterBus acquired systems information such as tank and power levels on CZone displays
• Transfers alarms between both systems
• 2.75"x2.75"x2" (69x69x50)
