CZone 80-911-0086-01 1m SCI RJ45 Push-Button Cable

CZone / BEP 1m SCI/DSB RJ45 Push-Button Throw A Harness Cable

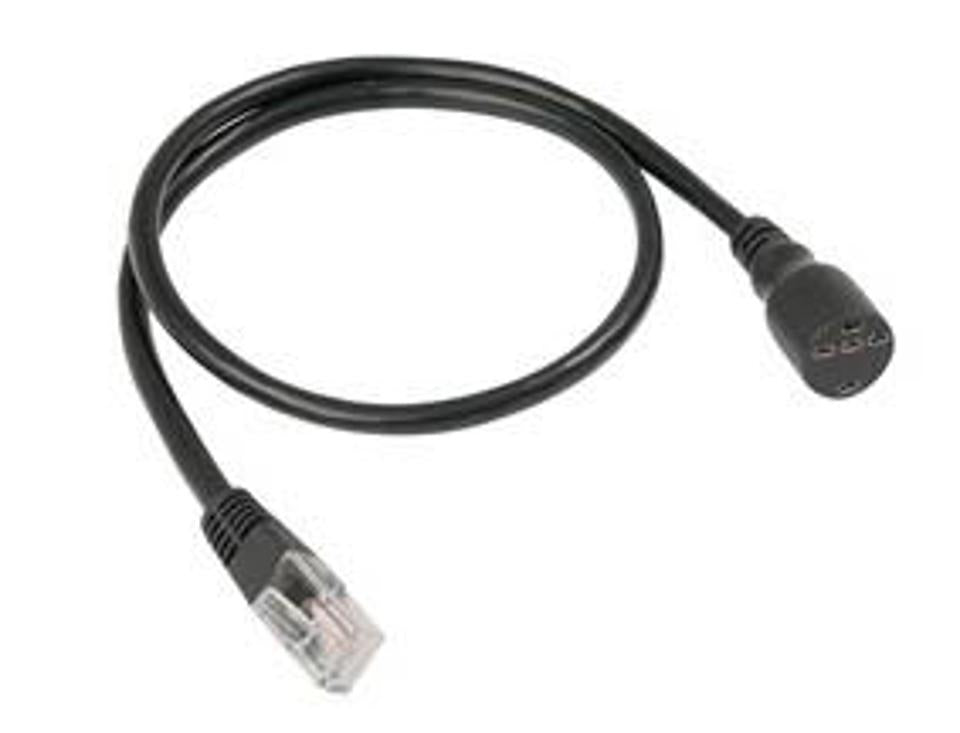

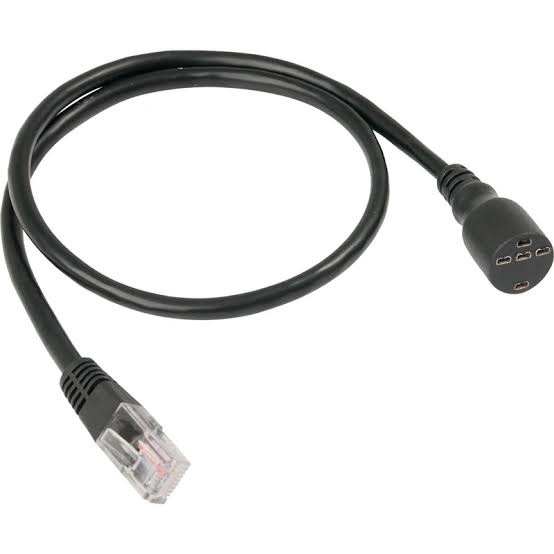

The CZone 80-911-0086-01 is a 1 meter (3.3 ft) pre-wired harness assembly designed to interface momentary push-button switches directly with CZone Signal Interface (SCI) and Digital Switch Breakout (DSB) modules. Built to simplify dashboard console assembly and marine OEM helm wiring, this cable assembly features a pre-molded RJ45 plug on one end and color-coded fly-lead conductors on the other.

Configured with "Throw A" pinout wiring logic, this cable channels switch inputs (such as tactile push-buttons, LED ring indicators, or momentary controls) straight into the SCI's input sensing ports. The 1m length provides appropriate slack for console-to-interface connections while minimizing wire clutter. Supplied in bulk packaging (-01), it is optimized for vessel builders and panel fabricators standardizing CZone digital switching layouts.

Key Features

• Direct Module Integration: Plugs into the RJ45 accessory port of CZone SCI and DSB modules for plug-and-play input connections.

• Throw A Pinout Configuration: Factory-wired to support standard "Throw A" push-button logic and status feedback loops.

• Tinned Marine-Grade Copper: Multistrand tinned conductors resist corrosion, vibration fatigue, and oxidation in humid marine helm spaces.

• $1\text{m}$ Optimized Length: Provides direct reach between console-mounted push-buttons and localized breakout modules.

• Molded Strain Relief RJ45 Boot: Heavy-duty connector casing protects against wire pull-out and terminal fatigue during installation.
