BEP CZone 80-911-0088-01 Signal Interface (SCI)

CZone Signal Interface (SCI) Module — 5m RJ45 / PB Throw A (Bulk)

The BEP CZone 80-911-0088-01 is a compact Signal Interface (SCI) module engineered for CZone digital switching and vessel automation networks. The SCI transfers low-voltage analog and digital signals from traditional vessel sensors and switches—such as bilge pump floats, fuel/water tank senders, engine temperature sensors, and push-button switches—onto the NMEA 2000 CAN-bus backbone for central display and automated circuit control.

This specific variant comes pre-configured for Push Button (PB) Throw A switch applications and includes a factory 5-meter RJ45 drop cable for direct connection to CZone network backbones and interfaces. Encased in a rugged IPX5 water-resistant housing, the SCI simplifies wiring by replacing complex point-to-point analog wiring harnesses with a single localized multiplexing hub.

Key Features

• Analog & Digital Sensor Multiplexing: Converts tank levels, temperature, pressure, and switch inputs into digital NMEA 2000 network telemetry.

• Push Button Throw A Pre-Configuration: Optimized for direct integration with marine momentary and latching push-button helm controls.

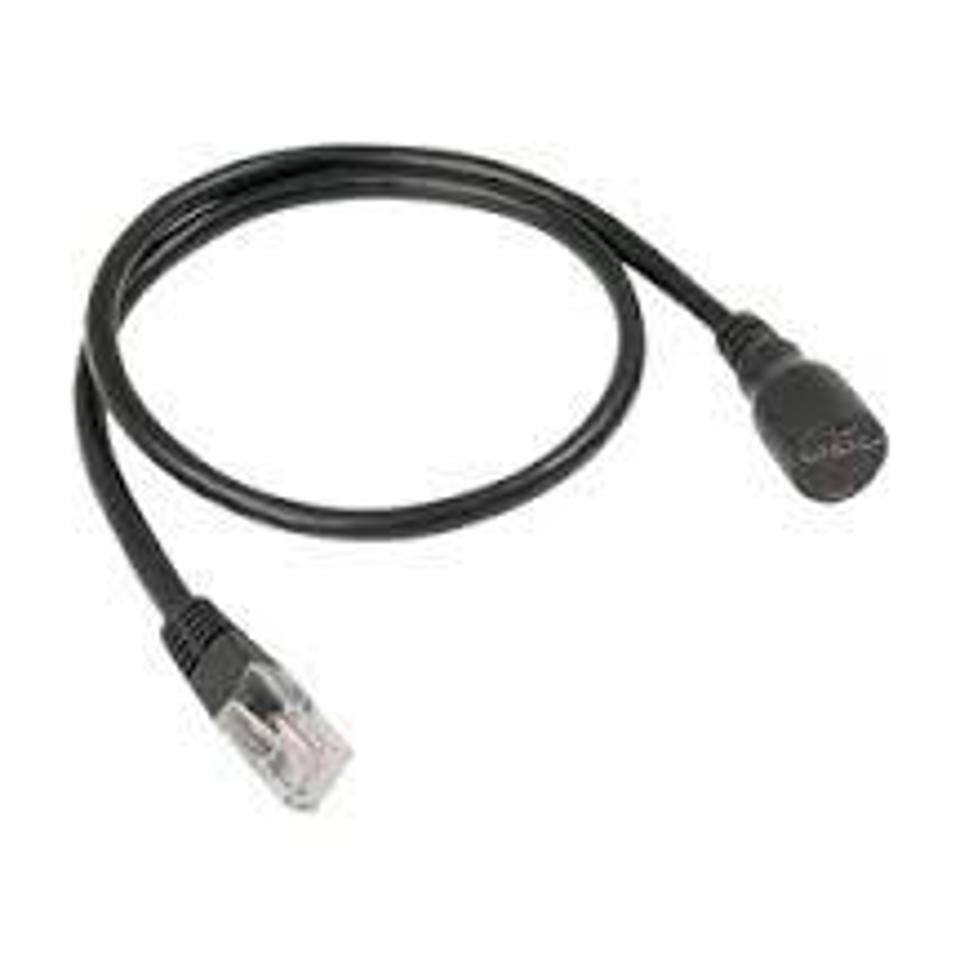

• Included 5m RJ45 Cable: Factory-fitted 5-meter network cable allows flexible placement away from tight helm panels or sensor banks.

• Low-Power CAN-Bus Communication: Operates natively within NMEA 2000 / CZone networks with minimal power consumption.

• Compact Marine-Grade Enclosure: Space-saving footprint designed for mounting in helm consoles, equipment bays, or engine rooms.
