BEP CZone 80-911-0090-00 Wireless Interface

BEP CZone Wireless Interface (80-911-0090-00)

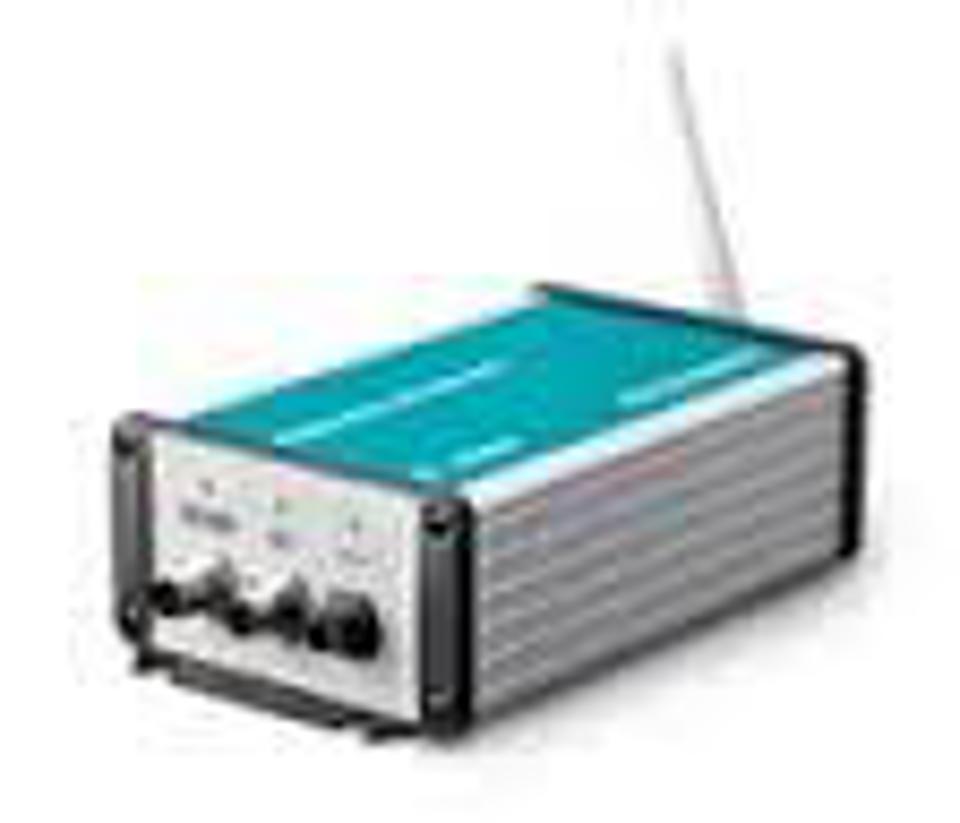

The BEP CZone 80-911-0090-00 is a multi-network Wireless Interface (WI) Hub designed to connect mobile devices (such as iPads, smartphones, and tablets) directly to onboard CZone® and MasterBus digital switching and power management networks. Functioning as a secure Wi-Fi access point or bridging directly into existing local area networks (LANs), the WI allows operators to remotely monitor and control electrical circuits, battery chargers, inverters, tank levels, and system alarms from anywhere on the vessel.

The Wireless Interface supports up to three simultaneous tablet connections while providing customizable user interfaces to match unique vessel layouts and modes. Equipped with an Ethernet port for integration with onboard routers, a USB port for configuration uploads, and an external Wi-Fi antenna, it delivers robust wireless connectivity packaged within an IP54 weather-resistant enclosure.

• User-friendly homepage to monitor and control onboard circuits
• Integrated control and monitoring of power products including battery chargers and inverters
• Monitor AC/DC power and batteries
• Monitor tank levels
• Receive visible alarms
• Connect a maximum of three devices simultaneously
• Ability to personalize homepage to display favorite circuits, modes & monitoring
• Add your own layout
• Connects to CZone or MasterBus networks for control and monitoring of systems
• The Wireless Interface acts as the hub between MasterBus/CZone networks and local WiFi devices
• NOTE: WI MasterBus connector required for MasterBus connection
• Ethernet connection to connect to other LANs
• USB connection for configuration updates
• Tested to FCC, CE, EMC
• Power cable and aerial included
