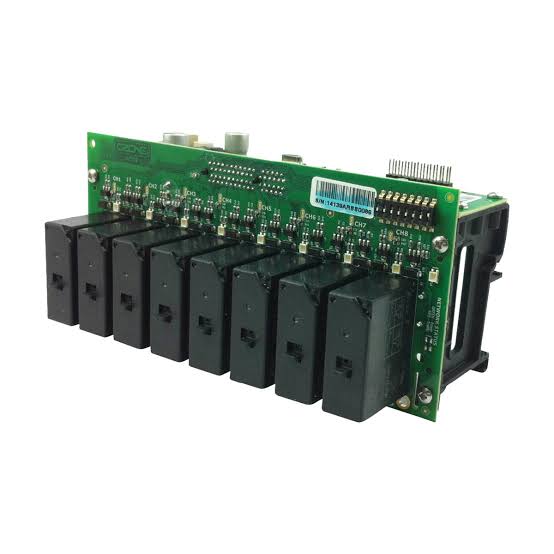

CZone 80-911-0096-00 ACOI DIN Mount PCA Kit

CZone ACOI DIN Mount PCA Kit - USA Configuration (80-911-0096-00)

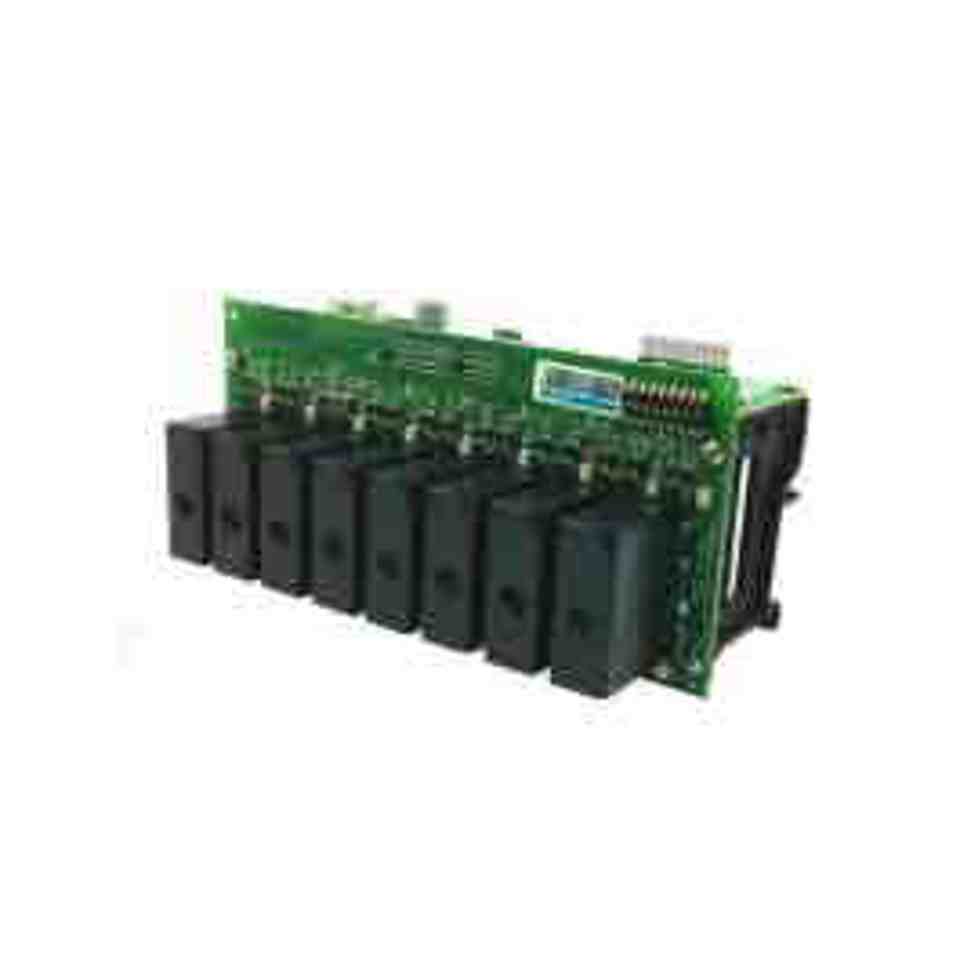

The CZone 80-911-0096-00 is a specialized Alternating Current Output Interface (ACOI) Printed Circuit Assembly (PCA) Kit designed for DIN-rail mounting within marine and mobile electrical distribution panels. Part of the CZone digital control and monitoring network, the ACOI simplifies complex AC circuit management by automatically switching and monitoring multiple AC sources—such as shore power, generators, and inverters—to prevent system overload and reverse polarity conditions.

Configured specifically for US AC power standards (120V AC / 60Hz split-phase/single-phase), this PCA kit includes the main control logic board with integrated black tail wiring harnesses. It communicates natively via NMEA 2000 / CAN bus, allowing full remote monitoring, automatic load shedding, and digital switching control from CZone displays, multi-function displays (MFDs), and mobile interfaces.

Key Features

• Automated AC Power Transfer Control: Seamlessly monitors and transfers AC loads between shore power, inverter, and generator sources to avoid power interruption.

• Integrated Load Shedding: Logic controls allow automatic load shedding of non-essential AC equipment to prevent circuit breaker tripping.

• US Standard Compatibility: Specifically wired and calibrated with black tail harnesses for North American 120V AC / 60Hz electrical standards.

• DIN-Rail Form Factor: Designed for space-saving, clean installation inside modular industrial and marine electrical breaker enclosures.

• NMEA 2000 / MasterBus Networked: Transmits real-time voltage, current, frequency, and fault status back to the central digital switching network.

Specifications
