CZONE

BEP-80-911-0120-00-CZONE COI NO CONNECTORS

BEP-80-911-0120-00-CZONE COI NO CONNECTORS

Out of stock

Regular price USD $2,472.24 USD
Regular price USD $0.00 USD Sale price USD $2,472.24 USD
Sale Sold out
Shipping calculated at checkout.

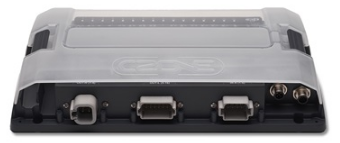

The Combination Output Interface (COI) combines multiple input and output devices in to one module, providing a high density 30 channel module which minimizes installation, interconnections and footprint, while delivering best value per circuit. The COI features the same proven, rugged CZone design including IPX5 water ingress protection and complete mechanical fuse plus bypass on all circuits as required by ABYC/CE. Industry standard Deutsch connectors provide "plug and play" installation.

  • 16 x Output Channels (4 x 25A, 12 x 10A Dimmable)
  • 8 x Analogue Inputs: Positive or Negative Switching, 0-32Volt, 0-1000 ohms resistance and 4-20mA Current
  • 6 x Digital Inputs w Systems On/Backlighting via breakout harness
  • 150A Maximum current
  • Programmable software 'fuse' sizes, plus backup mechanical fuse and bypass on all circuits as required by ABYC/CE
