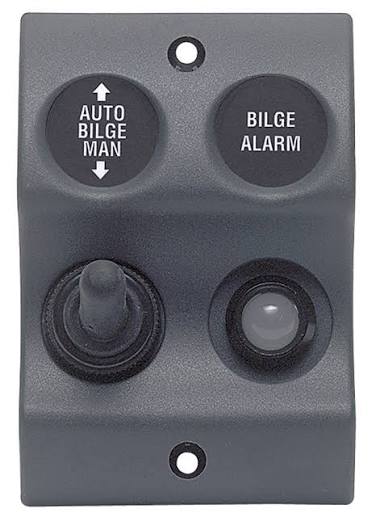

BEP 900-BA Micro Bilge Control Panel & Alarm

BEP Micro Bilge Control Panel with High Water Alarm (900-BA)

The BEP 900-BA is a compact, marine-grade Micro Bilge Pump Control Panel engineered to deliver intuitive 3-position pump management (Auto / Off / Manual) paired with an integrated High Water Audio/Visual Alarm. Designed to monitor critical bilge spaces on boats, yachts, and commercial vessels, it automatically engages connected bilge pumps via a float switch or electronic sensor while alerting the helm immediately if bilge water levels exceed safe thresholds.

Featuring an ultra-compact contour fascia, the panel includes a built-in $85\text{ dB}$ piezoceramic buzzer and high-intensity red LED indicator for high-water alarms, alongside a green LED indicator for active pump monitoring. The heavy-duty 3-way toggle switch features a spring-return mechanism on the Manual setting to prevent accidental battery drain or dry pump running, and is protected by a splash-proof rubber boot for reliable operation in exposed cockpits or flybridges.

Key Features

• Integrated High-Water Alarm: Features a loud 85 dB audible alarm buzzer and red visual warning LED to alert skipper and crew to high water levels.

• 3-Position Switch Control: Select between Auto (float switch control), Off, and Manual (momentary spring-return) pump activation modes.

• Safety Spring-Return Toggle: Manual switch position automatically springs back to Off when released, preventing burn-out of dry bilge pumps.

• Compact Contour Panel Design: Space-saving footprint aligns seamlessly with standard BEP Contour series gauge and switch panels.

• Dual Voltage Compatibility: Available in nominal 12 V DC (standard 900-BA) and 24V DC (900-BA-24V) models for broad vessel compatibility.
