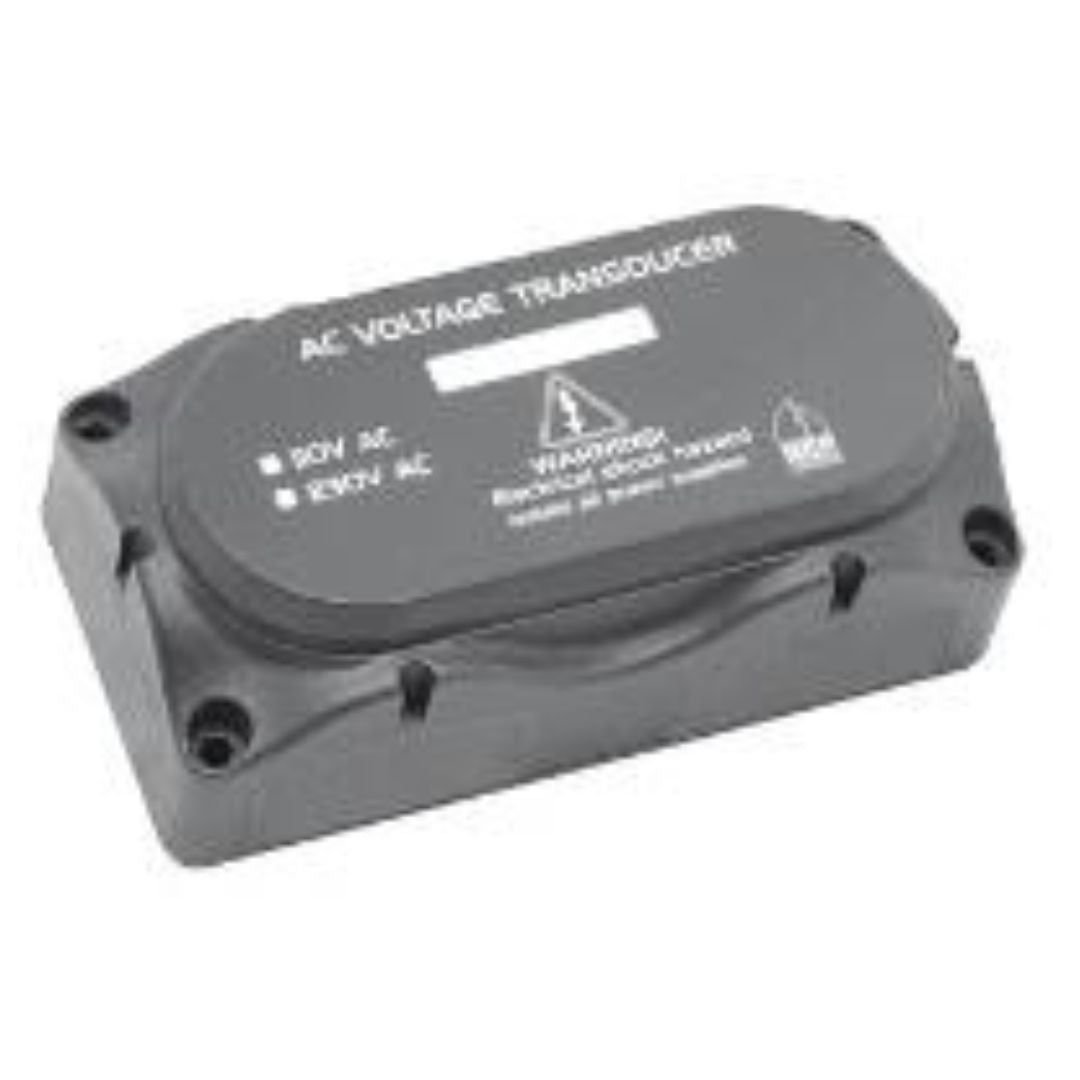

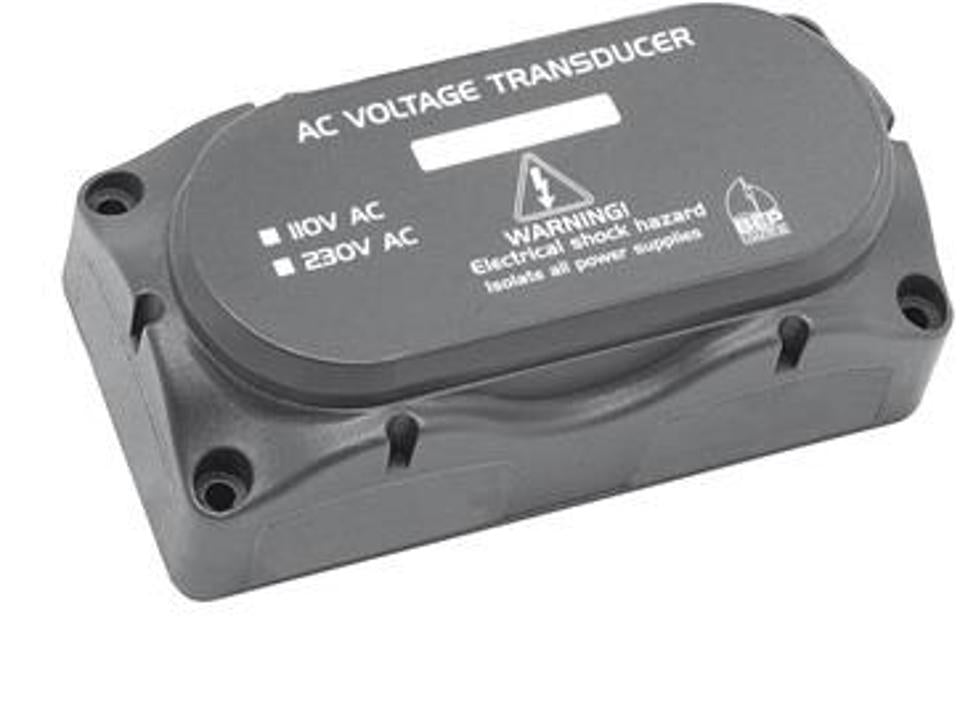

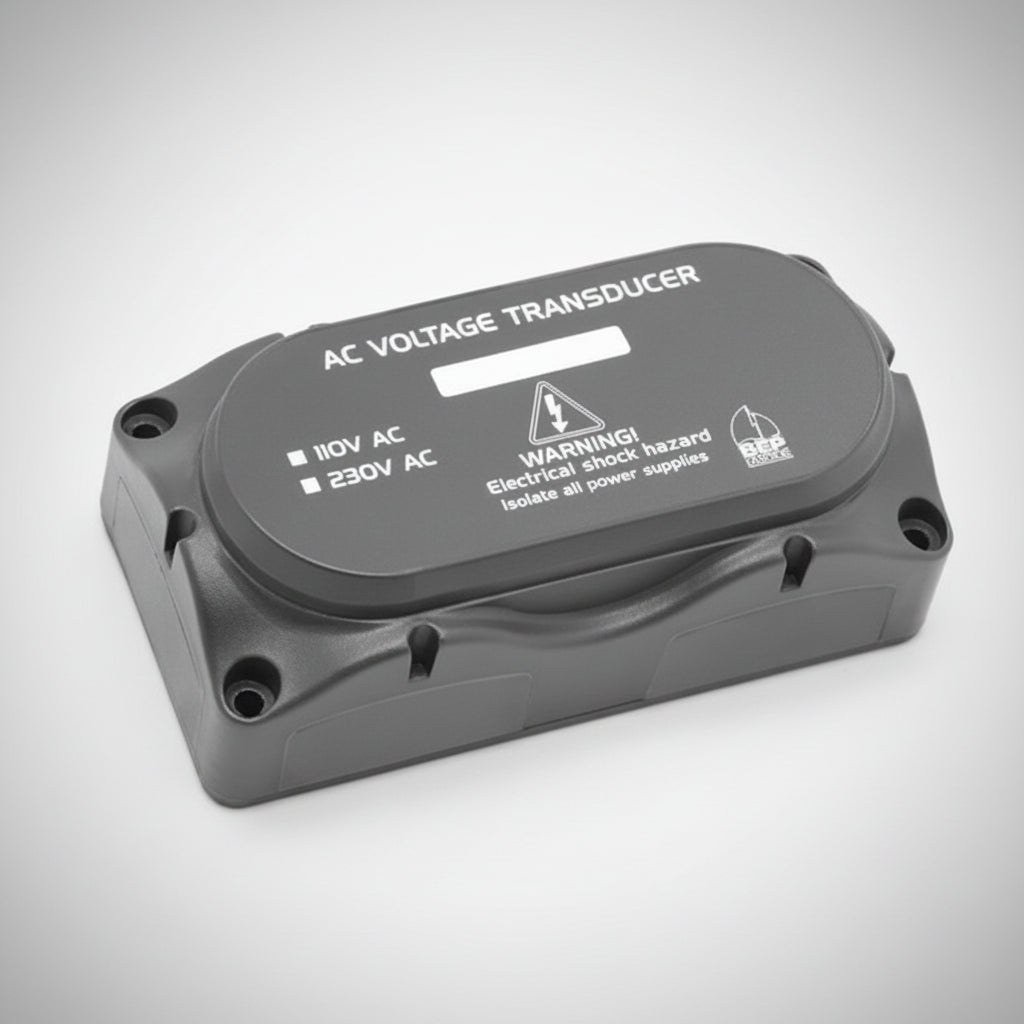

BEP AC-VSEN-4 AC Voltage Transducer CZone

BEP AC Voltage Transducer Module for Digital Meters & CZone Systems

The BEP AC-VSEN-4 is an industrial-grade AC voltage sensing transducer engineered to step down and convert high-voltage AC mains power (0-300V AC) into a safe, proportional low-voltage signal for digital monitoring. It acts as an essential signal isolation interface between AC generator or shore-power distribution buses and CZone digital switching modules (such as the Signal Interface or Meter Interface) or BEP digital AC meters.

Featuring galvanic isolation between the primary AC line inputs and low-voltage DC sensing circuits, the AC-VSEN-4 protects sensitive network logic and digital displays from high-voltage spikes, noise, and potential ground loops. Encased in a compact, flame-retardant ABS housing with screw-terminal blocks, it provides reliable real-time AC grid monitoring across single-phase or multi-phase marine generator and shore-power installations.

Key Features

• Safe AC-to-DC Voltage Transduction: Safely converts 0-300V AC grid inputs into a low-voltage DC analog signal readable by CZone SI/MI modules or BEP meters.

• Galvanic Line Isolation: Provides high-voltage optical isolation between the AC supply lines and the low-voltage CAN network/display buses.

• Universal AC Input Compatibility: Monitors 120V AC (60Hz), 230V AC (50Hz), and dual-leg split-phase shoreline supplies.

• Compact DIN Rail or Surface Mount: Small footprint footprint housing mounts cleanly inside AC main distribution enclosures or near generator breaker panels.

• Pre-Calibrated Precision Signal: Factory calibrated to deliver consistent, linear output across the entire AC operational voltage curve.
