BEP - BB-24W-2S - BUSBAR 24W NO COVERS MC6

BEP 24-Way 150A Marine Single Busbar (No Cover, MC6 Matrix)

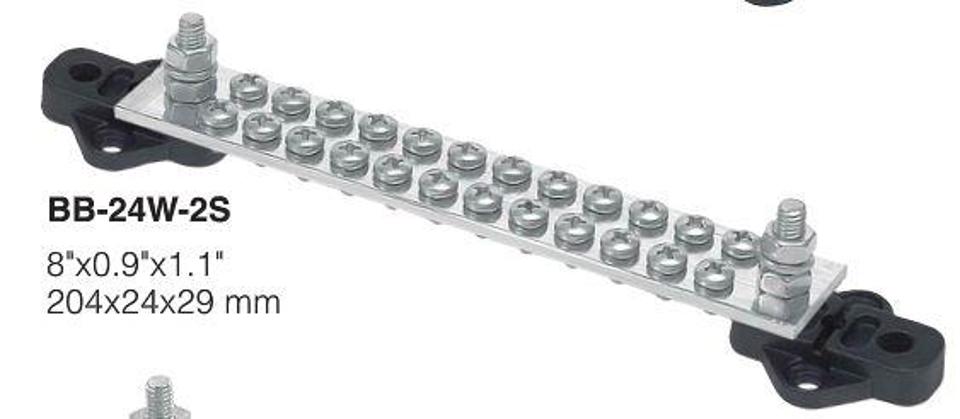

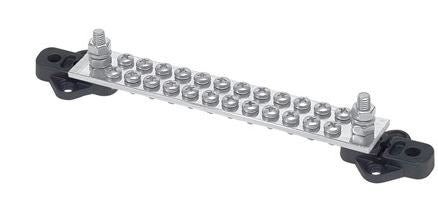

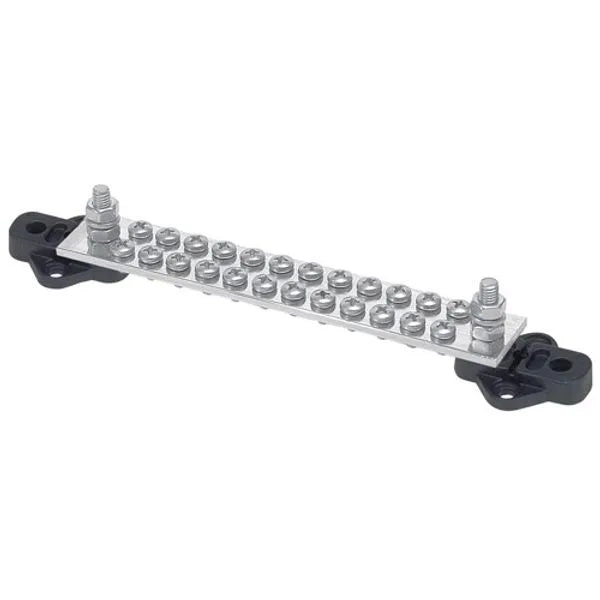

The BEP BB-24W-2S is a high-density, compact 24-way single power and ground busbar engineered to consolidate negative return circuits or common positive distribution lines in marine AC and DC electrical systems. Rated for continuous currents up to 150 A , this unit features two 1/4" (M6) primary input studs alongside 24 stainless steel 5/32" (M4) screw terminals equipped with captive shakeproof lock washers to ensure vibration-proof wire attachment.

Designed for installation inside electrical enclosures or rear-panel spaces where protective covers are provided by the housing, the BB-24W-2S utilizes a tin-plated, high-conductivity copper-alloy bus bar mounted on an insulated flame-retardant base. Recessed mounting holes eliminate accidental short circuits when installing onto aluminum hulls or metallic sub-panels.
