BEP BB-6W-2 Multi-Purpose Busbar 6Wx2 AC/DC

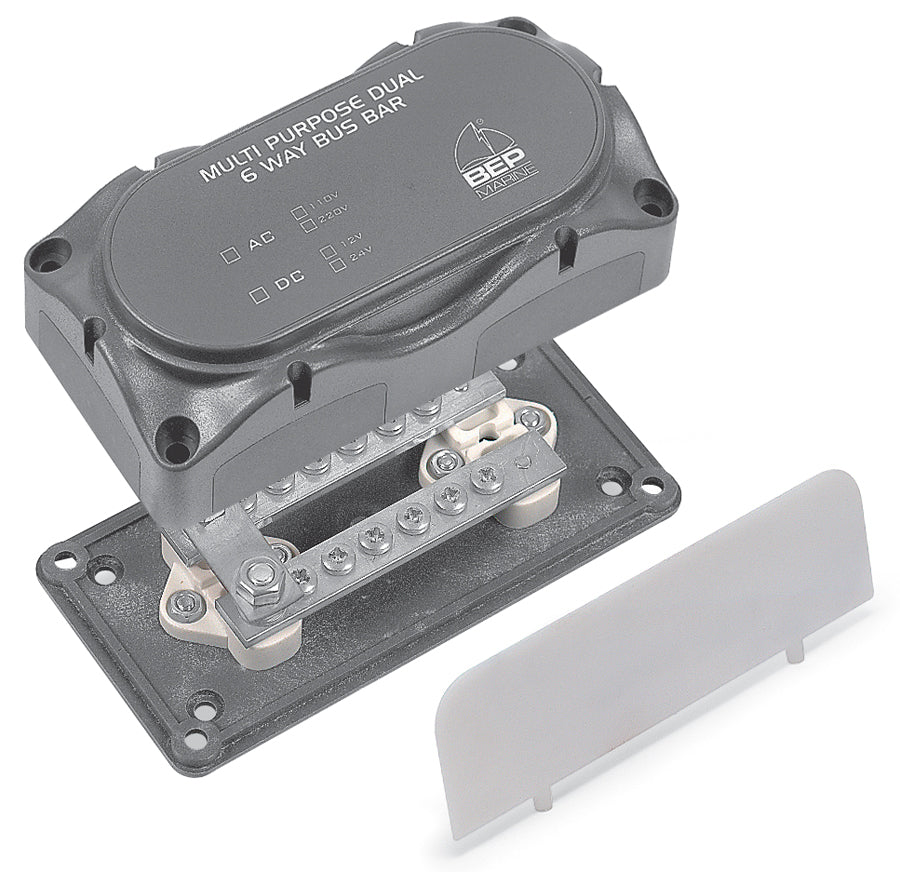

BEP Multi-Purpose Dual 6-Way Bus Bar with Cover (BB-6W-2)

The BEP BB-6W-2 (Commercial Code: BB-6W-2 / MC10) is a versatile, high-conductivity Dual 6 Way Multi-Purpose AC/DC Bus Bar System engineered for clean power distribution and return path management in marine and industrial electrical enclosures. Designed to operate as either two separate 6-terminal isolated bus bars or a single combined 12-terminal distribution block using the included removable copper linking bar, it handles both AC (Neutral/Earth) and DC (Positive/Negative) applications.

Constructed with a tin-plated copper/brass conductor rail set into an insulated, flame-retardant base with recessed mounting holes, the assembly prevents accidental short-circuit grounding when fastened directly onto metal or aluminum bulkheads. Equipped with two main 1/4" (6 mm) input studs and twelve 5/32" (4 mm) load screws with shakeproof lock washers, it comes complete with a snap-on clip cover compliant with ABYC safety standards.
