BEP BL-SL-L LPG Gas Sensor with 5m Lead

BEP Gas / LPG Replacement Sensor with 5M Cable Lead

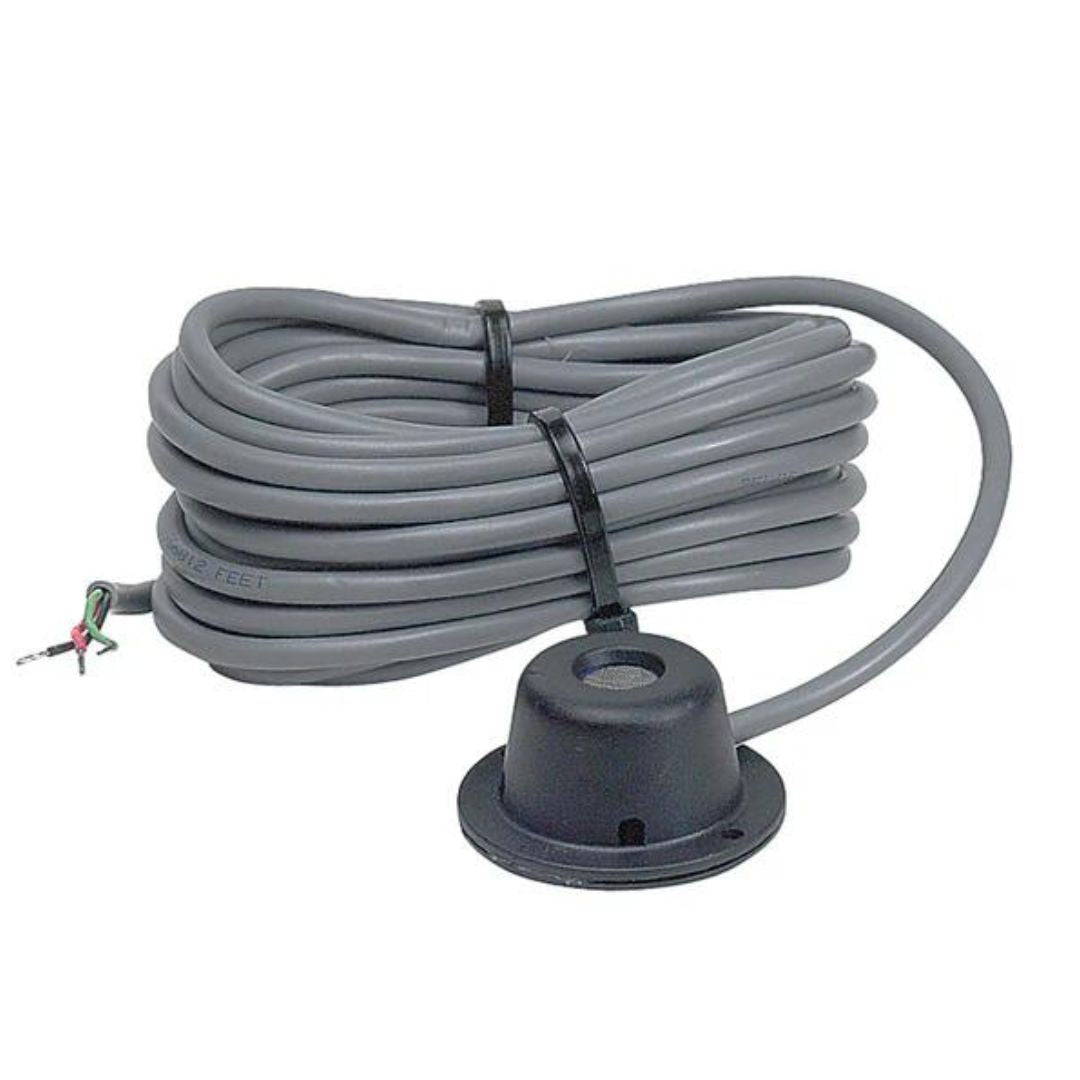

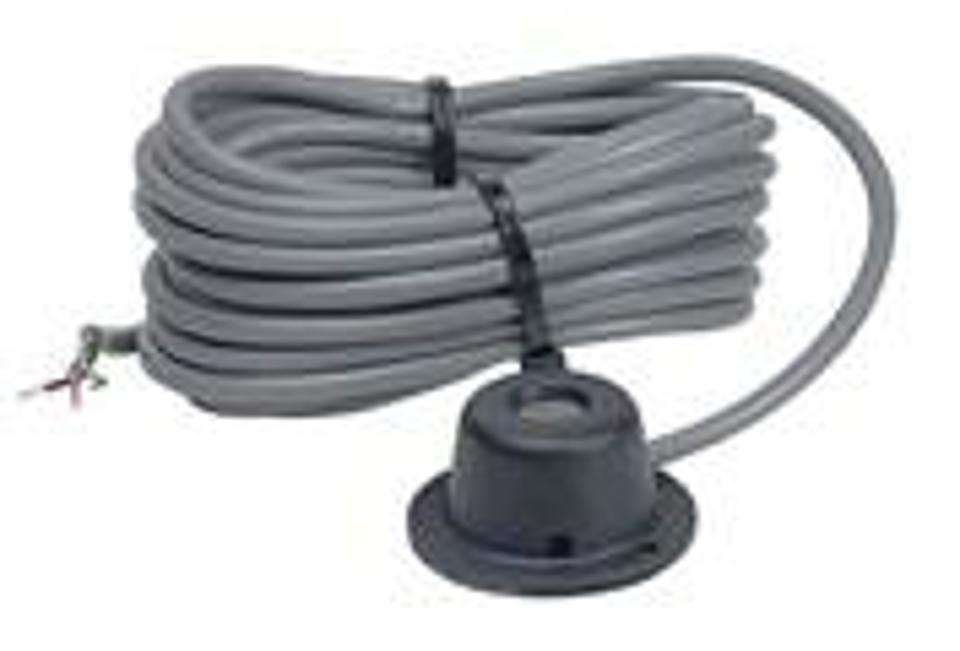

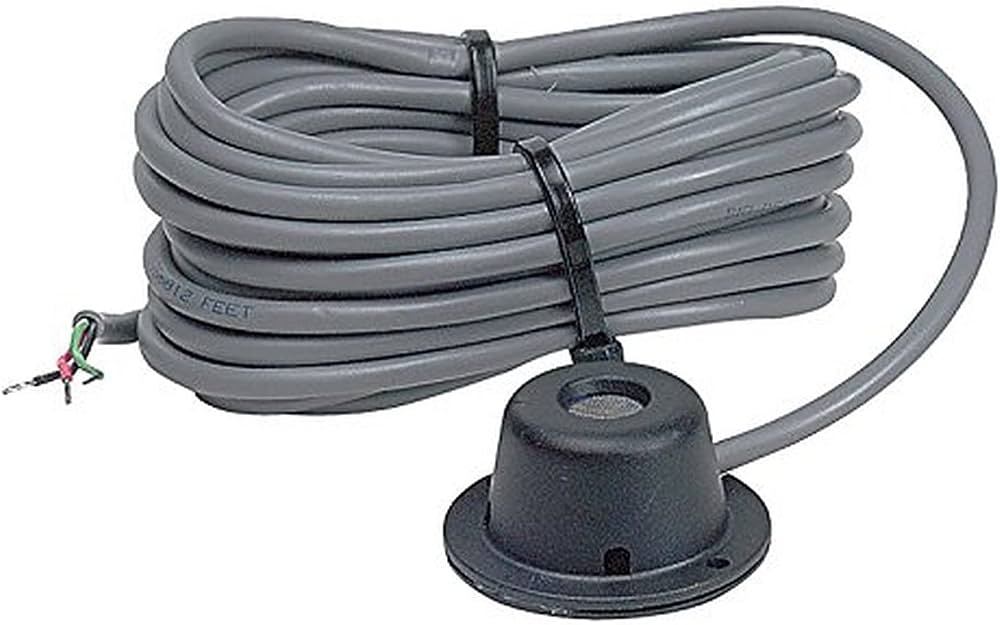

The BEP BL-SL-L is a marine-spec solid-state LPG and petrol vapor gas detection sensor featuring an integrated 5-meter (16.4 ft) pre-wired cable lead. Purpose-built for early detection of dangerous unburnt hydrocarbon vapors, propane, butane, and gasoline fumes in low-lying vessel compartments, it connects directly into BEP gas monitoring and automatic solenoid control panels (including 600-GD, 600-GDL, 600GDRV, and FD-2 series).

Designed for installation in bilges, locker bottoms, or under galley stoves where heavy volatile gases naturally settle, the sensor housing utilizes a splash-resistant, protective outer sheath. The 5-meter tinned copper lead allows seamless routing through engine bays and bulkhead runs back to the main helm display without requiring inline splices that could alter sensor calibration resistance.

Key Features

• Dual LPG & Petrol Vapor Sensitivity: Detects flammable LPG (propane/butane) and heavy gasoline vapor accumulations prior to reaching explosive thresholds.

• Pre-Wired 5M Cable Harness: Sealed 5-meter tinned lead eliminates splice resistance issues during cable routing across mid-size vessels.

• Plug-and-Play BEP Compatibility: Directly interfaces with BEP 600-GD, 600-GDL, 600GDRV, and FD-2 gas monitors and solenoid shut-off systems.

• Marine Bilge & Galley Placement: Engineered to withstand harsh bilge environments, salt moisture, and ambient temperature fluctuations.

• Self-Testing Capability: Automatically monitored for open-circuit or broken sensor wire faults when connected to compatible BEP alarm units.
