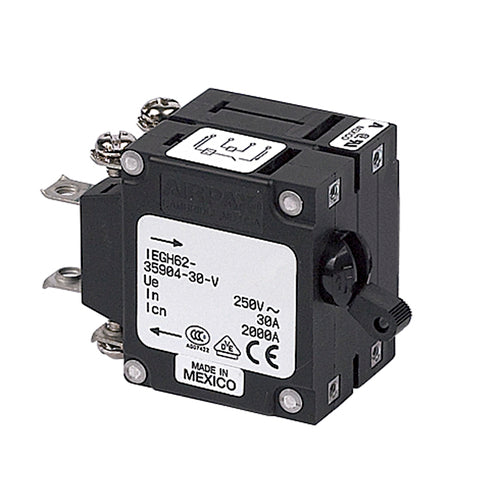

BEP CBS-20A-DP-TC230 Circuit Breaker 20A DP 230VAC

BEP 20A Double Pole 230VAC Circuit Breaker with Trip Coil (CBS-20A-DP-TC230)

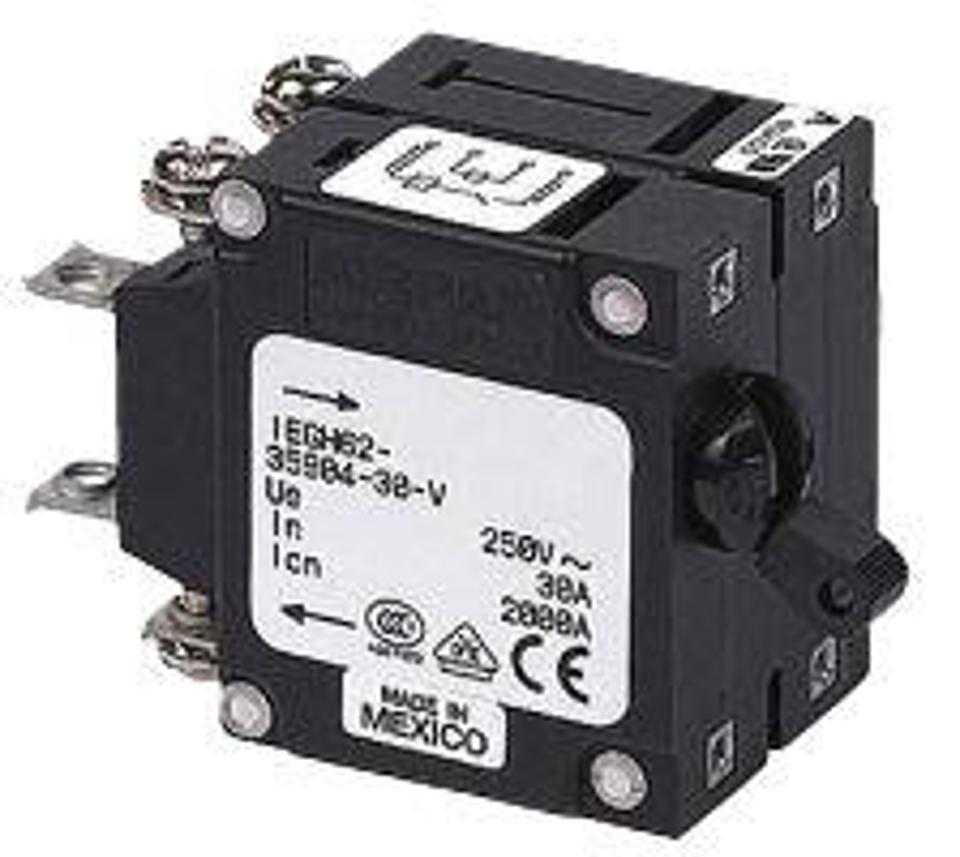

The BEP CBS-20A-DP-TC230 is a specialized, panel-mount 20A Double-Pole 230VAC Hydraulic-Magnetic Circuit Breaker designed for marine AC main distribution panels, generator output protection, and shore power inlet management. Featuring an integrated 230VAC remote trip coil (shunt trip), it allows connected safety systems—such as reverse polarity detectors, over-voltage relays, or emergency stop circuits—to remotely trip the breaker and isolate both Live and Neutral conductors simultaneously.

Engineered specifically for the harsh marine environment, the CBS-20A-DP-TC230 utilizes hydraulic-magnetic trip technology that ensures precise current sensing unaffected by ambient temperature variations inside enclosed breaker panels. The double-pole toggle mechanism guarantees simultaneous breaking of both AC legs to eliminate electrical shock hazards and stray neutral currents on 230V AC marine installations.

Key Features

• Integrated 230VAC Remote Trip Coil: Permits external safety devices (reverse polarity monitoring, over-voltage, or emergency stop buttons) to automatically trip the breaker remotely.

• Double Pole Isolation: Simultaneously switches both active/phase and neutral lines, ensuring complete isolation of 230V AC circuits per ABYC and CE standards.

• Temperature-Stable Hydraulic-Magnetic Sensing: Provides consistent current overload protection without derating in hot engine spaces or sealed electrical lockers.

• Common Trip Toggle Mechanism: Internal mechanical tie ensures that if either pole experiences a fault or remote trip signal, both poles trip instantly.

• Marine Panel Mount Standard: Fits standard BEP Contour and Custom AC electrical distribution panels.
