BEP CLB-10-CB Carling 10A Push Reset Breaker

BEP Marine / Carling 10A Thermal Push-to-Reset Circuit Breaker (CLB-10-CB)

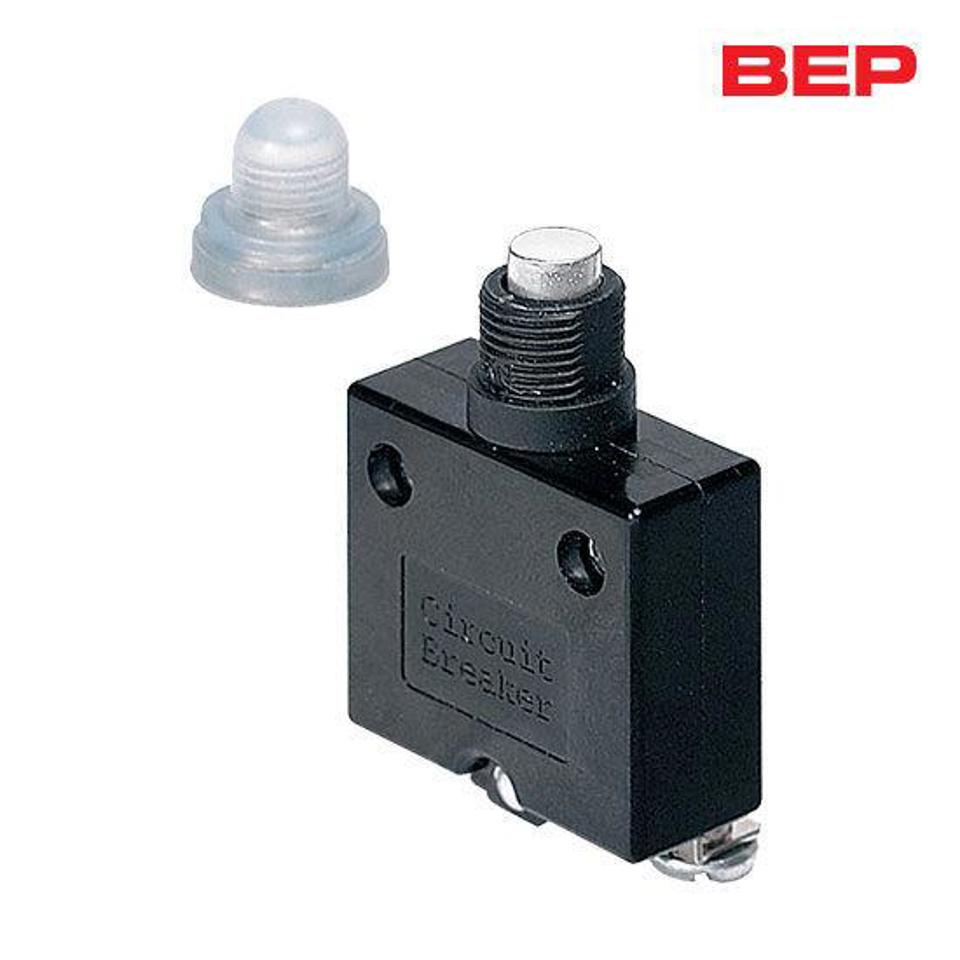

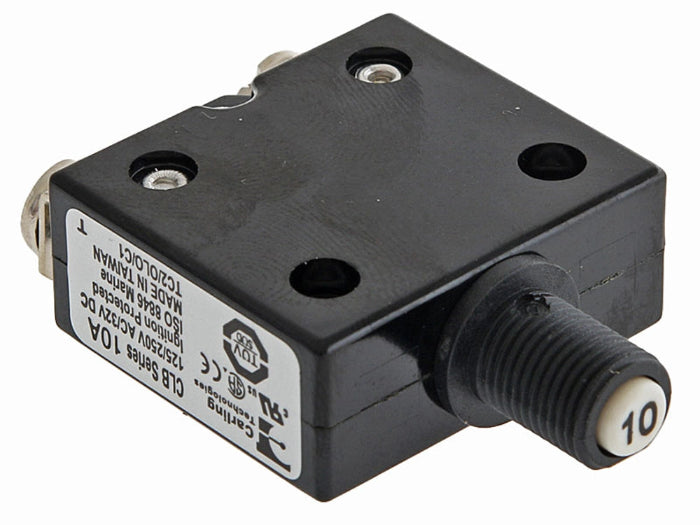

The BEP CLB-10-CB is a compact, single-pole 10-Amp Thermal Push-to-Reset Circuit Breaker manufactured by Carling Technologies for marine switch panels, power distribution boards, and industrial DC control systems. Engineered to protect electrical circuits against overcurrent and short-circuit conditions, it features a trip-free design that prevents the breaker from being manually held open during an active fault state.

Constructed with a durable composite housing and brass quick-connect spade terminals, the CLB-10-CB is ideal for protecting marine electronics, lighting runs, bilge pumps, and auxiliary DC equipment. Its standard panel-bushing profile allows seamless snap-in or thread-nut mounting across standard BEP contour panels, custom dashboards, and industrial control enclosures.

Key Features

• Compact Push-to-Reset Operation: Simple push-button reset mechanism provides visual indication of tripped status.

• Trip-Free Safety Mechanism: Cannot be held in the ON position manually while a thermal overload fault persists.

• Standard Panel Mounting: Fits standard 3/8" (10 mm) panel cutouts with an integrated threaded neck and locknut.

• Corrosion-Resistant Terminals: Equipped with 0.250" (6.3 mm) quick-connect male spade terminals for low resistance wiring.

• High Voltage Compatibility: Rated for up to 32V DC and 250V AC branch circuit protection applications.
