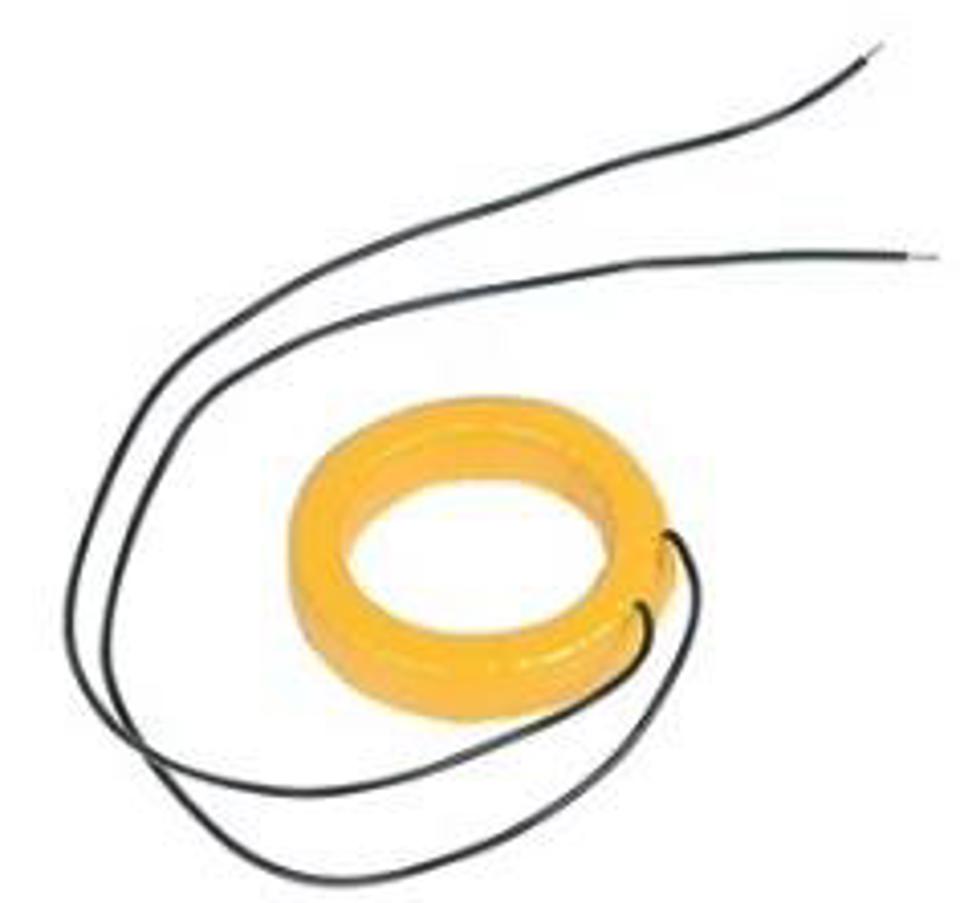

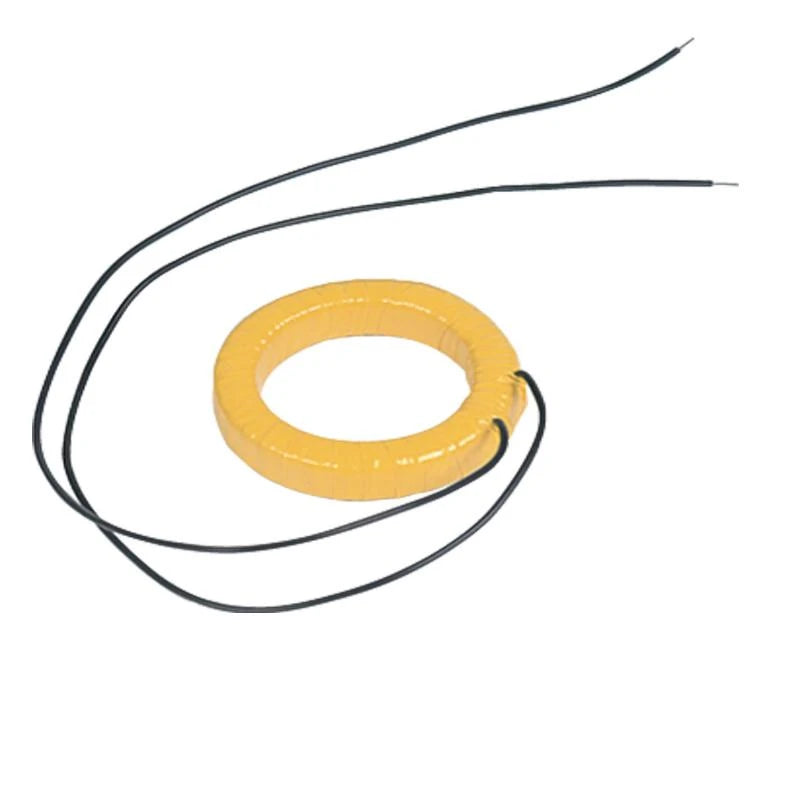

BEP CT-HD Heavy Duty Current Transformer

BEP Heavy Duty AC Current Transformer

The BEP CT-HD is a marine-grade heavy-duty AC current transformer (CT) engineered for high-accuracy current measurement across AC power distribution panels, shore power monitoring systems, and onboard AC generator circuits. Designed to interface seamlessly with BEP AC digital meters, monitor displays, and CZone digital switching systems, the CT-HD safely steps down high primary AC line currents into proportional low-current signal outputs for digital processing.

Built with a high-permeability toroidal core and enclosed in a fully encapsulated, impact-resistant resin housing, the CT-HD provides robust electrical isolation between high-voltage AC conductor lines and sensitive monitoring electronics. Its large center aperture accommodates heavy gauge insulated AC power cables, ensuring simple retrofit or new-build installation without breaking the primary conductor circuit.

Key Features

• High-Accuracy AC Measurement: Delivers precise signal conversion for AC ammeters, digital monitoring panels, and power management displays.

• Non-Intrusive Pass-Through Design: Large inner diameter aperture allows primary AC cables to pass directly through without cutting or splicing conductors.

• Galvanic Circuit Isolation: Fully isolates low-voltage monitoring meters from high-voltage AC shore power and generator lines for enhanced safety.

• Encapsulated Marine Construction: Resin-sealed toroidal core resists moisture ingress, salt air corrosion, and engine room vibration.

• CZone & BEP Meter Compatibility: Direct plug-and-play compatibility with BEP AC digital meters and CZone signal interface modules.
