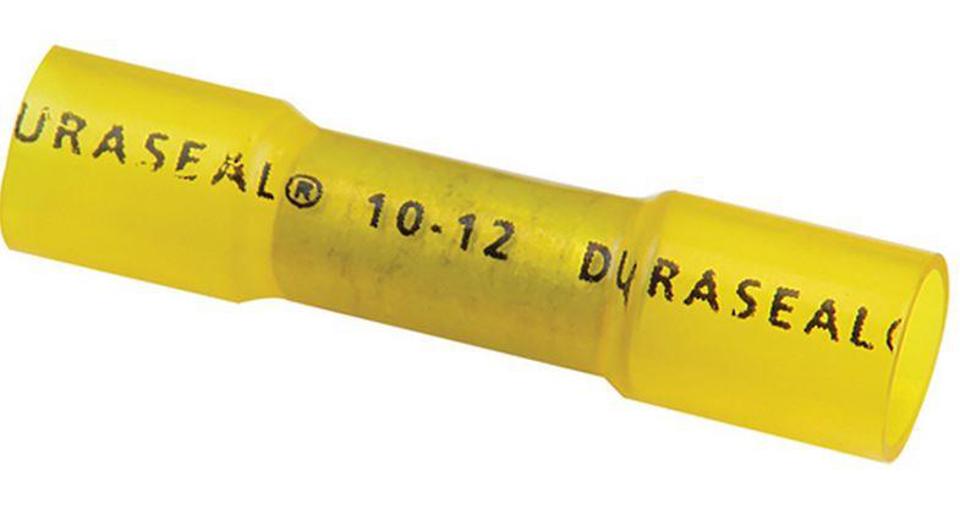

BEP DuraSeal D406-0003 Yellow Heat Shrink Butt Splice (10 pc)

BEP / TE Connectivity Raychem DuraSeal Yellow Heat-Shrink Butt Splice Connectors (10-pc)

The BEP D406-0003 DuraSeal 10-Pack consists of premium, yellow heat-shrinkable crimp butt splice connectors designed for joining and environmentally sealing heavy DC power cables, high-current branch circuits, marine bilge pumps, and navigation feeds in the 12-10 AWG (3.0-6.0 mm²) wire gauge range. Manufactured by TE Connectivity Raychem and distributed via BEP, DuraSeal products are built to withstand continuous marine immersion, salt fog, vibration, and thermal stress without becoming brittle over time.

Each connector features a seamless, tin-plated pure copper crimp sleeve housed within a tough, translucent polyamide (nylon) heat-shrink tube pre-lined with hot-melt adhesive. When heated, the outer sleeve shrinks uniformly at a 2:1 ratio, melting the internal adhesive to create a fully strain-relieved, moisture-proof IP67 environmental seal that prevents conductor oxidation and galvanic corrosion.

Key Features

• Hot-Melt Adhesive Inner Liner: Flowing thermoplastic adhesive encapsulates the crimped junction to seal out water, condensation, salt spray, and fuel oils.

• Seamless Tin-Plated Copper Barrel: High-conductivity ETP copper core provides maximum electrical performance, low voltage drop, and high tensile pull-out strength.

• Flame-Retardant Polyamide Jacket: Tough, puncture-resistant outer heat-shrink sheath provides superior strain relief and vibration dampening.

• Translucent Yellow Sleeving: Allows clear visual inspection of the internal crimp and hot-melt adhesive flow during installation.

• Industry Approvals: UL, CUL, and Lloyd's Register certified for marine, offshore, and heavy commercial vehicle installations.
