BEP DT06-2S Deutsch 2-Pin Plug Housing

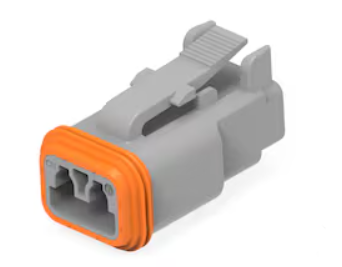

BEP / Deutsch 2-Position Male Plug Housing (DT06-2S)

The DT06-2S is an industry-standard 2-position environmentally sealed cable plug housing manufactured by TE Connectivity Deutsch and distributed via BEP Marine for harsh-environment marine and automotive wire harnesses. Designed to house Size 16 female socket terminals, it provides an IP68-rated waterproof wire-to-wire connection when mated to a corresponding DT04-2P receptacle housing.

Constructed from high-grade, chemical-resistant thermoplastic, the DT06-2S incorporates an integrated primary locking mechanism with an external latch to prevent accidental disconnection caused by engine vibration or thermal cycling. It requires a secondary W2S wedgelock to lock terminal contacts securely into place, ensuring continuous contact alignment for low-voltage sensor, lighting, and power control circuits.

Key Features

• IP68 / IP6K9K Waterproof Environmental Sealing: Features integrated silicone wire and interface seals to block saltwater, fuel, oil, and dust intrusion.

• Integrated Secondary Wedgelock Retention: Accepts W2S locking wedge to align socket terminals and guarantee positive retention.

• Vibration-Resistant Quick-Latch: Thermoplastic latching arm provides tactile and audible feedback when fully coupled with mating receptacles.

• Extreme Thermal Tolerance: Operates seamlessly across a wide temperature window of -55°C to +125°C.

• Standard Size 16 Socket Compatibility: Accepts solid or stamped-and-formed Size 16 socket terminals rated up to 13 A continuous current.
