BEP IS-6MM-2 Dual 6mm Insulated Distribution Stud

BEP Dual 6mm Insulated Distribution Stud Module – Bare Base (IS-6MM-2)

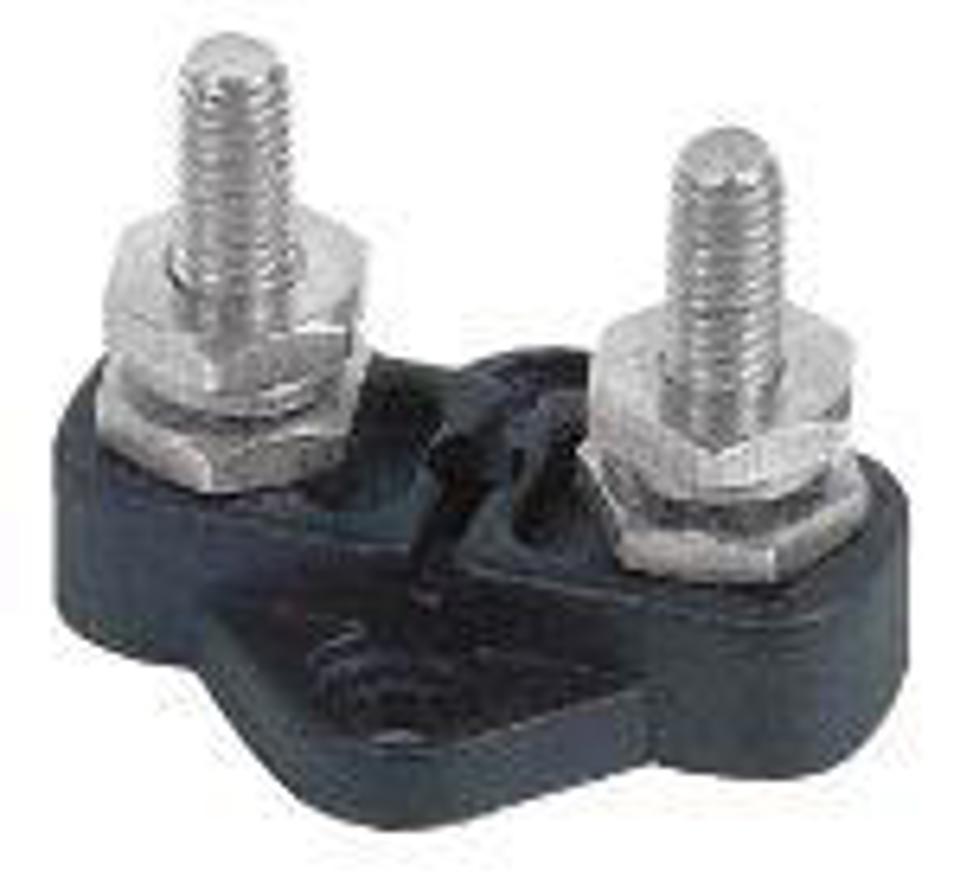

The BEP IS-6MM-2 is a compact, heavy-duty Dual 6 mm (1/4") Insulated Terminal Distribution Stud Assembly engineered to create secure, isolated termination points for heavy-gauge power leads, branch circuits, and ground returns in marine and mobile electrical installations. It is frequently utilized for anchoring battery cable feed lines, windlass connections, inverter inputs, and outboard motor harness feeds.

Constructed on a high-temperature, flame-retardant glass-filled nylon molding, the dual studs feature high-conductivity tinned brass threads mounted onto a non-conductive insulating base. This configuration permits mounting directly onto aluminum, steel, or fiberglass bulkheads without the risk of grounding or shorting. (Note: This standard SKU is supplied as the bare insulated stud module without protective insulation covers).

Key Features

• Dual Isolated Terminals: Provides two independent 6 mm (1/4") threaded studs on a unified mounting footprint for routing positive and negative paths side-by-side.

• Flame-Retardant Molding: High-temperature glass-reinforced nylon base resists heat warping under continuous heavy electrical currents.

• Marine Corrosion Protection: Tinned brass stud posts resist galvanic oxidation and marine corrosion.

• Surface-Mount Isolation: Raised non-conductive base keeps energized cable lugs off metallic vessel bulkheads or engine bed frames.
