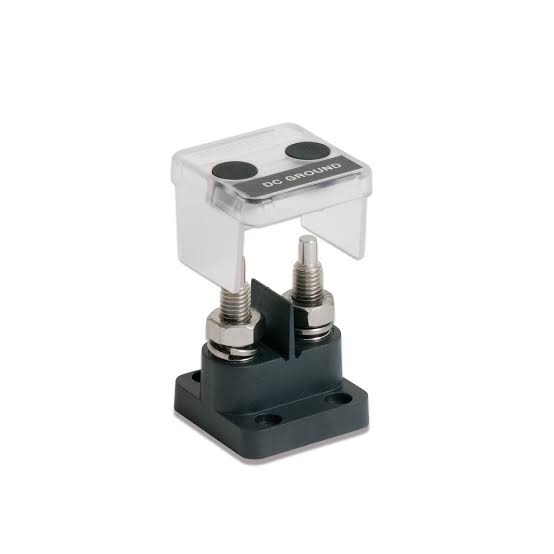

BEP IST-10MM-2S-B Pro Installer Double 10mm Insulated Stud

BEP Pro Installer Double 10mm Insulated Stud Module

The BEP IST-10MM-2S-B is a heavy-duty, double 10 mm (3/8 in) insulated terminal stud module engineered for safe, compact DC distribution, cable extensions, and high-power termination points on vessels. Designed within the BEP Pro Installer system modular architecture, it features extended stainless steel threaded studs that accommodate up to three large cable lugs per stud, significantly saving space in tight engine rooms and helm consoles.

Constructed with an insert-molded, fiber-reinforced plastic base, the IST-10MM-2S-B offers superior mechanical strength and resistance to harsh bilge chemicals and high ambient temperatures. A transparent polycarbonate insulating cover with breakaway side skirts provides environmental protection while maintaining access for modular interconnection with other Pro Installer busbars and switches.

Key Features

• Extended Stainless Steel Studs: Increased length allows up to 3 cable lugs to be stacked per stud for maximum wiring flexibility.

• Pro Installer Modular Footprint: Standardized height and grid footprint allow direct link-bus connection to Pro Installer battery switches, fuseholders, and busbars.

• Fiber-Reinforced Composite Base: High-temperature, chemically resistant polymer prevents tracking and withstands high mechanical tightening torque.

• Protective Insulating Cover: Clear polycarbonate cover insulates exposed live terminals and includes breakaway skirts for flexible multi-directional cable entry.

• Insert-Molded Hardware: Studs are press-molded directly into the base structure to eliminate thread spinning under heavy wrench torque.
