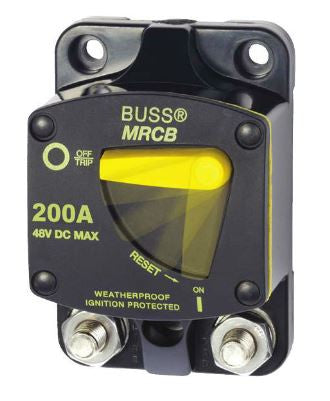

BEP - MRCBF-200A - HD CB BUSSMAN 187 SERIES 200A FLSH MNT
BEP - MRCBF-200A - HD CB BUSSMAN 187 SERIES 200A FLSH MNT
Pre order
Regular price
$ 174.90 USD
Regular price
Sale price
$ 174.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Single Pole Switchable Manual Reset Thermal Circuit BreakerMRCBF
Suitable for DC power systems in marine applications, truck, bus and RV systems, add-on protection for accessories etc. This unit is external ignition protected and weatherproof.
- Weatherproof IP66 design
- Trip free safety feature
- Switchable circuit protection
- Ignition Protected
- CE Approved
- Rating: 25-200A, 48V DC
- Interrupt Rating: Main Breaker Protection Interrupt Rating (5,000A@ 14V DC, 3,000A@ 28V DC and 1,500A@ 48V DC)
- Operating Temperature Rating: -40 deg F (-40 deg C) to 185 deg F (85 deg C)
- Storage Temperature Rating: -40 deg F (-40 deg C) to 260 deg F (125 deg C)
- Materials: Black UL-rated 94V0 thermoset plastic body
- Cover and lever are UL-rated 94V0 thermoplastic
- Marking: Standard marking includes amp/volt ratings
- Termination: 5/16-18 threaded studs
- Torque Rating: 75 in-lbs (8.5Nm) max
- Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6 Nm) max
- Ingress Protection Rating: IP66
- Compliances: ABYC E-11; CE; SAE J1171 (ignition protected) ��� Available in other sizes upon request, from 25-150 Amps
