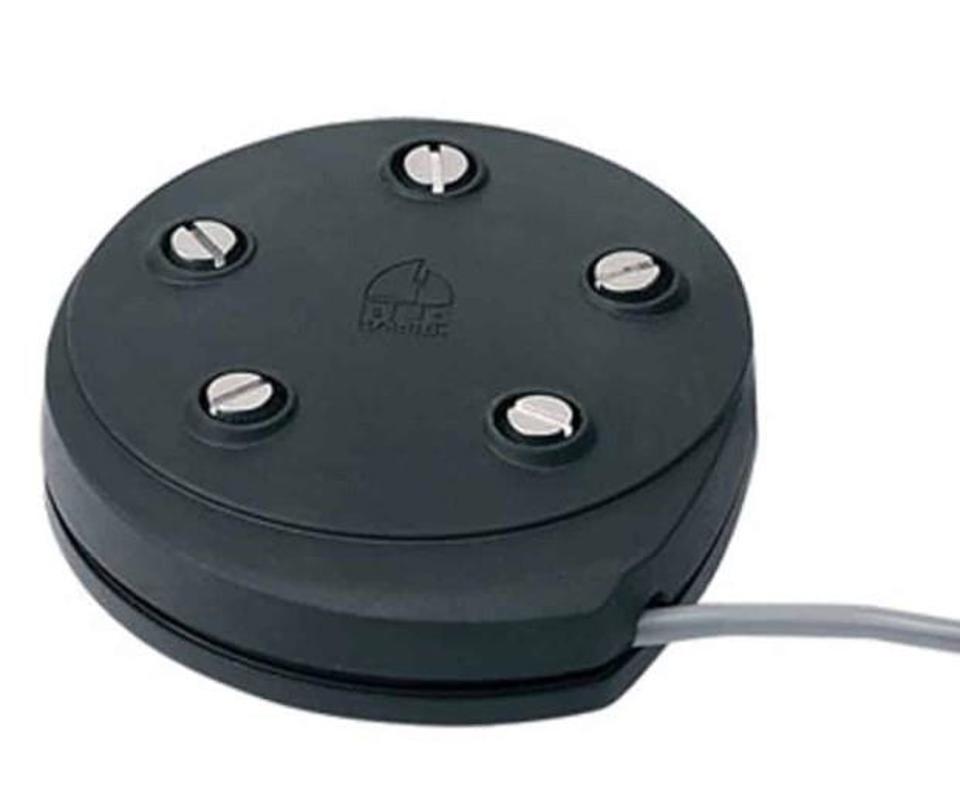

BEP TS1-B Ultrasonic Tank Sender (Bulk)

BEP TS1 Ultrasonic Tank Level Sender (Bulk Pack )

The BEP TS1-B  is a solid-state ultrasonic acoustic tank level sender engineered to measure liquid levels in marine fuel, freshwater, grey water, and black water holding tanks. Eliminating mechanical floats, arms, and moving parts susceptible to fouling or corrosion, the TS1 uses acoustic sound wave reflection through a center aperture to continuously determine fluid height with 2 mm accuracy.

Featuring a low-profile housing with a standard SAE 5-bolt mounting pattern, the TS1 easily retrofits existing mechanical float senders. Integrated firmware allows custom 5-point calibration via BEP’s proprietary TS1-PK software tool, enabling precise volume mapping even in irregularly shaped or non-linear tanks. It supports multiple selectable output signals, including standard 0 - 5V DC analog voltage for CZone and BEP digital monitors, as well as simulated 240 - 33 Ω, 10 - 180 Ω, and 10 - 300 Ω resistive outputs for conventional analog meters.

Key Features

• Non-Contact Acoustic Ultrasonic Sensing: Zero moving parts in the liquid eliminates mechanical failures, mechanical arm jamming, and sludge build-up.

• Universal Fluid Compatibility: Chemically resistant design suitable for petrol, diesel, fresh water, grey water, and waste holding tanks.

• 5-Point Non-Linear Volume Calibration: Fully programmable via PC (TS1-PK kit) to map fluid level against complex, tapered, or irregular tank geometries.

• Multi-Format Output Emulation: Output selectable for 0 - 5 V DC digital monitors or 240 - 33 Ω, 10 - 180 Ω, and 10 - 300 Ω analog resistive gauges.

• SAE 5-Hole Retrofit Standard: Low-profile 20 mm height with standard SAE 5-stud mounting footprint for direct drop-in replacement.

Specifications
