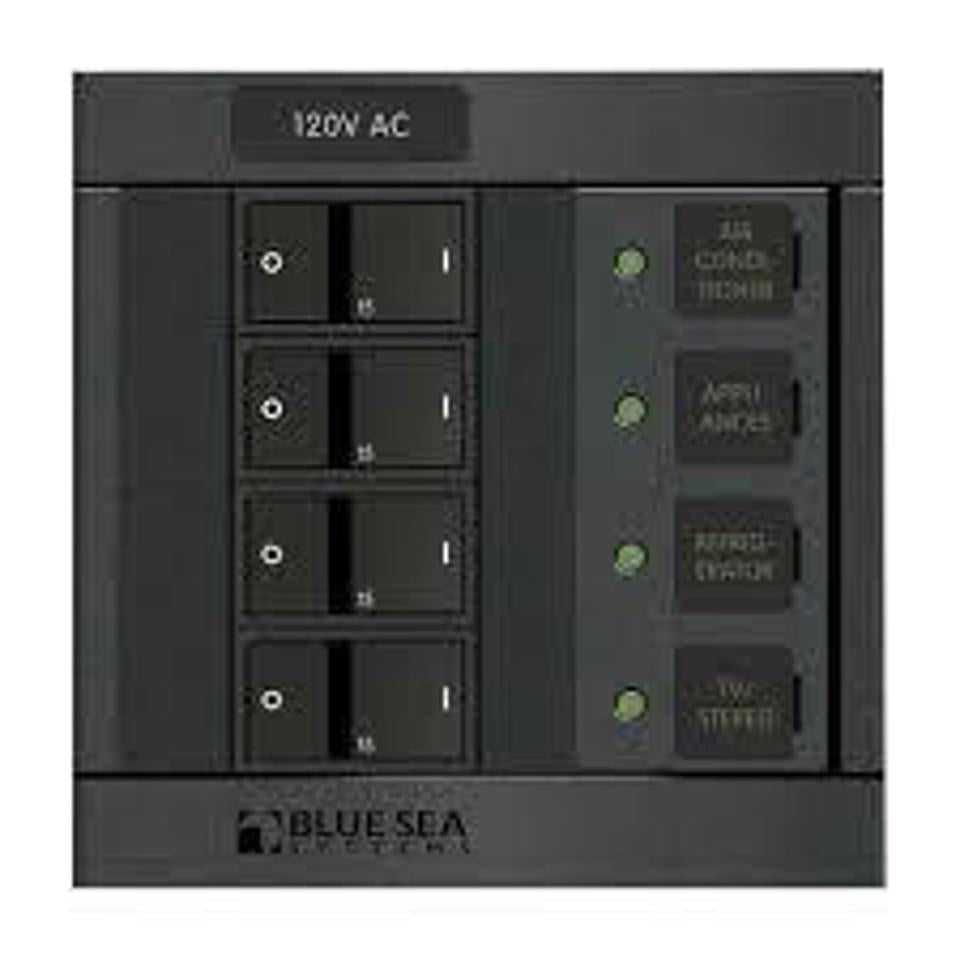

Blue Sea Systems 1210 360 Panel 120VAC 4 Position Flat Rocker

Blue Sea Systems 360 Panel System 120V AC 4-Position Flat Rocker Panel (1210 / 1210-BSS)

The Blue Sea Systems 1210 is an AC electrical distribution panel built on the modular 360 Panel System architecture. Configured for $120\text{V AC}$ single-phase marine electrical systems, it features four positions fitted with A-Series flat rocker hydraulic-magnetic circuit breakers. Designed for flush-mount installation at nav stations or main distribution lockers, it provides circuit protection and branch switching for onboard AC appliances such as outlets, water heaters, battery chargers, and air conditioning units.

Constructed from heavy-gauge corrosion-resistant aluminum with a durable polyurethane coating, the 1210 panel features LED indicators for circuit power status and dual-color reverse polarity monitoring to safeguard vessel electrical systems. Snapping bezel end caps conceal mounting fasteners for a clean aesthetic, while open back wiring access simplifies terminal busbar ring connection during vessel wiring.

• All circuit label positions are backlit
• “ON” indicating LEDs installed in all circuit positions
• Includes 4206—Square Format Label Set
