5510E-BSS

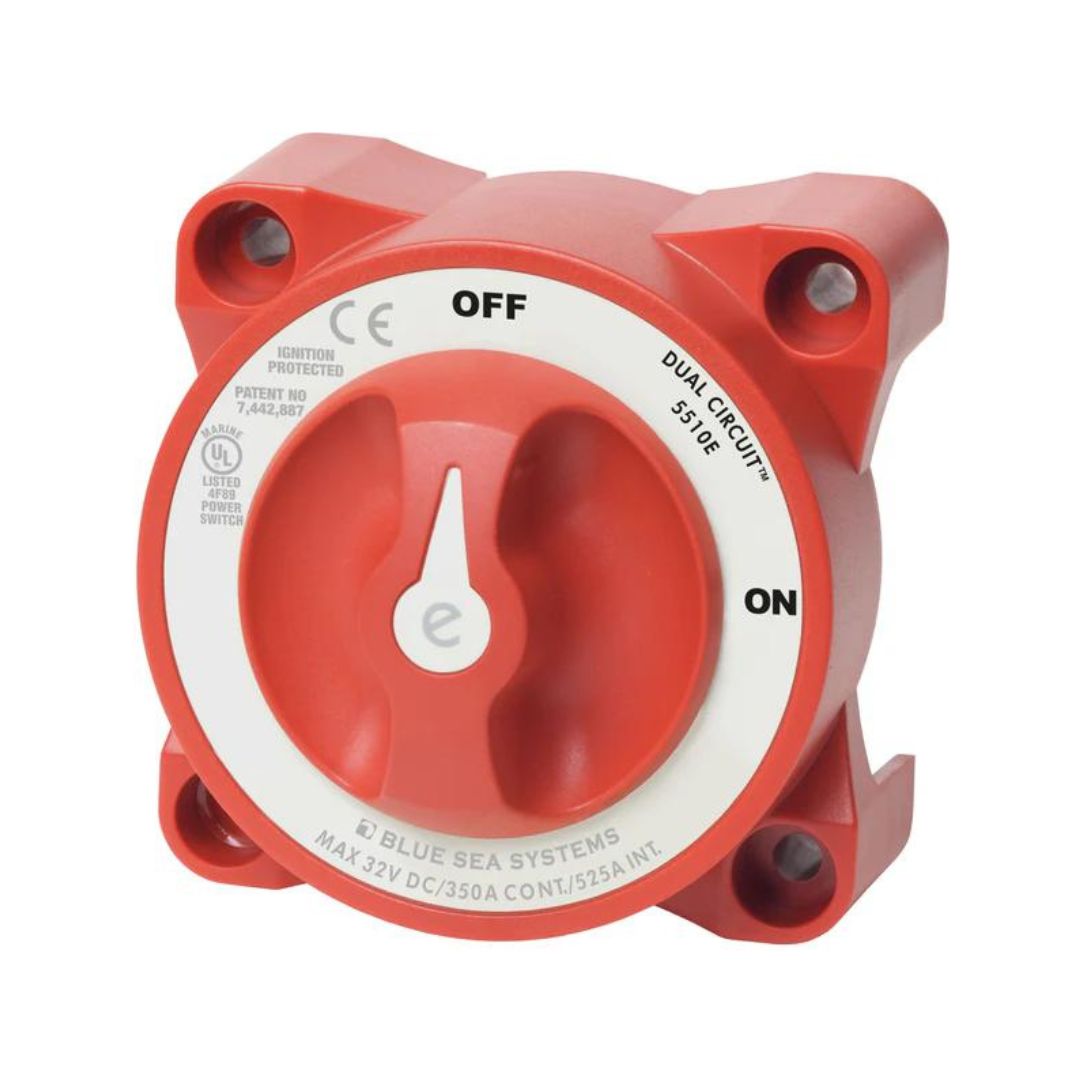

Blue Sea Systems - 5510E-BSS - SWITCH BATTERY 2 POLE ON/OOFF

  • $ 53.99 USD
  • Save $ 18.00 USD


Simultaneously switches two isolated battery banks
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
Specifications
Switch Type  Dual Circuit
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  350A
Intermittent Rating  525A (5 min)
Cranking Rating 30 sec  700A per circuit
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.30lb (0.59 kg)



Simultaneously switches two isolated battery banks.
