Blue Sea 7056 15A Push Button Circuit Breaker

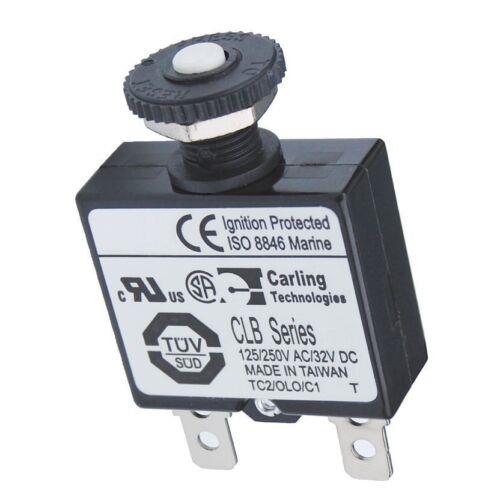

Blue Sea Systems 7056 Push Button Reset-Only Thermal Circuit Breaker (15A)

The Blue Sea Systems 7056 (also designated as 7056-BSS) is a compact, 15 Ampere push-button reset-only thermal circuit breaker (Carling CLB Series architecture). Designed for branch circuit protection and 24-hour essential loads where ON/OFF switching is performed externally, it provides reliable protection for marine electrical panels, DC distribution hubs, and electronics trunks.

The breaker features a "trip-free" mechanism, ensuring it cannot be manually held in the "ON" state during an active fault condition. Built for high-density panel layouts, it utilizes 1/4" male quick-connect spade terminals and a standard 3/8"-27 UNS bushing for easy installation in Blue Sea Systems WeatherDeck®, Dual Battery Bank, and 360 Distribution Panels.

• Branch circuit breakers (can also be used for 24-hour circuit protection)
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
