Blue Sea Systems - 7142-BSS - Breaker Thermal 187 SrfcMnt 80A

Blue Sea Systems - 7142-BSS - Breaker Thermal 187 SrfcMnt 80A

Pre order

$ 109.84 USD
$ 109.84 USD
Sale Pre Order
Shipping calculated at checkout.

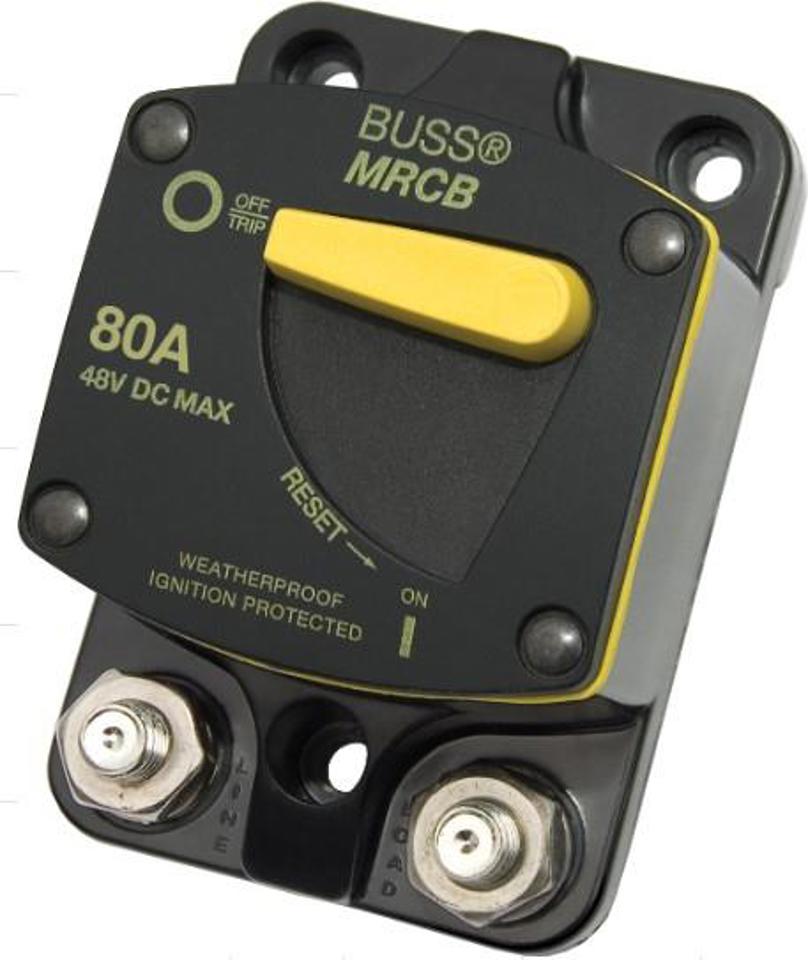

187-Series Circuit Breaker - Surface Mount 80A

7142

    • Combines switching and circuit protection into a single device*
    • Clear, single lever operation
    • "Trip Free" design cannot be held "ON" during fault current condition
    • Waterproof
    • Recessed mounting holes for clean appearance
    • Large Clearance around terminal studs accept heavy gauge wire lugs
    • Robust 5/16 M8 terminals provide high torque connections
    • Large lever with vertical/horizontal orientation provides indication of trip status
    • Ignition protected - Safe for installation aboard gasoline powered boats
    • Meets SAE J1171 external ignition protection requirements

    * Do not use as a switch where high inrush currents are expected.
    Specifications
    Amperage 80A
    Maximum Voltage 48V DC
    Mounting Surface Mount
    Circuit Breaker Type Thermally responsive Bi-metal blade
    Terminal Stud Torque 75 in-lb (8.47 Nm)
    Interrupt Capacity  5000A @ 14VDC
    3000A @ 28VDC
    1500A @ 48VDC
    Minimum Operating Temperature -40° C
    Maximum Operating Temperature 85° C
    Case Material Thermoset Polyester
    Circuit Breaker Class Type III - switchable/manual reset - trip free
    Mounting Hole Accept #10 (M5) Screw
    Terminal Stud Size 5/16" - 18
    Weight 0.58lb (0.26 kg)
    Weight 0.58lb (0.26 kg)
