7404-BSS

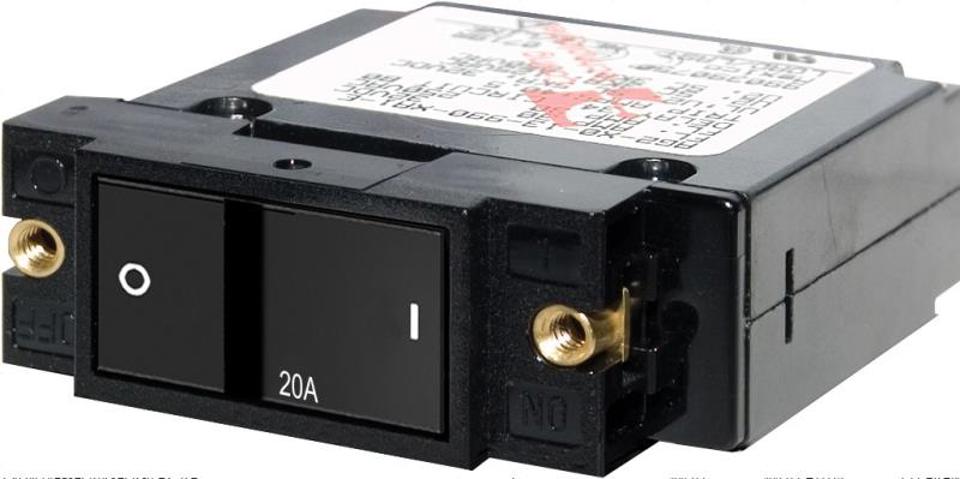

Blue Sea Systems - 7404-BSS - Circuit Breaker A1 FLAT Rocker 20A

  • $ 28.99 USD


  • Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
  • Color actuator indicates “OFF” position
  • “Trip Free” design cannot be held “ON” during fault current condition
  • 2 different actuator styles available
  • Prevents accidental switching of 24 hour circuits
  • International ON/OFF symbols support vertical or horizontal mounting
Specifications
Amperage 20A AC
20A DC
Actuator Style  Flat Rocker
Poles 1
Maximum Voltage 240V AC
32V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Interrupt Capacity  3000A @ 125V AC
1500A @ 240V AC
5000A @ 32V DC
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Screw Terminal Torque 14 in-lb (1.58 Nm)
Switching Cycles 10000
Terminal Screws #10-32 Stainless Steel
Weight 0.18lb (0.08 kg)
