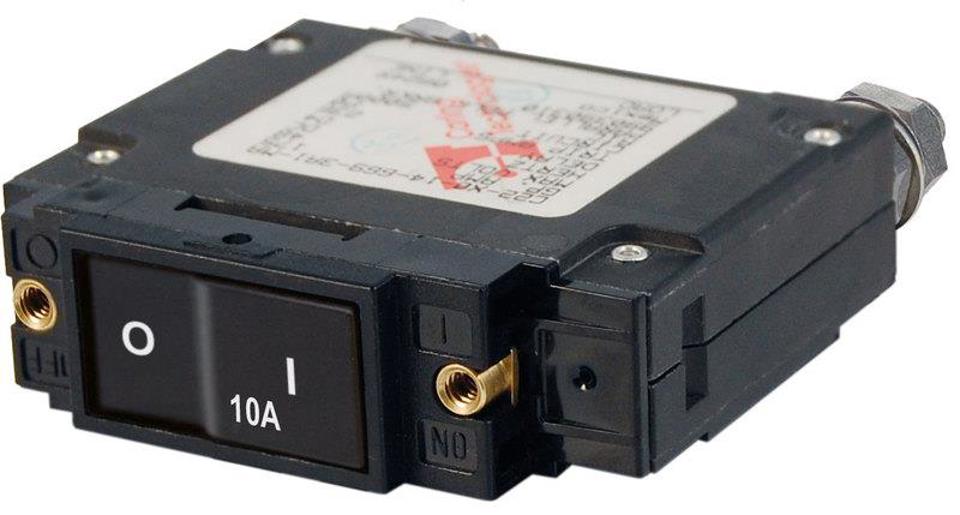

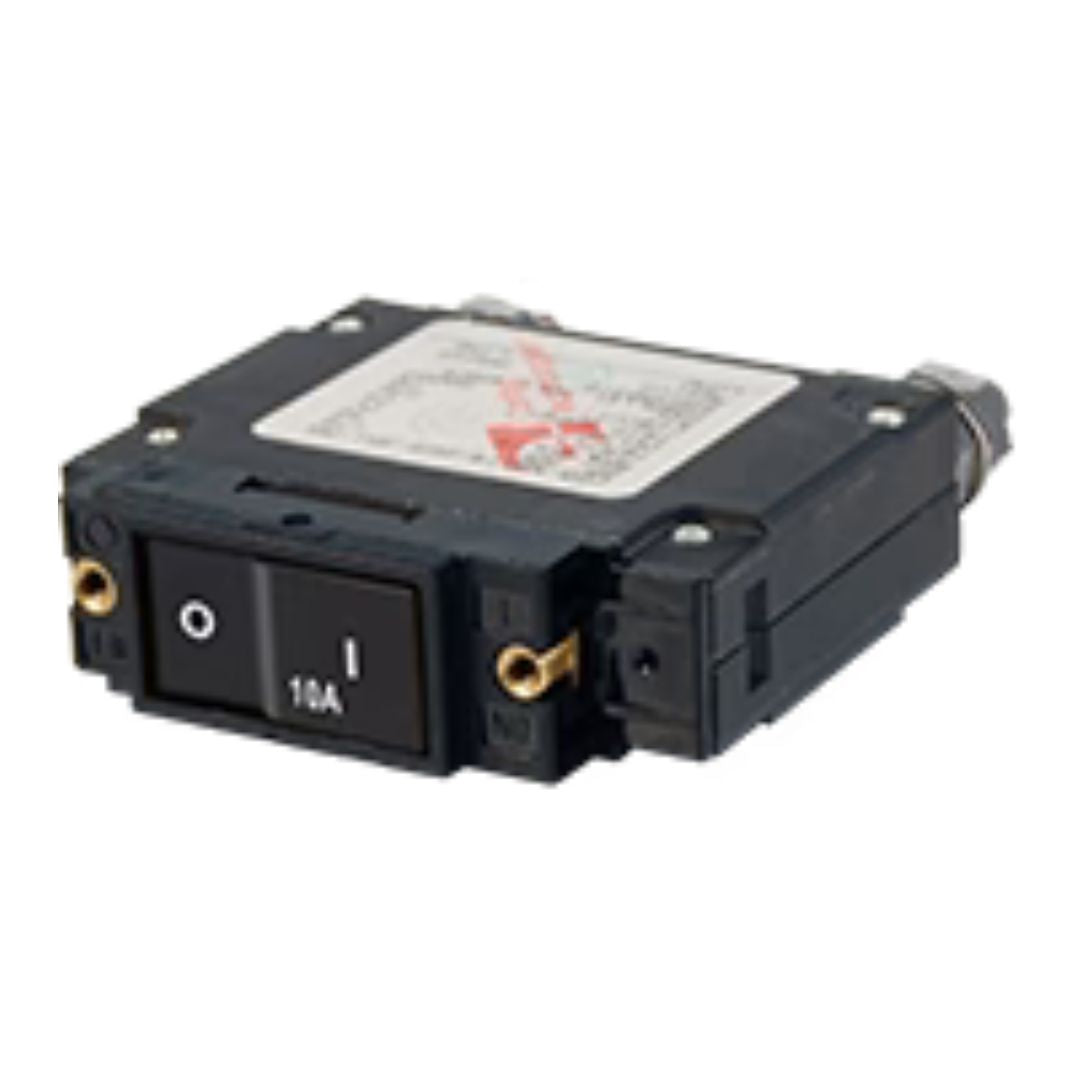

Blue Sea Systems

Low stock: 1 left

• Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
• Color actuator indicates “OFF” position
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• “Trip Free”—cannot be held closed after trip
• Ignition protected—safe for installation aboard gasoline powered boats

Specifications
Amperage	10A AC 10A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC 48V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	3000A @ 120V AC 3500A @ 240V AC 5000A @ 32V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.28lb (0.13 kg)
