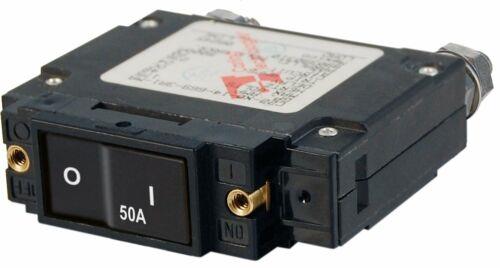

Blue Sea Systems 7546 C-Series 50A Flat Rocker Breaker

Blue Sea Systems C-Series Single-Pole 50A Flat Rocker Circuit Breaker (7546-BSS / 7546)

The Blue Sea Systems 7546-BSS (Catalog SKU: 7546 / 7546B) is a high-amperage C-Series Single-Pole 50A Magnetic-Hydraulic Circuit Breaker featuring a low-profile Flat Rocker Actuator. Engineered for overcurrent protection in main AC/DC panels, windlasses, high-draw marine electronics, and inverter sub-feeds, it combines circuit switching and current protection into a single module.

Designed specifically for flush mounting in Blue Sea Systems 360 Panels and SMS enclosures, the flat rocker actuator lies flush with the panel face in the "ON" position. This eliminates the risk of accidental mechanical snagging or unwanted switching in narrow companionways or busy helm stations. The internal magnetic-hydraulic trip mechanism ensures stable trip calibration unaffected by ambient temperature changes, while an internal "Trip-Free" mechanism guarantees the circuit opens during an overcurrent event even if the rocker is held on.

• Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
• Color actuator indicates “OFF” position
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• “Trip Free”—cannot be held closed after trip
• Ignition protected—safe for installation aboard gasoline powered boats
