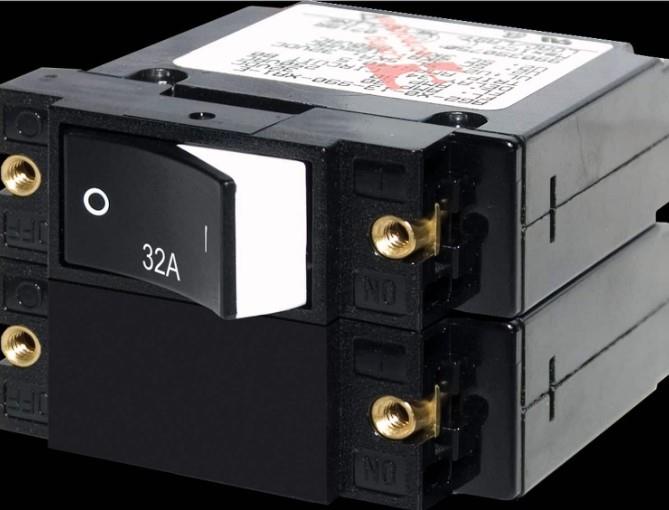

Blue Sea Systems - 7575-BSS - Circuit Breaker, Rocker Rsd A2 32A
Blue Sea Systems - 7575-BSS - Circuit Breaker, Rocker Rsd A2 32A
Low stock: 8 left
Regular price
$ 64.85 USD
Regular price
$ 64.85 USD
Sale price
$ 64.85 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
A-Series Raised Rocker Circuit Breaker - Double Pole 32A
7575- Color actuator indicates “OFF” position
- “Trip Free” design cannot be held “ON” during fault current condition
- International ON/OFF symbols support vertical or horizontal mounting
| Specifications | |
|---|---|
| Amperage | 32A AC 32A DC |
Actuator Style
|
Raised Rocker |
| Poles | 2 |
| Maximum Voltage | 120V AC 240V AC 32V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity
|
3000A @ 240V AC 1500A @ 240V AC[TUV] 5000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.38lb (0.17 kg) |
