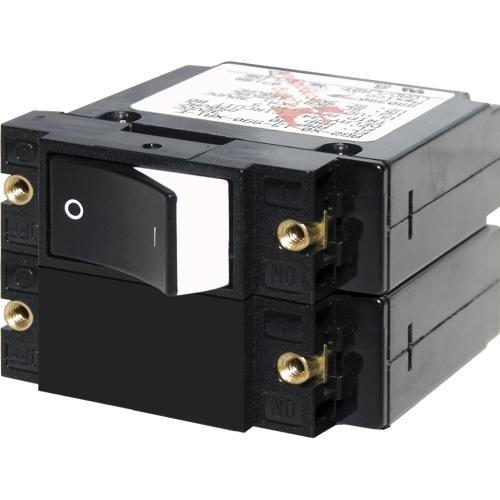

Blue Sea Systems 7575B-BSS 32A Double Pole Raised Rocker Breaker
Blue Sea Systems 7575B-BSS 32A Double Pole Raised Rocker Breaker
Couldn't load pickup availability
Blue Sea Systems A-Series Double Pole 32A Raised Rocker Circuit Breaker
The Blue Sea Systems 7575B-BSS (retail catalog number 7575) is an A-Series 32 Amp double-pole circuit breaker engineered for AC and DC electrical distribution systems. Featuring a raised rocker actuator with a distinct color indicator showing the "OFF" status, this breaker offers simultaneous two-pole switching to safely isolate live/neutral or double-line power conductors.
It utilizes magnetic-hydraulic trip technology, which ensures consistent overload trip accuracy across extreme temperature variations without nuisance tripping from ambient heat. Built with a Trip-Free design, the internal mechanism will automatically trip during a fault condition even if the raised rocker lever is physically held in the "ON" position.
- Color actuator indicates “OFF” position
- “Trip Free” design cannot be held “ON” during fault current condition
- International ON/OFF symbols support vertical or horizontal mounting
| Specifications | |
|---|---|
| Amperage | 32A AC 32A DC |
| Actuator Style | Raised Rocker |
| Poles | 2 |
| Maximum Voltage | 120V AC 240V AC 32V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 3000A @ 240V AC 1500A @ 240V AC[TUV] 5000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.38lb (0.17 kg) |
