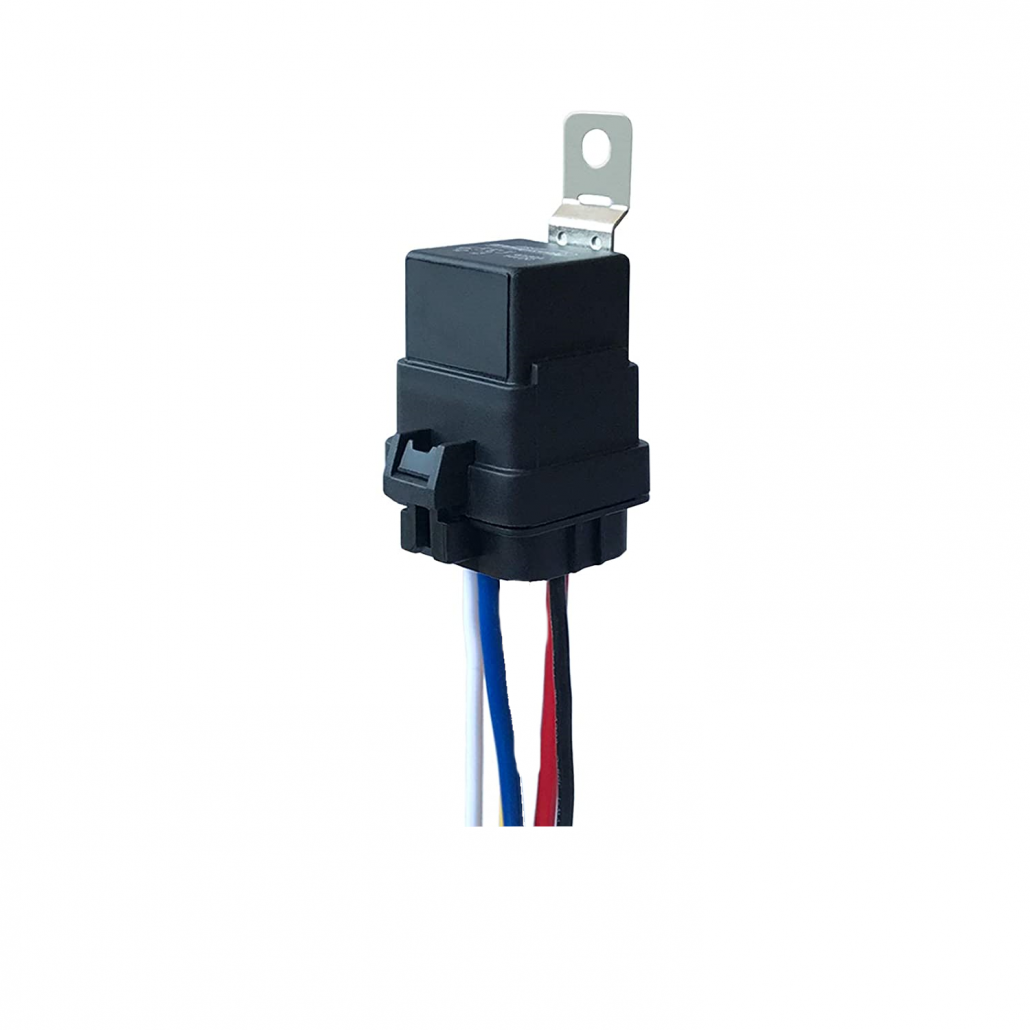

BRNKL WIRED_ACC_DCRLY 12V DC Device Controller

BRNKL 12V DC Device Controller (Bilge & DC Load Expander)

The BRNKL WIRED_ACC_DCRLY is an accessory module designed to convert standard 12V DC positive switching signals into ground-switched digital inputs for the BRNKL primary boat monitoring system. Engineered specifically for monitoring auxiliary bilge pump float switches, high-water alarms, and secondary DC circuits, this module allows boat owners to monitor additional positive-switched equipment without over-volting or misconfiguring the core BRNKL hub's digital input pins.

Up to four (4) WIRED_ACC_DCRLY modules can be connected to a single BRNKL system, enabling discrete monitoring of multiple bilge compartments, pump run-times, or accessory power circuits. The compact, inline form factor simplifies wiring in cramped bilge spaces or behind main DC distribution panels.

Key Features

• Voltage-to-Ground Signal Conversion: Converts +12V DC active signals from float switches or relays into isolated ground inputs compatible with BRNKL digital ports.

• Auxiliary Bilge Pump Integration: Allows direct tracking of secondary and tertiary bilge pump active states and run-time telemetry.

• Scalable System Architecture: Supports up to four (4) DC Device Controllers on a single BRNKL main unit to monitor up to 4 additional switched DC circuits.

• Low Standby Power Draw: Negligible current consumption ensures minimal impact on vessel house/starter battery banks.

• Plug-and-Play Wiring: Pre-configured wire leads simplify connection to existing terminal blocks, float switch leads, and BRNKL input buses.
