773-9042 H07RN-F 3G1.5mm² Flexible Rubber Marine Cable (Per Meter)

H07RN-F 3-Core 1.5mm² Heavy-Duty Flexible Rubber Marine AC Cable (Per Meter)

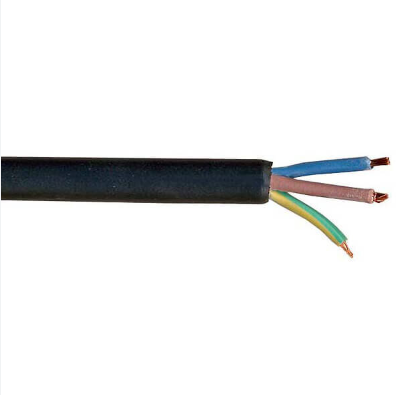

The 773-9042 H07RN-F 3G1.5 is a heavy-duty, 3-core 1.5mm² (16 AWG equivalent) harmonized rubber-sheathed AC power distribution cable engineered for marine shore power feeds, AC distribution sub-panels, onboard generator interconnects, and heavy-duty portable equipment. Rated at 450/750V, it features high-flexibility Class 5 stranded bare copper conductors insulated with Ethylene Propylene Rubber (EPR) and encased in a oil-resistant, flame-retardant Chloroprene/Polychloroprene (CPE) outer sheath.

Designed to withstand continuous mechanical stress, abrasion, ozone, UV exposure, and direct salt-water submersion, the H07RN-F cable profile is recommended under IEC 60092 and ABYC standards for flexible AC marine wiring. The core insulation colors comply with EN 50525-2-21 standards (Brown = Live, Blue = Neutral, Green/Yellow = Earth Ground).

Key Features

• Heavy Rubber Sheath (CPE / Neoprene): Exceptional resistance to mechanical abrasion, tearing, oils, grease, weather, and UV degradation.

• High Flexibility Class 5 Stranding: Fine-stranded copper wires make snake-routing through tight bilges, bulkheads, and engine rooms effortless.

• EPR High-Dielectric Insulation: Maintains structural integrity and prevents thermal degradation under continuous AC load currents.

• Submersible & Weatherproof: IP68/AD8 water-resistance rated for outdoor marine deck use and temporary water immersion.

• Flame Retardant (IEC 60332-1-2): Self-extinguishing jacket properties enhance fire safety on board vessels.
