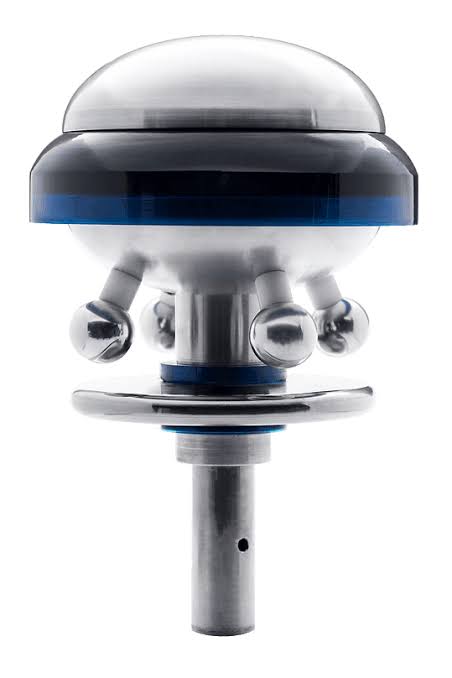

Sertec CMCE 0000019 CMCE 120 Lightning Suppressor 120m Radius Protection

Sertec CMCE 0000019 (CMCE 120) Lightning Suppression System

The Sertec CMCE 0000019 (model designation CMCE 120) is the highest-capacity electro-atmospheric charge de-coupler / lightning protection head in the Sertec CMCE series. It provides an extended protection zone up to a 120 m (393 ft) protection radius — corresponding to a 240 m (787 ft) total protection coverage diameter — designed for large industrial sites, power plants, oil & gas storage facilities, airports, and commercial megastructures.

Operating as a passive charge-neutralizing system, the CMCE 120 continuously drains atmospheric ground-to-cloud potential gradients. By preventing the formation of the upward leader (streamer), it neutralizes lightning formation conditions before an ionization channel can complete, eliminating high-energy current surges into structures, control systems, and sensitive electronics.

Key Features

• Maximum 120 m Protection Radius ( 240 m Diameter): Ultra-wide coverage footprint designed to shield entire industrial campuses or complex marine facilities with a single mast installation.

• 100% Passive & Autonomous: Functions entirely on ambient atmospheric voltage gradients; requires no external electrical power, batteries, or control systems.

• Heavy-Duty Structural Design: Manufactured using high-grade AISI 316 stainless steel and marine-grade anodized aluminum to withstand extreme weather, chemical corrosion, and high wind forces.

• Electromagnetic Safety: Produces no radio frequency (RF) or magnetic interference, ensuring safe operation near radar systems, telemetry equipment, cellular towers, and sensitive SCADA networks.

Specifications
