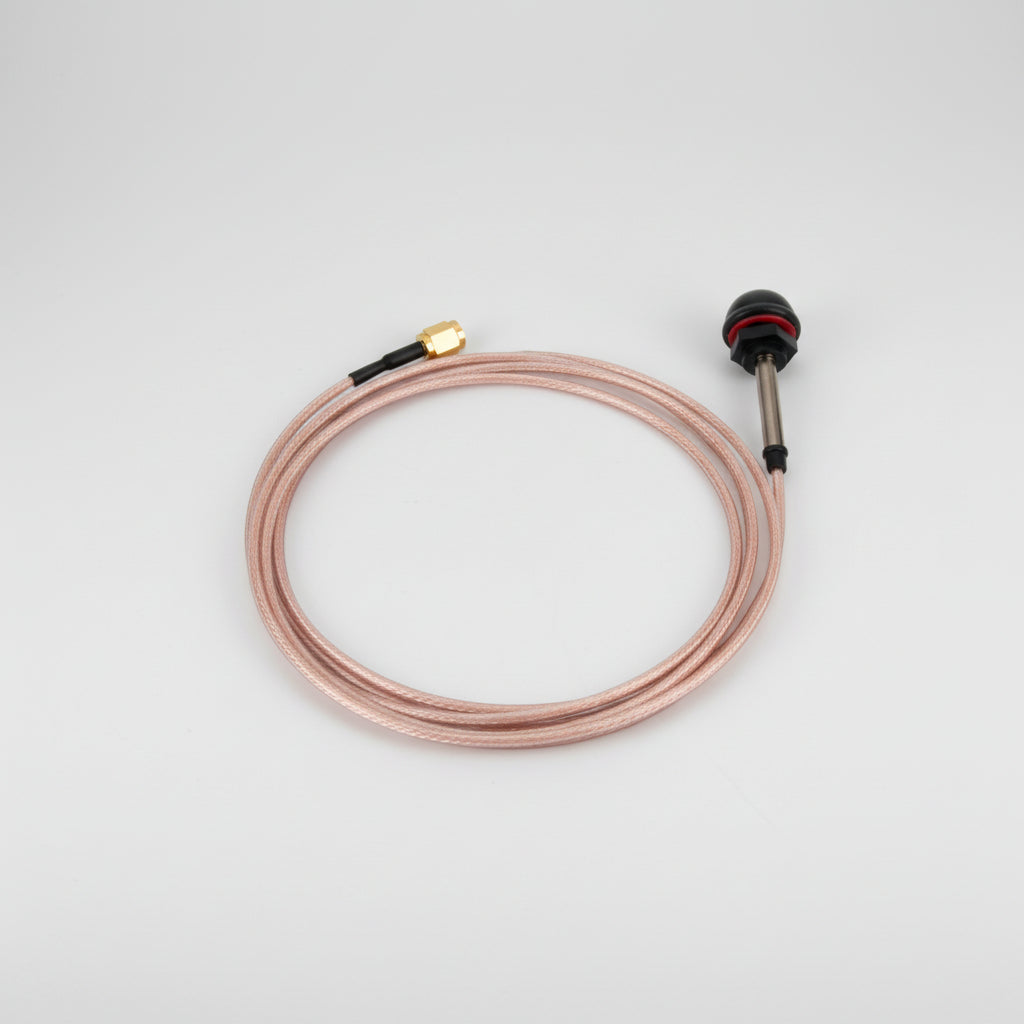

Cyclops Marine ACC-ANT-120mm Gateway Antenna

Cyclops Marine Gateway Extension Antenna - 120mm (ACC-ANT-120mm / AC05)

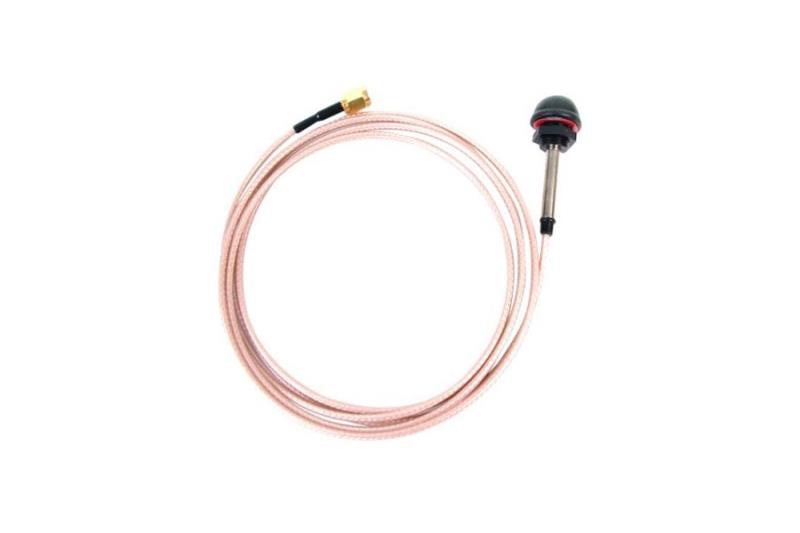

The Cyclops Marine ACC-ANT-120mm (also designated as AC05) is an external Gateway Dome Extension Antenna engineered to optimize wireless RF signal reception between Cyclops Marine smart load sensors (such as Smarttune and Smartlink) and onboard Cyclops Gateway units. Designed specifically for installation on carbon fiber vessels or instances where the Gateway is mounted deep below deck or more than 8 m (26 ft) from load sensors, it bypasses signal-blocking hull materials to ensure continuous, real-time load data transmission.

Featuring a compact 120 mm pigtail lead, the antenna module screws directly onto the primary antenna port of the Cyclops Gateway or integrates with longer extension cables (3 m or 10 m) for on-deck, line-of-sight mounting. Encased in a rugged, marine-grade weatherproof dome housing, the ACC-ANT-120mm protects signal integrity against continuous UV exposure, deck washdown, and harsh offshore conditions.

Key Features

• Carbon Fiber Signal Penetration: Eliminates signal attenuation caused by carbon fiber hulls and bulkheads by enabling line-of-sight antenna placement on deck.

• Extended Sensor Range: Essential for installations where sensors are positioned more than 8 m (26 ft) from the Gateway unit.

• Direct Gateway Compatibility: Threaded connection screws directly onto Cyclops Micro Gateway and Multi Gateway primary antenna ports.

• Compact 120mm Cable Tail: Includes a short 120 mm integrated cable lead for direct attachment or coupling to longer extension cables.

• Marine-Grade Dome Housing: Fully sealed, UV-stabilized weatherproof dome resists salt air, spray, and deck impacts.

Specifications
