Cyclops Marine TS02 smarttune 1/2" Wireless Load Sensor

Cyclops Marine smarttune ½" Wireless Rigging Load Sensor (TS02)

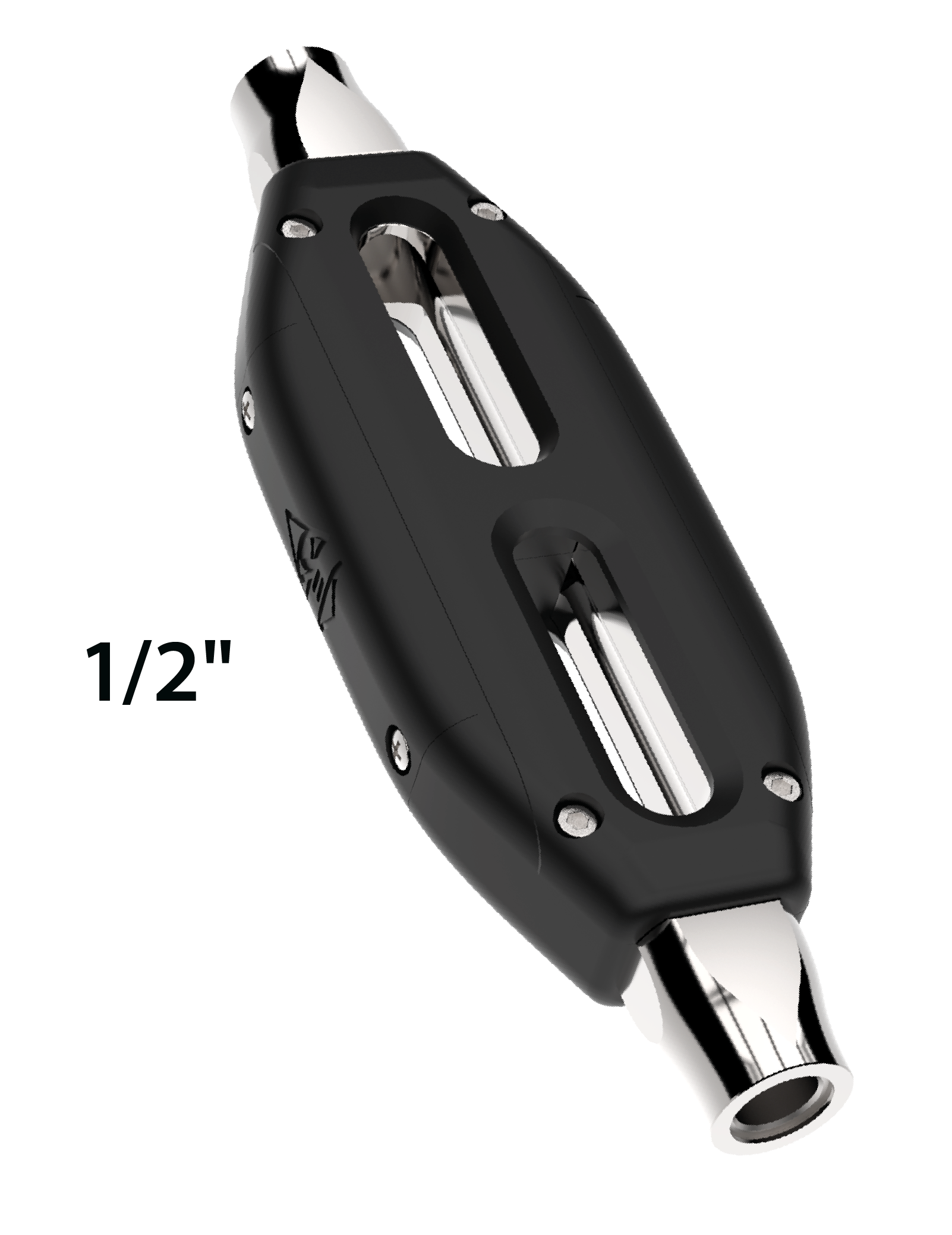

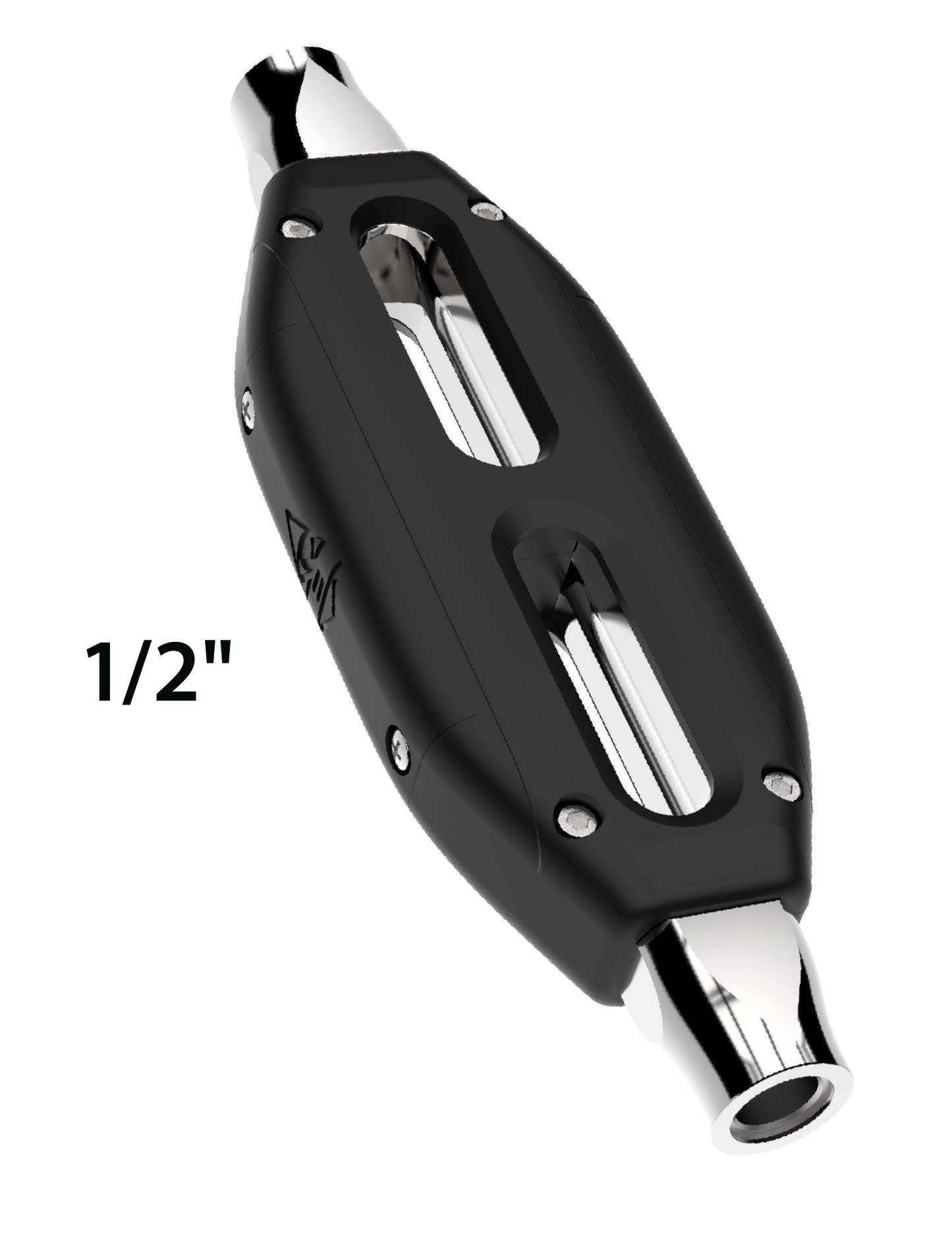

The Cyclops Marine TS02 (smarttune ½") is an advanced, ultra-lightweight Wireless Load-Sensing Turnbuckle Body designed to measure live dynamic tension on sailboat standing rigging. Designed to directly replace the standard barrel body on 1/2 inch (12.5 mm) turnscrews, the TS02 allows sailors to monitor, record, and repeat exact rig tuning settings (such as forestay, backstay, or shroud load) in real time to optimize sail shape and boat speed.

Operating via wireless Bluetooth telemetry, the sensor streams load data directly to the Cyclops smartfittings mobile app, standalone sailing displays (e.g., Vakaros Atlas, Sailmon MAX), or through the optional Cyclops NMEA 2000 Gateway to onboard instrument displays (B&G, Raymarine, Garmin, nke, etc.). Factory calibrated to within ± 1% accuracy, the TS02 features internal wireless charging and a fully sealed waterproof housing designed for harsh marine environments.

Key Features

• Direct Turnbuckle Barrel Replacement: Installs directly onto existing 1/2" male threaded turnbuckle studs without needing to unstep or rewire the rig.

• High-Precision Load Data: Continuous wireless dynamic load monitoring accurate to within ± 1% of maximum working load.

• Broad Instrument Integration: Connects via Bluetooth directly to smartphones, Vakaros, and Sailmon displays, or via Cyclops Gateway to NMEA 2000 bridge networks.

• Submersible Weatherproofing: Built with a rugged, IP67/IP68-rated housing engineered to withstand ocean racing conditions.

• App Logging & Fatigue Monitoring: Records real-time strain history, peak loads, and load cycles to track structural rig fatigue over time.
