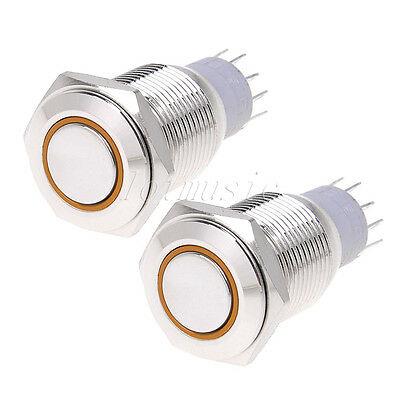

CZone 80-911-0060-00 O 3.3V Orange LED Momentary Push Button

CZone 3.3V Stainless Steel Momentary Push-Button Switch (Orange LED Ring)

The CZone / BEP 80-911-0060-00 O is a specialized 3.3V DC low-voltage momentary (ON)/OFF stainless steel push-button switch featuring an integrated Orange (Amber) LED halo ring. Engineered exclusively for direct connection to CZone digital switching input modules—such as the Switch Control Interface (SCI) or Combination Output Interface (COI)—it acts as a tactile control actuator for triggering digital modes, horn circuits, pumps, or logic system events.

Constructed from marine-grade 316 stainless steel with an IP67 front-panel seal, this switch withstands heavy saltwater washdowns, UV exposure, and environmental humidity on open flybridges and helm consoles. Operating directly on CZone’s 3.3V logic supply voltage, the built-in Orange LED halo ring provides clear night-time illumination or circuit-active feedback without needing external voltage-dropping resistors.

Key Features

• Direct 3.3V CZone Logic Interface: Designed specifically for CZone Switch Control Interfaces (SCI), eliminating the need for inline resistors or external power drivers.

• IP67 Sealed 316 Stainless Steel: Marine-grade 316 stainless body with an internal sealing O-ring protects against saltwater corrosion and direct water jets.

• Integrated Orange (Amber) LED Halo: Emits a distinct amber/orange backlight glow for immediate visual recognition of mode states or fault indications.

• Standard 19 mm Cutout: Fits standard ∅ 19 mm (0.75 in) helm panel cutouts and secures via a threaded rear retaining nut.

• Plug-and-Play Digital Integration: Connects cleanly into CZone wire harnesses to activate custom user-configured digital network modes.

Specifications
