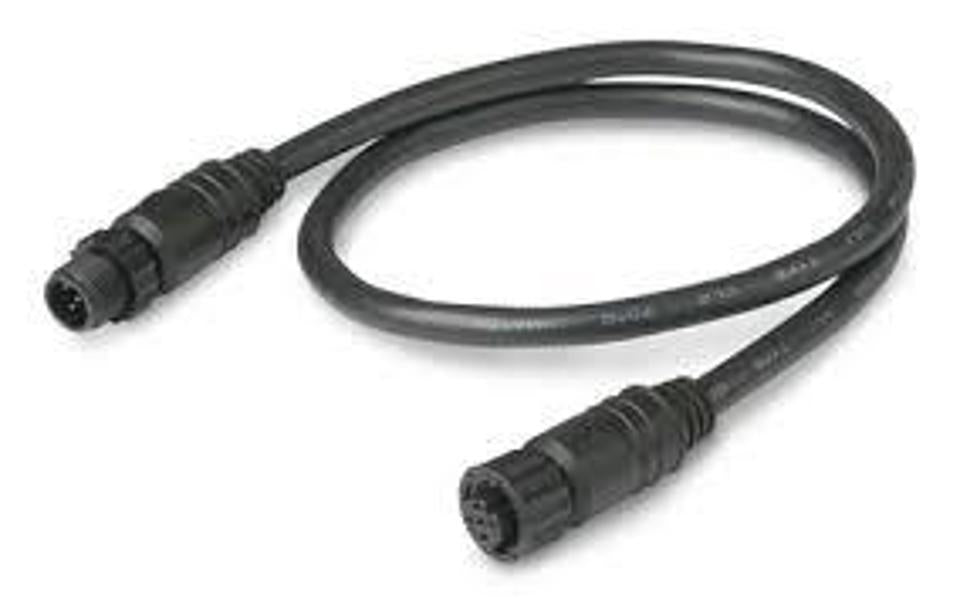

CZone 80-911-0115-00 Ancor NMEA 2000 Drop Cable 5m

CZone 80-911-0115-00 Ancor NMEA 2000 Micro Drop Cable (5 Meters / 16.4 ft)

The CZone 80-911-0115-00 (Ancor NMEA 2000 Drop Cable) is a 5-m (16.4 ft) marine-grade NMEA 2000 Micro-C network drop cable designed to connect individual CZone digital switching modules, multifunction displays (MFDs), and NMEA 2000 transducers directly to the main network backbone. Manufactured under the Navico Group marine networking hardware family, this cable provides data telemetry and low-voltage DC power distribution across CAN-bus marine networks.

Constructed with high-flex tinned copper conductors, the cable features 22 AWG power conductors and 24 AWG twisted-pair data lines wrapped in a 100% foil shield with an overall braid screen to eliminate crosstalk and electromagnetic interference (EMI). Fitted with factory-molded 5-pin Micro-C male and female threaded coupling nuts, it maintains an IP67 waterproof seal when mated.

Key Features

• NMEA 2000 Approved: Fully compliant with NMEA 2000 network standards for multi-brand marine electronics compatibility.

• Dual-Shielded EMI Rejection: Individual foil-shielded signal pairs plus an overall tinned copper braid shield resist engine, alternator, and RF noise.

• Corrosion-Resistant Tinned Copper: High-strand tinned copper wire prevents internal conductor oxidation caused by marine moisture exposure.

• IP67 Waterproof Coupling: Molded Micro-C 5-pin male-to-female threaded connectors protect against saltwater ingress and vibration-induced disconnections.

Specifications
