CZone 80-911-0131-00 COI Control 1 Deutsch Connector Kit

CZone 80-911-0131-00 COI / Control 1 Deutsch Connector Kit

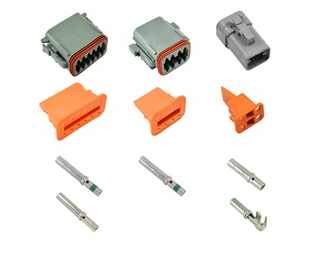

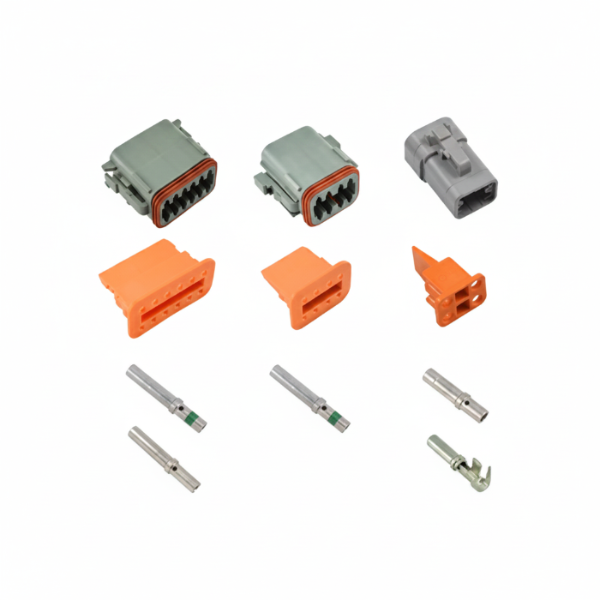

The CZone 80-911-0131-00 is an OEM field-serviceable connector plug kit designed for wiring termination onto the CZone Combination Output Interface (COI) and Control 1 digital switching modules. This kit provides the complete set of heavy-duty, IP67-rated TE Connectivity / Deutsch DT and DTP series connectors required to establish secure DC power inputs, switched outputs, and analog/digital sensor inputs between the vessel wiring loom and the interface hardware.

Engineered to endure severe high-vibration marine environments, each thermoplastic connector body utilizes silicone wire seals, secondary wedge-locks, and locking latches to seal against moisture ingress, salt spray, and fuel exposure. The kit includes all necessary male and female connector housings, secondary wedgelocks, and crimp pin/socket contacts matched to the current ratings of the COI and Control 1 pinouts.

Key Features

• Complete Harness Termination Kit: Contains all requisite Deutsch connector housings, wedgelocks, and crimp contacts to wire a full COI or Control 1 module installation.

• IP67 Waterproof Environmental Seal: Integrated rear wire grommets and perimeter seals prevent moisture, bilge water, and corrosion from degrading contact pins.

• Vibration-Proof Retention: Positive snap-lock latching mechanisms and secondary wedgelocks prevent wire terminal back-out under heavy hull pounding.

• Marine-Grade Current Handling: High-conductivity solid and stamped contacts support both high-current load circuits and low-voltage signal/analog sensor lines.

Specifications
