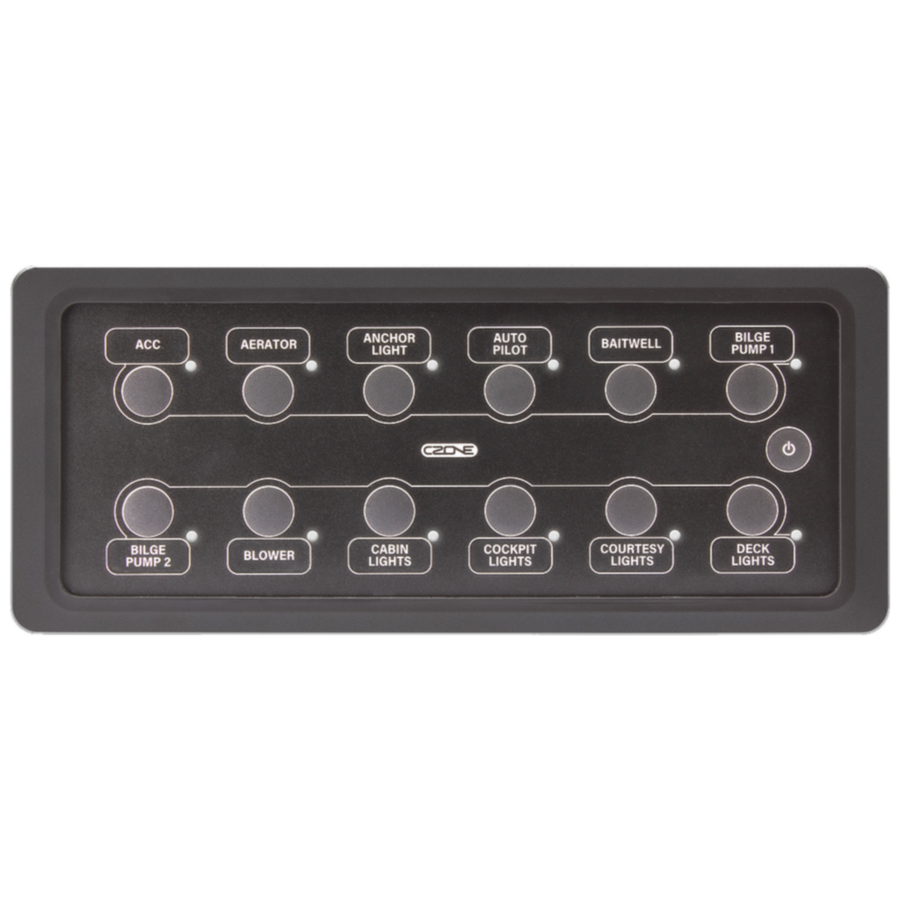

CZone 80-911-0165-00 Waterproof Keypad 6x2 Landscape

CZone 80-911-0165-00 Waterproof Keypad 6x2 (Landscape)

The CZone 80-911-0165-00 is an IPX7-rated 12-button (6x2 matrix) landscape digital switching keypad designed for wide-format helm dashes, overhead control consoles, flybridges, and open deck applications. Serving as a central tactile control interface within the CZone digital switching network, this keypad provides direct manual control over up to twelve independent vessel electrical circuits or automated CZone modes—including lighting zones, pumps, blowers, and navigation systems.

Featuring a low-profile horizontal design, the keypad supports flexible installation methods including standard front panel mounting, flush rear glass-bridge installation, or surface mounting. It integrates dimmable RGB LED backlighting behind customizable icon inserts alongside individual multi-color LED status rings that deliver real-time visual feedback for circuit activation and blown-fuse fault alerts. Communicating natively over NMEA 2000, it draws operating power directly from the CAN bus.

Key Features

• Wide-Format 12-Button Array: Consolidates control of twelve discrete electrical circuits into a low-profile, horizontal footprint ideal for dash installations.

• IPX7 Submersible Waterproof Protection: Molded silicone membrane and sealed housing protect internal electronics against temporary water immersion and high-pressure washdowns.

• Flexible Mounting Configuration: Supports front mounting, flush rear-mount installation for glass-dash aesthetics, or surface bracket mounting.

• Dimmable RGB Backlighting & Status Indication: Adjustable RGB key backlighting with multi-color status rings around each button for instant feedback on active loads or circuit faults.

• Single-Cable NMEA 2000 Connection: Plugs directly into the vessel CAN-bus network via a standard Micro-C drop cable, eliminating behind-dash wire clutter.

• Interchangeable Icon Inserts: Compatible with standard CZone label sheets for personalized circuit identification.

Specifications
