CZone 80-911-0171-00 2 Module Smart Harness 3m

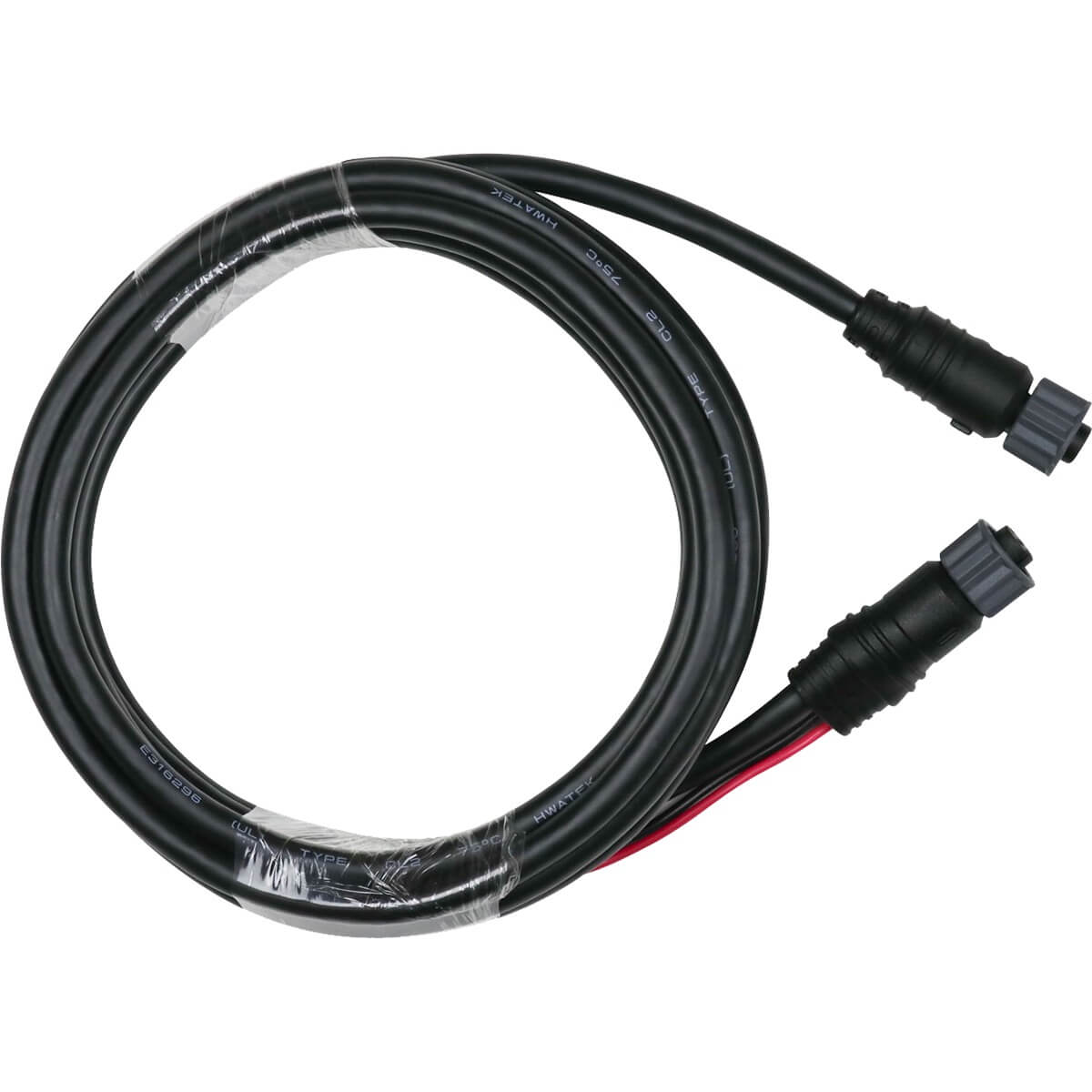

CZone 80-911-0171-00 2 Module Smart Harness (3 Meters / 9.8 ft)

The CZone 80-911-0171-00 is a 3-meter (9.8 ft) 2-Module Smart Harness designed to establish a simplified, self-contained CZone digital switching network between two CZone modules (such as a Combination Output Interface COI and a Touch display or keypad) without requiring a full NMEA 2000 backbone installation.

By integrating built-in 120 Ω line termination resistors directly within the harness connectors, the Smart Harness replaces traditional backbone tees, drop cables, and external terminators. It carries both CAN-bus differential data and low-voltage 12V DC control power between two network nodes, drastically reducing component count, install time, and space requirements in smaller vessel electronics systems.

Key Features

• Built-in Network Termination: Eliminates the need for external 120 Ω NMEA 2000 terminators by embedding impedance matching inside the connectors.

• Simplified Standalone Network: Connects 2 CZone modules together directly without setting up a traditional multi-tee NMEA 2000 backbone.

• Plug-and-Play Installation: Pre-terminated Micro-C connectors reduce wiring time and potential points of connection failure behind the dash.

• Rugged Marine-Grade Construction: Fully shielded tinned copper conductors encased in a UV- and oil-resistant jacket with IP67 sealed connectors.

Specifications
