CZone 80-911-0172-00 3 Module Smart Harness 5m

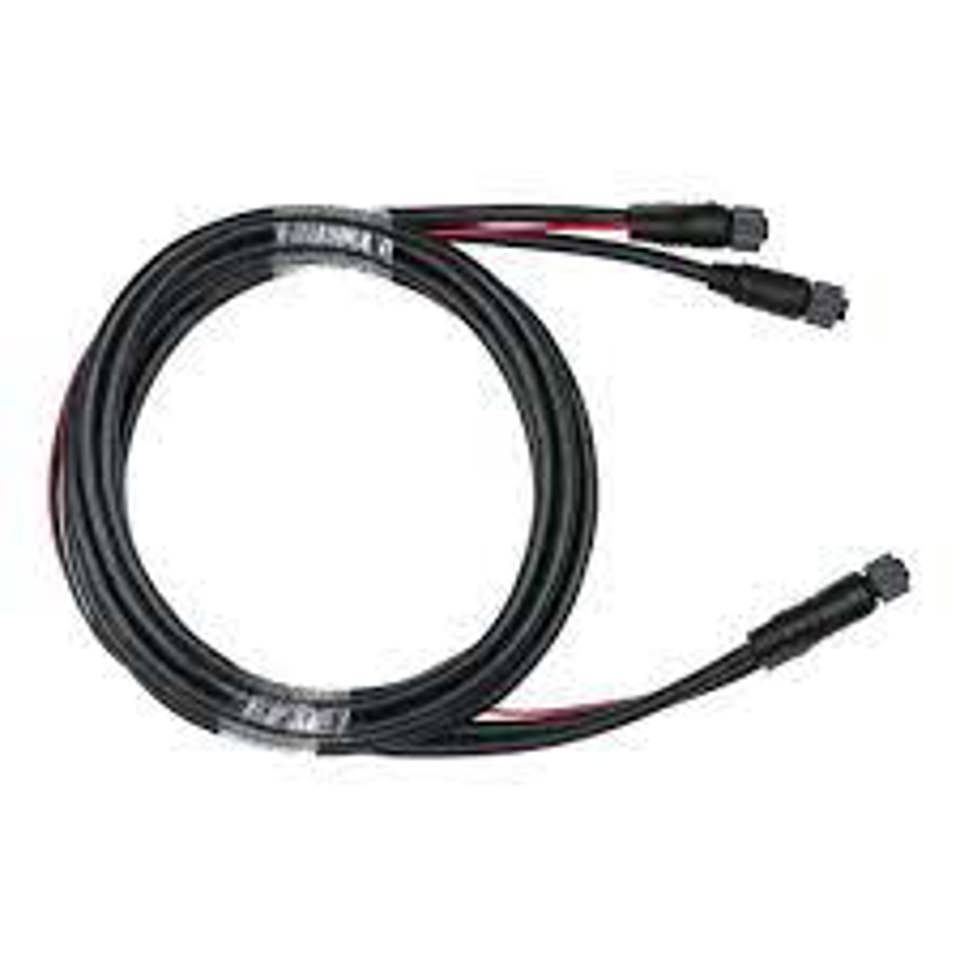

CZone 80-911-0172-00 3 Module Smart Harness (5 Meters / 16.4 ft)

The CZone 80-911-0172-00 is a 5-m (16.4 ft) 3-Module Smart Harness engineered to establish a self-contained, high-reliability CZone digital switching network interconnecting up to three CZone devices (such as a Combination Output Interface COI, a Touch display screen, and a waterproof keypad) without setting up a traditional multi-tee NMEA 2000 backbone.

Featuring built-in 120 Ω line termination resistors embedded directly at the ends of the harness assembly, the Smart Harness replaces separate backbone cables, T-connectors, and end terminators. It carries both CAN-bus differential data (CAN_H / CAN_L) and low-voltage 12V DC control power across all three drop legs, providing a compact, plug-and-play network solution for standalone marine power distribution systems.

Key Features

• Integrated 120 Ω Termination: Internal end-of-line termination resistors eliminate the need for external NMEA 2000 line terminators.

• Connects 3 Devices Directly: Consolidates wiring for three CZone modules into a single harness trunk, removing the need for 3 separate T-connectors and drop cables.

• Compact Plug-and-Play Setup: Drastically speeds up installation time and eliminates connection failure points behind congested dashboards.

• Double-Shielded Construction: Individual foil screening around data pairs plus an overall tinned copper braid shield prevent interference from alternators and VHF equipment.

Specifications
