CZone 80-911-0179-00 Contact 6 Plus Connector & Seal Kit

CZone 80-911-0179-00 Contact 6 Plus Connector & Seal Kit

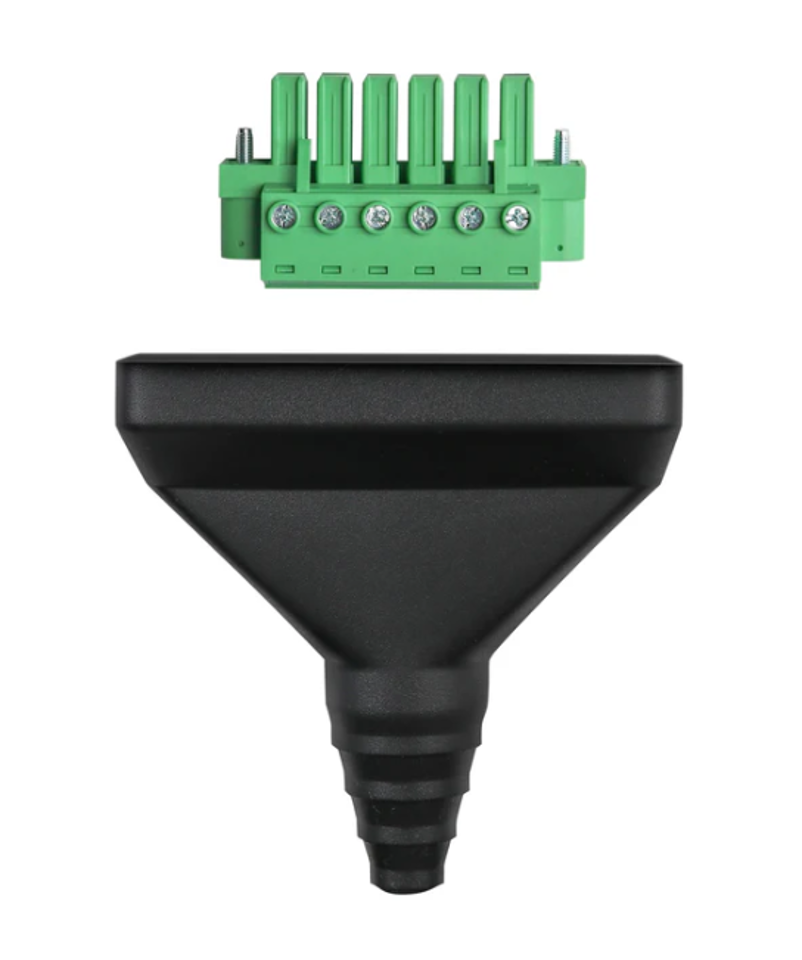

The CZone 80-911-0179-00 is an OEM field-serviceable connector plug and sealing kit engineered specifically for the CZone Contact 6 Plus digital switching module. This kit provides the complete set of heavy-duty terminal plugs, wire seals, and protective boot assemblies required to wire up or re-terminate DC power inputs, output load circuits, and control signals on a Contact 6 Plus module.

Designed to preserve the IPx5 water-ingress protection rating of the Contact 6 Plus hardware, each connector housing uses high-grade silicone perimeter seals and cable boots to isolate wire connections from bilge moisture, saltwater spray, and fuel vapors. The kit includes high-conductivity crimp terminals designed to reliably support up to 15 A continuous load current per output channel under high-vibration marine operating conditions.

Key Features

• Complete Field Termination Set: Supplies all main terminal plugs, crimp contacts, and sealing boots needed to wire a Contact 6 Plus interface.

• Preserves Module Ingress Seal: Custom-molded silicone wire seals maintain the module's IPx5 moisture and dust resistance.

• High-Current Handling Contacts: Precision-stamped tin-plated copper contacts support high continuous current loads without thermal breakdown.

• Vibration-Proof Locking Mechanism: Positive snap-lock retention latches prevent connector detachment due to hull pounding and engine vibration.

Specifications
