Daniamant's EchoPilot 3D Forward Looking Sonar

3D Forward Looking Sonar is Echopilot's newest patented technological advancement which gives displays a three dimensional visualisation of the underwater scene ahead of the boat. The sonar shows underwater seascape and potential risks ahead with realistic real time images of what is actually ahead of the boat in order to prevent any foreseeable damage or to your boat.

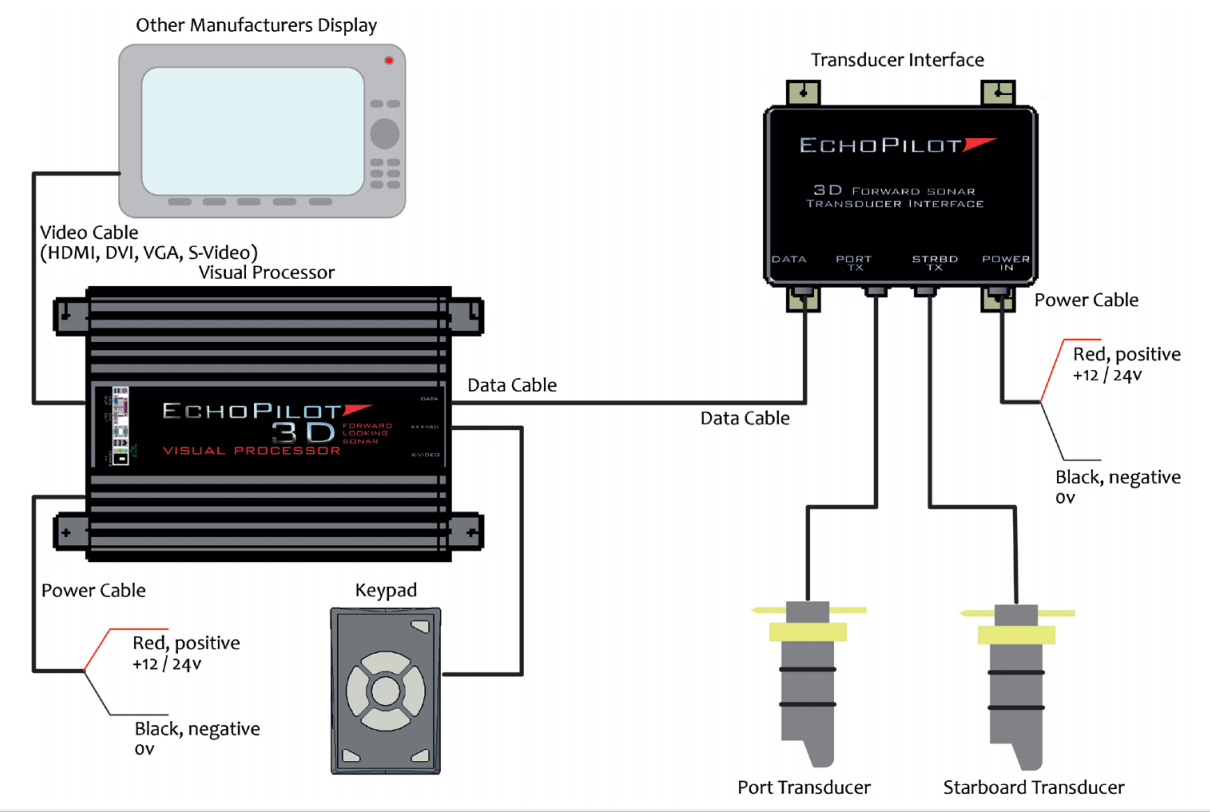

Twin retractable transducers ensure complete forward coverage whatever the hull form. This system has a 60 degree horizontal viewing angle, 90 degree vertical viewing angle and a 200 metre frontal range





The constant 1 second updates dependent on range settings makes it a real time system with full colour picture display.

Specifications

• Real time system - refreshes every 1 second
• 200m forward range, 100m depth range
• 200 kHz Operating frequency
• Twin retractable 5” transducers w/ bronze housing standard
• Twin retractable 10” transducers w/ bronze housing standard (Optional)
• Aluminium or steel skin fitting (Optional)
• Video output: HDMI and VGA
• Color coded depth display
• Ethernet style transducer connection
• 90° Vertical angle Beam
• 60° Horizontal angle Beam
• 12/24 Volt DC
• Full HD 1080 compatibility

DOWNLOADS

 Instruction Manual
 5" Skin Fitting Drawing
 10" Skin Fitting Drawing
 Visual Processor Improvements

Product number

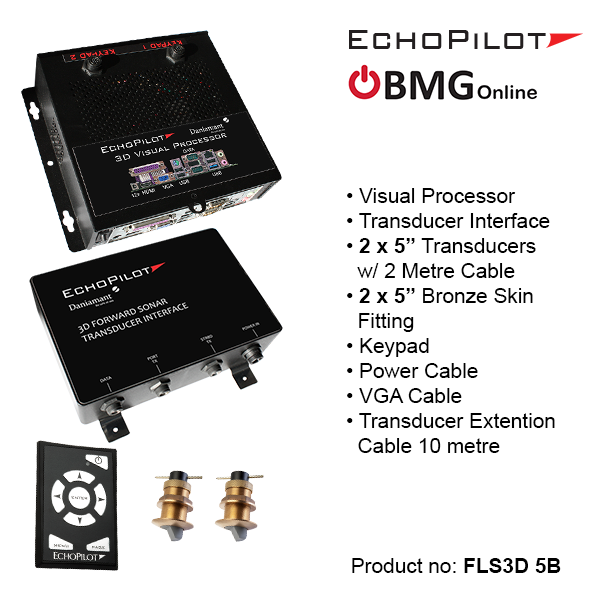

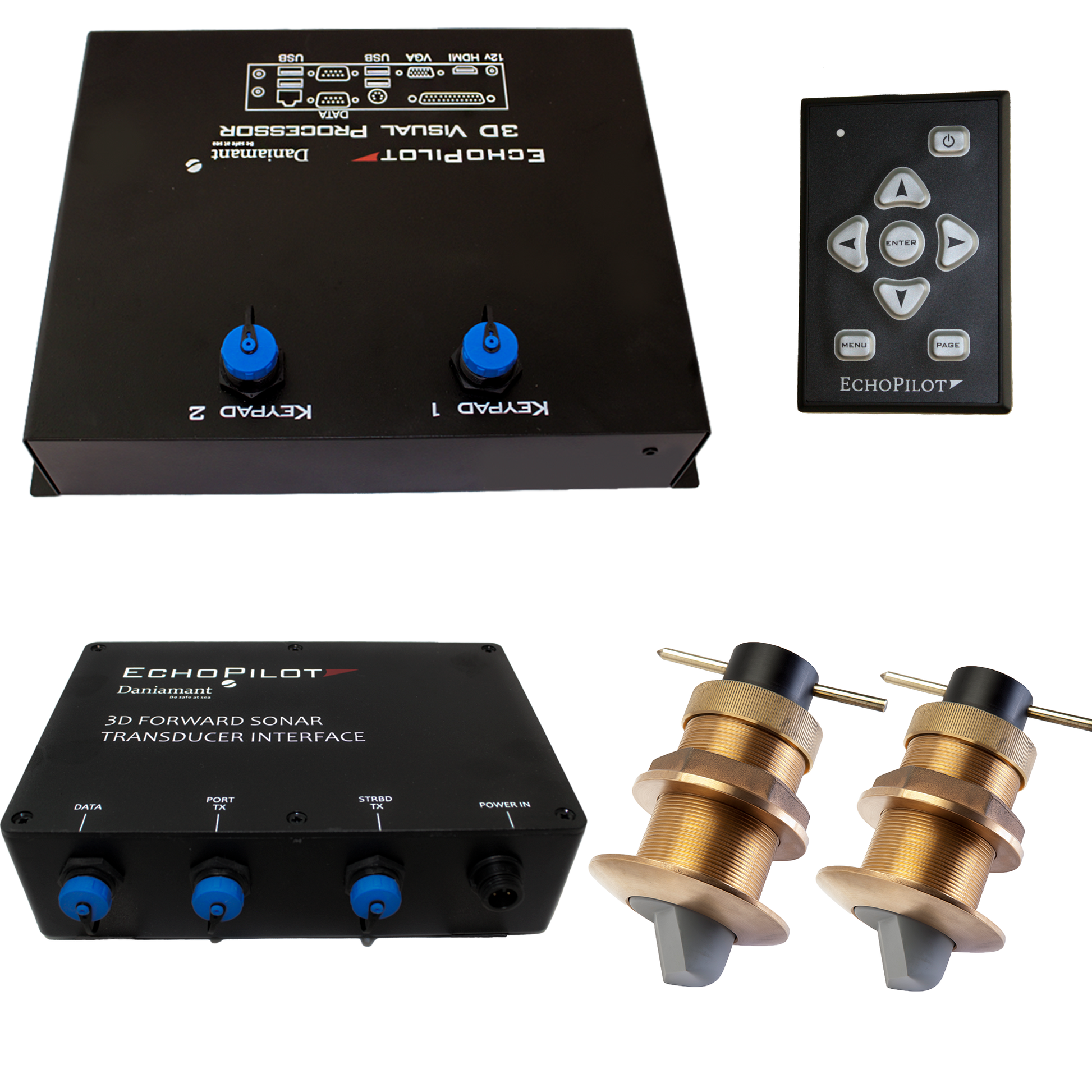

FLS3D 5B
Includes:

• 1x3D Keypad
• 1x3D processor
• 1x3D interface
• 2x5” Transducers 2 metre cable
• 2xSkin Fitting Bronze 5”
• Power cable
• VGA cable
• 10 metre transducer extension cable

FLS3D 10B
Includes:

• 1x3D Keypad
• 1x3D processor
• 1x3D interface
• 2x10” Transducers 2 metre cable
• 2xSkin Fitting Bronze 10”
• Power cable
• VGA cable
• 10 metre transducer extension cable

FLS3D 5S
Includes:

• 1x3D Keypad
• 1x3D processor
• 1x3D interface
• 2x5” Transducers 2 metre cable
• 2xSkin Fitting Steel 5”
• Power cable
• VGA cable
• 10 metre transducer extension cable

FLS3D 10S
Includes:

• 1x3D Keypad
• 1x3D processor
• 1x3D interface
• 2x10” Transducers 2 metre cable
• 2xSkin Fitting Steel 10”
• Power cable
• VGA cable
• 10 metre transducer extension cable

FLS3D 5A
Includes:

• 1x3D Keypad
• 1x3D processor
• 1x3D interface
• 2x5” Transducers 2 metre cable
• 2xSkin Fitting Aluminium 5”
• Power cable
• VGA cable
• 10 metre transducer extension cable

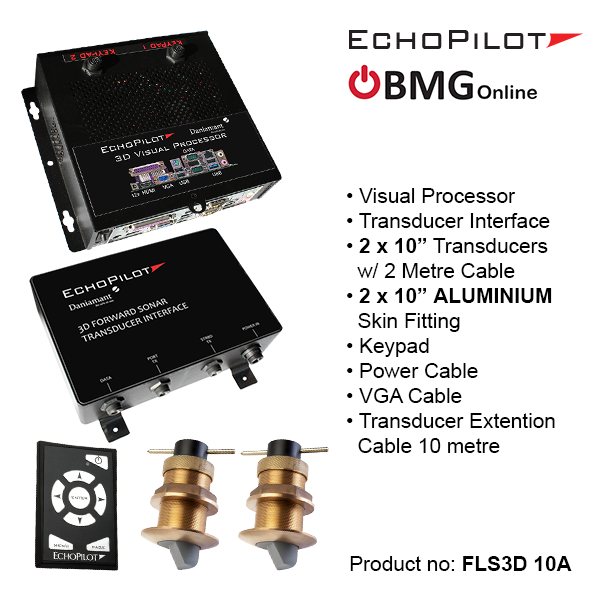

FLS3D 10A
Includes:

• 1x3D Keypad
• 1x3D processor
• 1x3D interface
• 2x10” Transducers 2 metre cable
• 2xSkin Fitting Aluminium 10”
• Power cable
• VGA cable
• 10 metre transducer extension cable
