Fischer Panda 21.02.05.004H RE0724 Battery Monitor

Fischer Panda RE0724 12V/24V/48V Battery Monitor (21.02.05.004H)

The Fischer Panda 21.02.05.004H (Model RE0724) is a precision digital DC battery monitoring display unit designed to track voltage, charge status, and power parameters across multi-voltage battery banks (12V, 24V, and 48V DC). Engineered for marine generators, hybrid electric drives, and remote mobile power systems, it provides real-time state-of-charge tracking to prevent over-discharge and safeguard battery life.

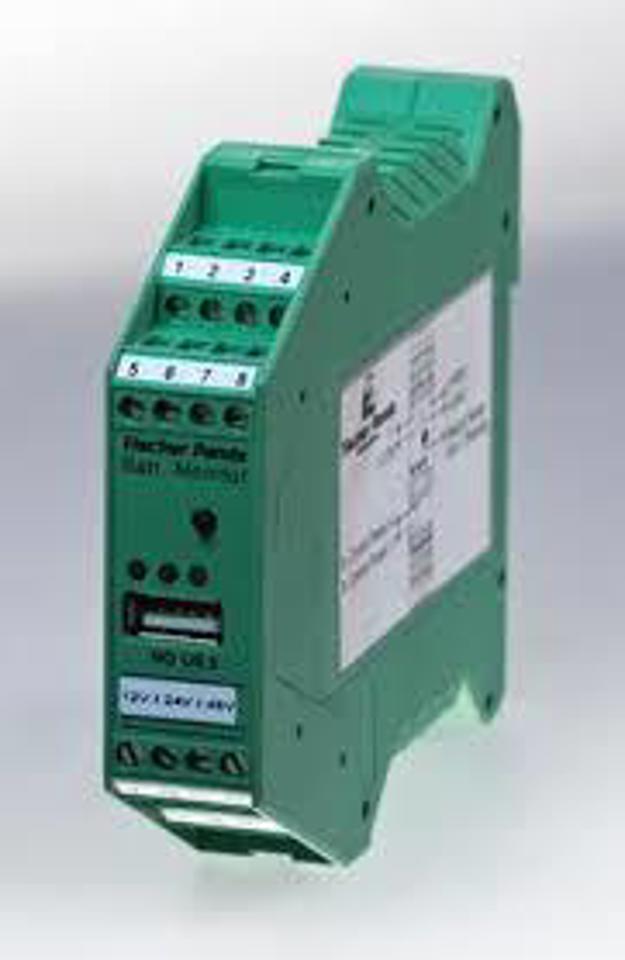

This Fischer Panda battery monitor module is an industrial-grade electrical measurement device designed for precise DC voltage tracking. Constructed inside a slim, green, flame-retardant polyamide housing, it features a standardized base meant for secure integration onto 35mm DIN rails within electrical control lockers or engine bay junction boxes

Key Features

• Multi-Voltage Compatibility: Supports 12V, 24V, and 48V electrical configurations, allowing it to adapt to standard marine, RV, and hybrid vehicle power systems.
• DIN Rail Mounting Housing: Built within a compact, green modular enclosure designed for quick securement onto a standard 35mm DIN rail within control panels.
• Generator Integration Capability: Functions primarily alongside Fischer Panda digital control systems (such as fpControl or iControl modules) to monitor DC voltage thresholds.
• Automatic Start Signaling: Transmits automated signal outputs to auxiliary hardware. If real-time battery voltage drops below user-defined configurations, it triggers a standby marine generator to cycle on and top up the connected bank.
